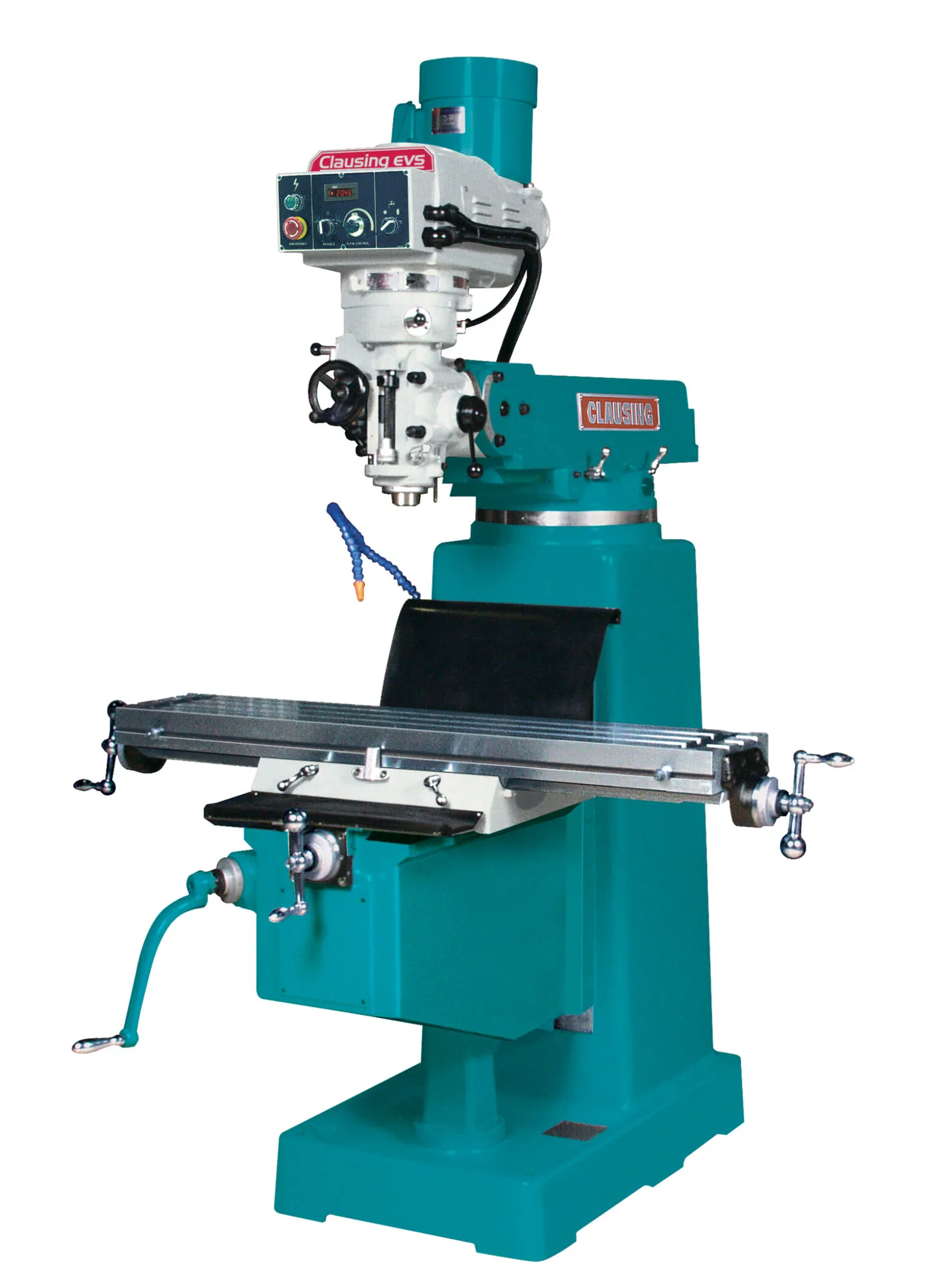

Clausing 500EVS Vertical Knee Mill, 11″ x 58″ Table, 5 HP – NEW

Clausing 500EVS Vertical Knee Mill, 11″ x 58″ Table, 5 HP – NEW

Standard Features…
Quick and accurate rpm setting
Convenient, head mounted, easy to use control panel
LCD spindle speed display
Up to 4 hp spindle motor standard
Spindle brake with auto power off
Totally enclosed electric’s with Yaskawa A.C. inverter variable speed drive
Carbon steel, hardened and ground, chrome plated quill
Coolant system
Up to 11″ x 58″ table size
Meehanite castings for superior rigidity
Hardened and ground table with 3 ground T-slots
Double nuts for easy backlash adjustment
Up to 38.2″ X axis travel, 16″ Y axis travel,17.7″ knee travel and 5″ quill travel
All ways are hardened and ground with Turcite B coating on X and Y axis ways for wear resistance and smooth operation
Specifications
MODEL
500EVS
TABLE
  Table Size
11″ x 58″ (254 x 11473mm)
  No. of T-slots
3
  T-slot width
.63″ (16mm)
  T-slot center distance
2.48″ (63mm)
TRAVELS
  X axis, longitudinal
38.2″ (970mm)
  Y axis, cross
16″ (406mm)
  Z axis, knee
17.7″ (450mm)
  Ram travel
22″ (559mm)
  Ram swivel
360°
  Spindle to column
5.3″-27.2″ (135 – 691mm)
  Spindle nose to table
1.57″-19.2″ (40 – 489mm)
SPINDLE HEAD
  Spindle drive motor
4 hp (3 kw)
  Spindle speed range
50-5000 rpm
  Spindle taper
R-8 or ISO 30
  Quill travel
5″ (127mm)
  Quill diameter
3.38″ (83mm)
  Quill feed – in/rev   (mm/rev)
.00157″/.00315″/.006″ (.0.04″/.08″/.152)
  Head tilt (front or back)
45°
  Head tilt (left or right)
90°
DIMENSIONS AND WEIGHTS
  Column turret diameter
16.54″ (420mm)
  Knee width
15.35″ (390mm)
  Knee bearing length
19.69″ (500mm)
  Saddle length
25.59″ (650mm)
  Table bearing length
11.02″ (280mm)
  Ram/turret bearing   length
17.72″ (450mm)
  Machine weight
3,300 lbs. (1497 kg)
  Shipping weight
3,700 lbs. (1678 kg)
MODEL
500EVS
A Height
90.6″(2300mm)
B Depth w/ram travel
82.7″(2100mm)
C Width w/table travel
110″(2795mm)
D Width
74″(1880mm)
E Base depth
44″(1118mm)
F Base width
25″(635mm)
G Spindle to column
5.3″-27.2″(135-690mm)
H Spindle to table
1.57″-19.2″(40-488mm)
I Head tilt
90° right or left
