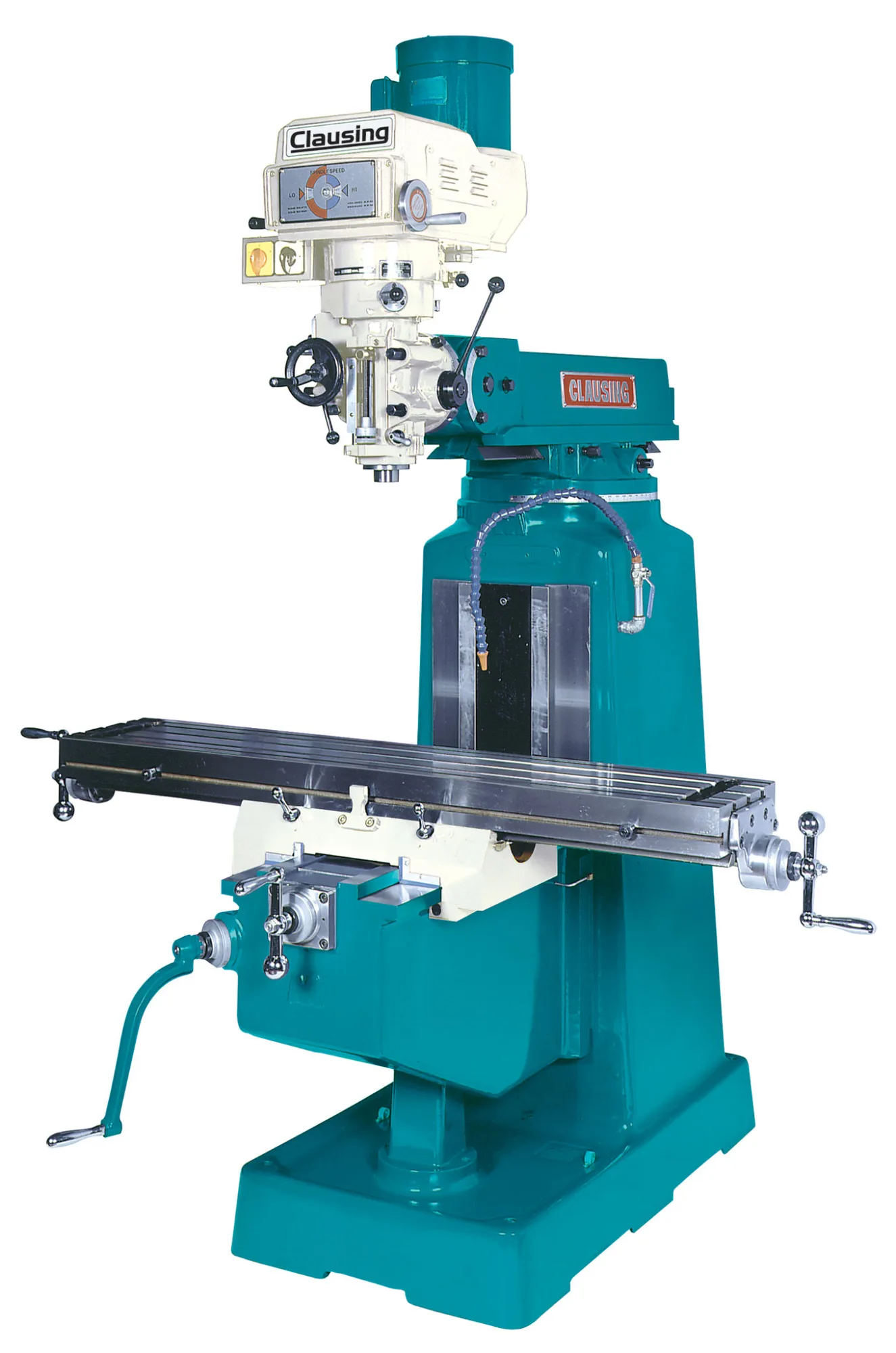

Clausing 3VS Vertical Knee Mill, 10″ x 54″ Table, 3 HP – NEW

Clausing 3VS Vertical Knee Mill, 10″ x 54″ Table, 3 HP – NEW

Standard Features…
Meehanite Castings for superior rigidity and wear resistance
Hardened & Ground X,Y & Z Ways
X/Y ways coated with Turcite B
Column & Knee Way Covers
T-slots are ground to provide reference edge for positioning your workpiece
Hardened & Ground Table Surface
Hardened & Ground Spindle
Chromed & Ground Quill
Chromed X, Y & Z Leadscrews
Double Nut Leadscrew for backlash compensation
ABEC 7/CP4 Spindle Bearings
Coolant System w/Pump & Switch
Flexible Segmented Coolant Nozzle
Chromed Y Screw Covers and 0ne-piece Wipers
7/16″ Imperial Drawbar (2VS, 3VS )
M16 Metric Drawbar w/lSO 40 Spindle (4VSQ)
3 hp AC Motor (2VS & 3VS)
5 hp AC Motor (4VSQ)
AC Rapid Vertical Drive (4VSQ)
Variable Speed Drive
Articulating Head for Compound Angles
Worm gear angular positioning of head in two directions
Lever-operated manual rapid quill movement
Handwheel for fine quill feed
Adjustable automatic feed disengagement for quill feed
Micrometer depth stop
Reversing switch for clockwise or counter clockwise operation
R-8 or lSO 30 Spindle (2VS & 3VS)
ISO 40 Spindle (4VSQ)
Spindle Brake (Hand operated)
One-shot lubrication
Tool Kit, Test and Accuracy Chart
Operations Manual/Parts List
Knee Assist on (4VSQ)
Models
3VS
Table & Ways
Table Size
10″ x 54″ (254x1372mm)
No. of T-Slots
3
T-Slot Width
5/8″ (16mm)
T-Slot Center Distance
2.48″ (63mm)
Table Ways
Dovetail
Knee Ways
Square
Column Ways
Dovetail
Travels
X Longitudinal
36″ (915mm)
Y Cross
15.74″ (400mm)
Knee
17.4″ (450mm)
Ram
20.5″ (520mm)
Motors & Spindle
Spindle Motor
3 hp
Amp. Draw 208v.
10
Amp. Draw 230v.
10
Amp. Draw 460v.
5
Variable Spindle Speed rpm
60-4300
Low Range rpm
60-500
High Range rpm
550-4300
Main Spindle Taper
R-8 or ISO 30
Spindle Travel
5″ (127mm)
Quill Feed – in/rev. (mm/rev)
.0015/.0031/.006 (.004/.008/.015mm)
Quill Diameter
3.38″ (85mm)
Construction & Weight
Column Turret Diameter
16.33″ (415mm)
Knee Width
14.17″ (360mm)
Column Bearing Length
18.11″ (460mm)
Saddle/Table Bearing Length
20.47″ (520mm)
Ram/Turret Bearing Length
17.51″ (445mm)
Ram Length
32.75″ (832mm)
Table Load
880 Ibs. (400kg)
Net Weight
2,866 Ibs. (1300kg)
Dimensions
Model
3VS
A Height
91″ (2310mm)
B Depth
71″ (1803mm)
C Width
73.6″ (1870mm)
D Table to Spindle
1.97″-19.68″ (50-500mm)
E 45° Inward
0-18″ (0-457mm)
F Spindle ø to column
5.5″-24″ (140-610mm)
G 45° Outward
10.43″-27.95″ (265-710mm)
H Head Tilt
90° right & left
