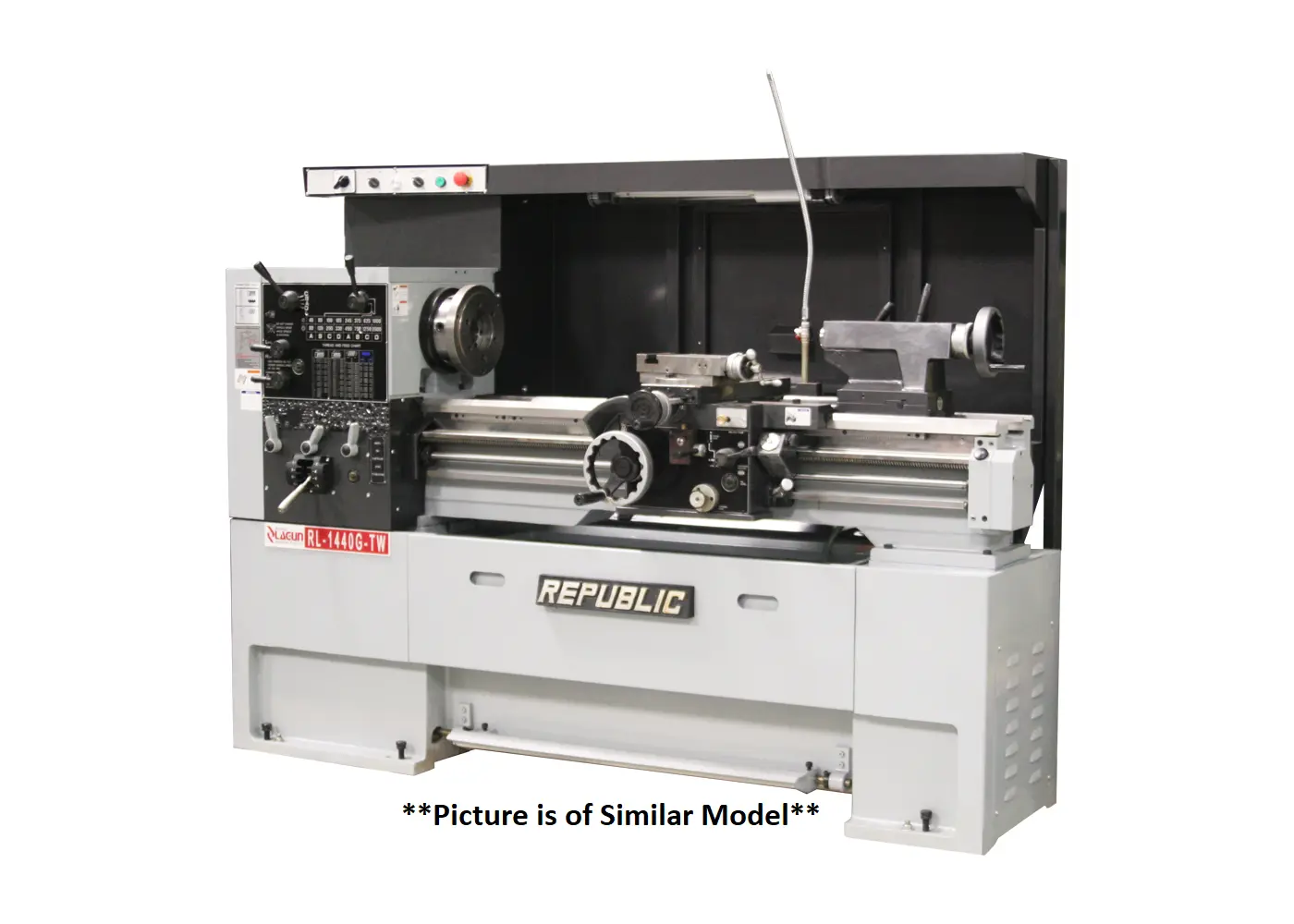

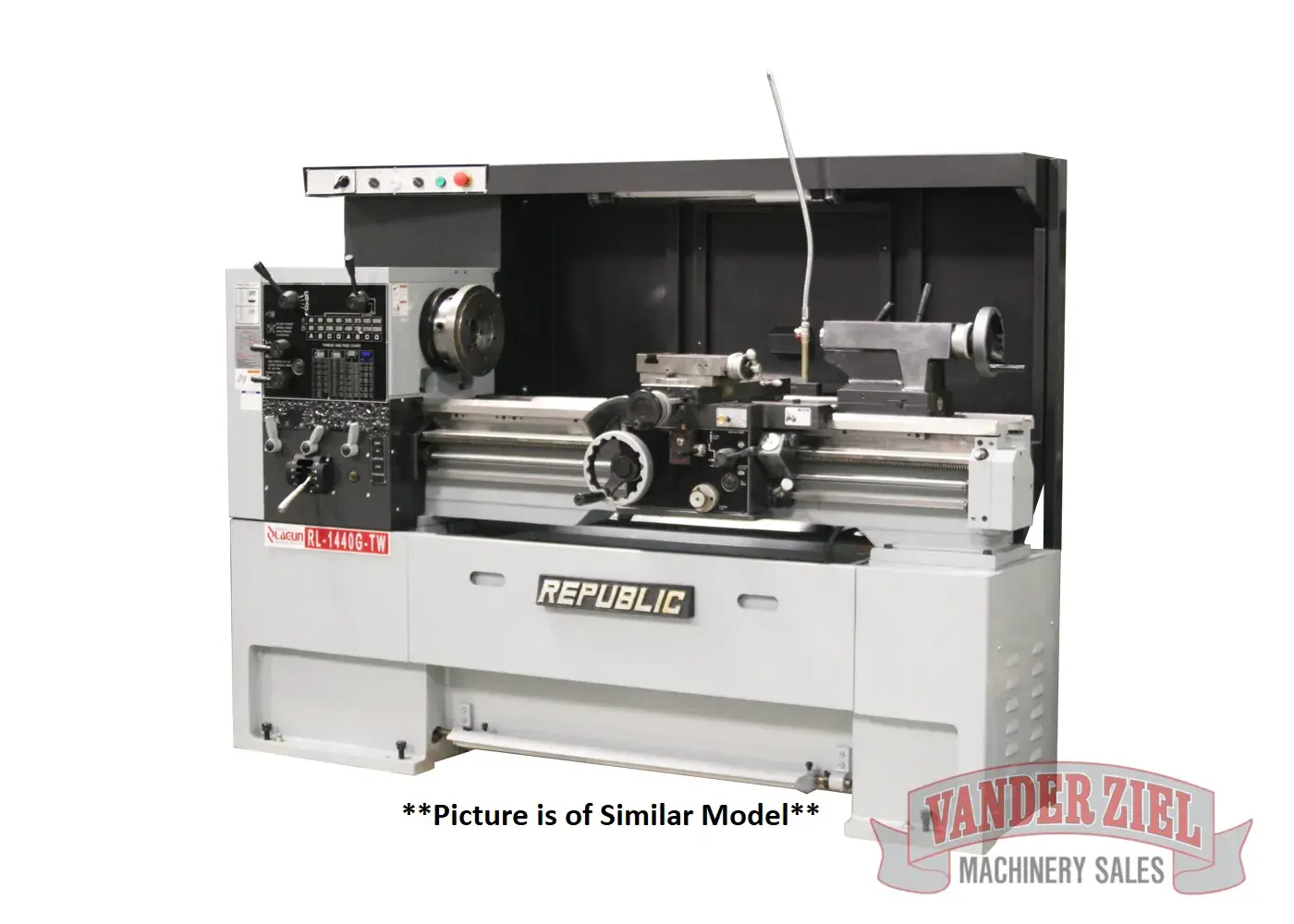

NEW LAGUN RL-16

Lagun Republic 16" x 40"/60" Precision Gap Bed Lathe, Model RL-16 - NEW 4211011
Capacity
Swing Over Bed16.14"
Swing Over Cross Slide10.39"
Distance Between Centers39.37" or 59.06"
Swing in Gap22.95"
Gap Width from Spindle Nose5.31"
Headstock
Spindle Nose, Cam-lockD1-6
Spindle Bore2.07"
Spindle Speeds16 Steps (w/ Optional EVS; 2 steps)
Spindle Speed RangeOptional EVS40 RPM to 2,000 RPM20 RPM to 3,000 RPM w/ EVS
Carriage
Length on Bed20.19"
Width of Bridge16.22"
Cross Slide Travel8.66"
Top Slide Travel5.12"
Bed
Number of V Ways3
Bed WIdth10.23"
Feeds & Threads
Range of Threads2 TPI to 72 TPI
Number of Threads45
Longitudinal Feed0.0019" to 0.0669"
Cross Feed0.0009" to 0.0334"
Tailstock
Quill Diameter2.04"
Quill Travel5.98"
Quill CenterM.T.4
Motor
Main Motor(standard)5 Hp
Coolant Pump0.125 Hp
Measurement
Length Packed109.64"
Width Packed44.09"
Height packed68.70"
Weight
Gross Weight3,637 lb
