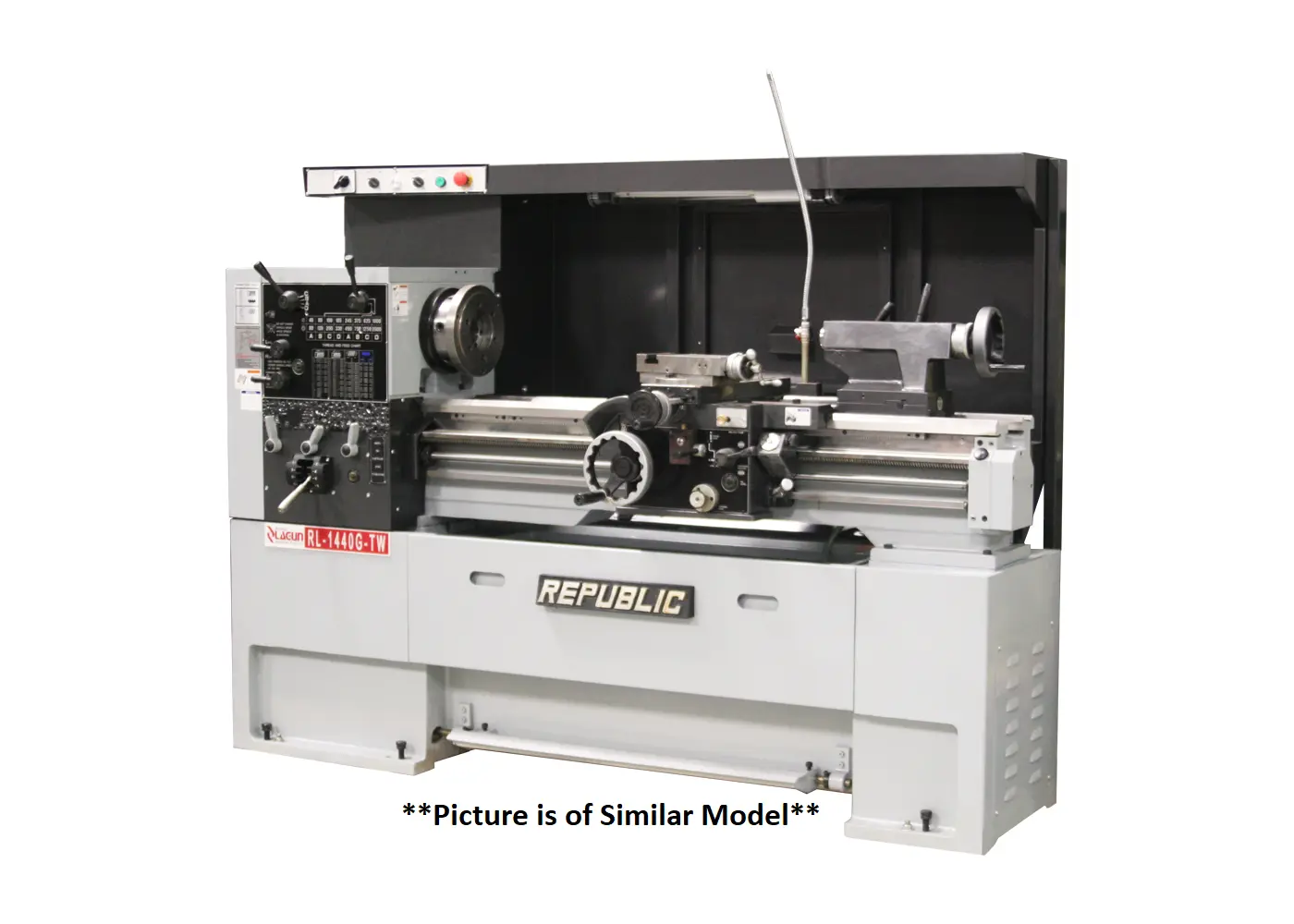

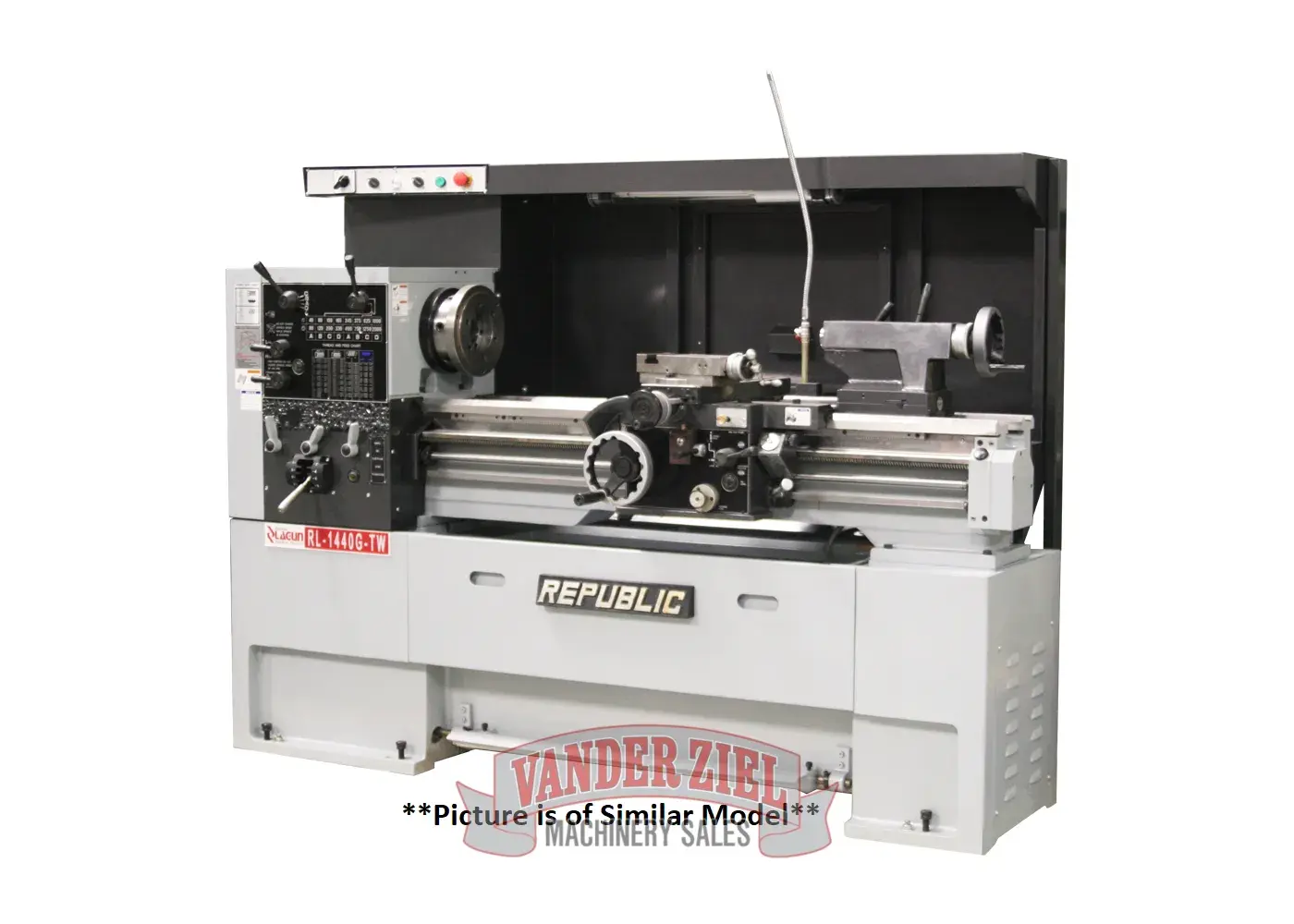

NEW LAGUN RL-14

Lagun Republic 14″ x 40″/60″ Precision Gap Bad Lathe, Model RL-14 – NEW

Capacity
Swing Over Bed
14.17″
Swing Over Cross Slide
8.42″ or 10.39″
Distance Between Centers
39.37″ or 59.06″
Swing in Gap
20.98″ to 22.95″
Gap Width from Spindle Nose
5.31″ or 8.85″
Headstock
Spindle Nose, Cam-lock
D1-6
Spindle Bore
2.067″
Spindle Speeds
16 Steps (w/ Optional EVS; 2 steps)
Spindle Speed Range
Optional EVS
40 RPM to 2,000 RPM
20 RPM to 3,000 RPM w/ EVS
Carriage
Length on Bed
20.19″
Width of Bridge
16.22″
Cross Slide Travel
8.66″
Top Slide Travel
5.12″
Bed
Number of V Ways
3
Bed WIdth
10.23″
Feeds & Threads
Range of Threads
2 TPI to 72 TPI
Number of Threads
45
Longitudinal Feed
0.0019″ to 0.0669″
Cross Feed
0.0009″ to 0.0334″
Tailstock
Quill Diameter
2.04″
Quill Travel
5.98″
Quill Center
M.T.4
Motor
Main Motor
(standard)
5 Hp
Coolant Pump
0.125 Hp
Measurement
Length Packed
89.37″
Width Packed
44.09″
Height packed
68.70″
Weight
Gross Weight
2,976 lb
