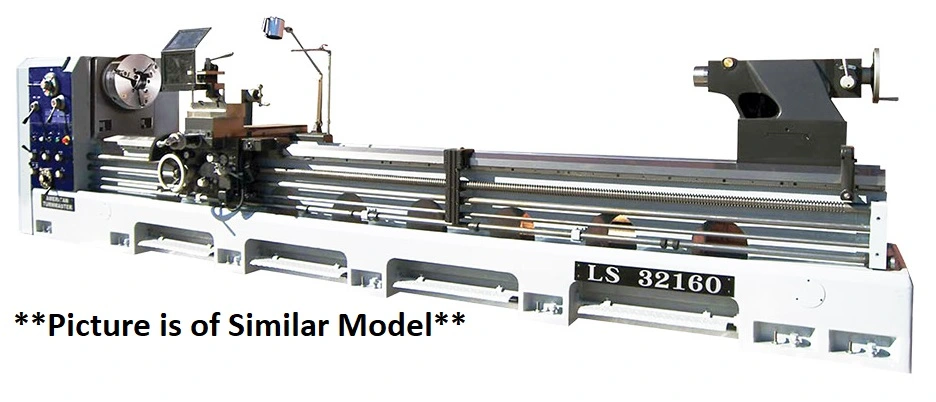

Lagun American Turnmaster 32″ x 60-240″ Heavy Duty Precision Lathe, Model LS-32 – NEW
Model
LS – 32”
Capacity
Swing over bed
32.50” (830 mm)
Swing over cross slide
23” (600 mm)
Swing through gap
44” (1100 mm)
Gap length
12” (304 mm)
Bed width
18 1/8” (460 mm)
Centers distance
60” to 280” (1500 to 7000 mm)
Headstock
Spindle nose, standard
D1-11 Nose (Opt. A2-8)
Spindle Sleeve
MT# 5 for D1-11 & A2-8; MT# 6
Spindle bore
4.14” (105 mm)/
Optional: 6.02” (153 mm) A2-11 Nose
Spindle speeds, no.
12 steps, 15 TO 1000 RPM/
Spindle speed range
Low
15-25-40-55 RPM
Medium
70-115-160-230 RPM
High
340 – 550 – 780 – 1000 RPM
Carriage
Cross Slide Travel
16.50” (425 mm)
Compound Travel
10” (250 mm)
Threads and Feed
Leadscrew diameter
1.75” x 2 TPI (45 mm)
Inch thread No & Range.
36 e/a from 2 to 28 TPI,
D.P. Threads No & Range
36 e/a from 4 to 56 D.P.
Metric thread range & no.
38 e/a from 0.8 to 14 mm,
Module Peach threads
24 e/a from 0.5 to 7 M.P.
Longitudinal feed range
.002 to .0276 IPR (0.05 to 0.7 mm)
Cross feed range
.001 to .0136 IPR (0.025 to 0.35 mm)
Rapid Traverse (option)
Longitudinal
146 IPM (3.7 M / min)
Cross
72 IPM (1.85 / min)
Cross slides travel
16.50” (425 mm)
Top slide travel
10” (250 mm)
Tailstock
Tailstock quill diameter
4” (105 mm)
Tailstock center taper
No. 6 MT
Quill traverse
9” (230 mm)
Quill hand feed ratio
(2-speed) 1:1 & 4:1
Motor
Main drive motor (Constant)
25 HP
Coolant pump
0.25 HP (0.19 kW)
