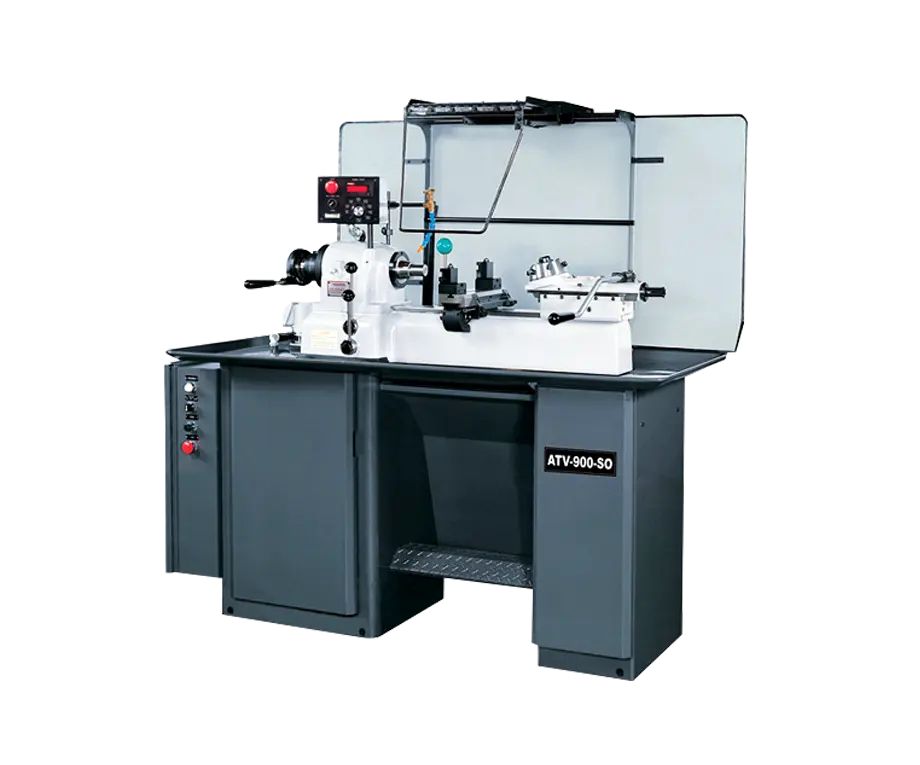

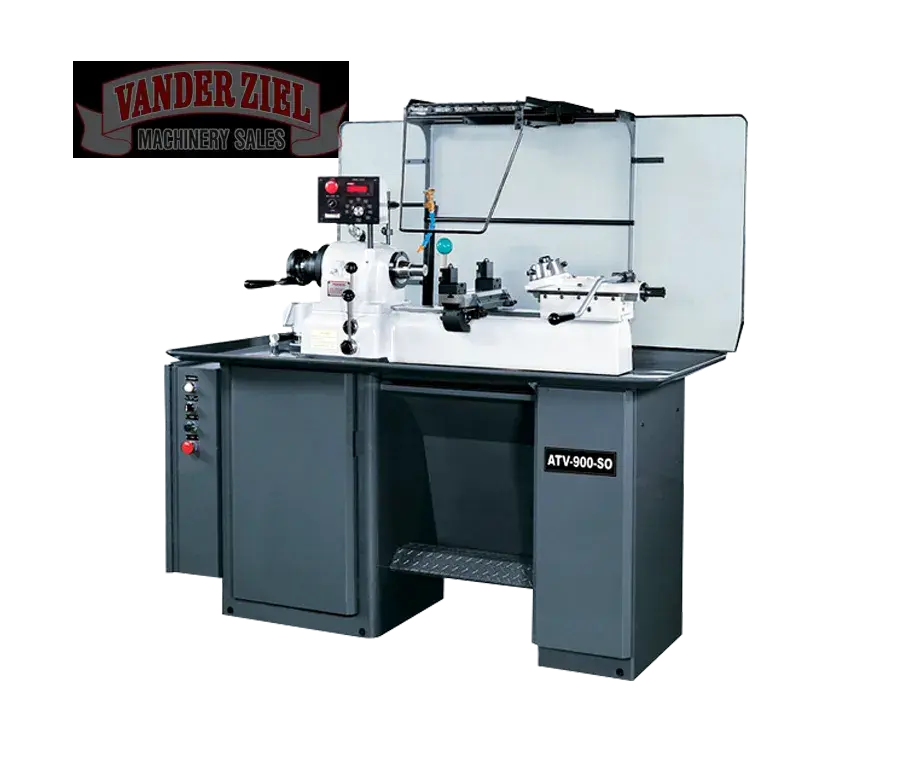

NEW LAGUN AT-900-SO

Lagun 9″ x 36″ Ultra High Precision Lathe, Model AT-900-SO – NEW

Capacity
Swing over bed ways
9”
Length of bed
36”
Double tool cross slide travel
3 ¾”
Turret slide travel
4”
Turret holes, diameter
5/8”
Spindle Capacity
Spindle speeds, number
Infinitely variable
Spindle speed, range
0~4,000 RPM
Spindle nose, inside taper for 5C/OD
10 degrees / 4 degree taper
3-Jaw chucks
6”
With expanding collets
3”
5C Hex collets
7/8”
With step chucks
1-1/16 to 6”
Main drive motor, 220V
3 HP
Maximum Weight
up to 77.16 lb
Maximum Length
23.6”
Change Time
10 seconds
