NEW LAGUN AT-1550-G COLCHESTER TYPE

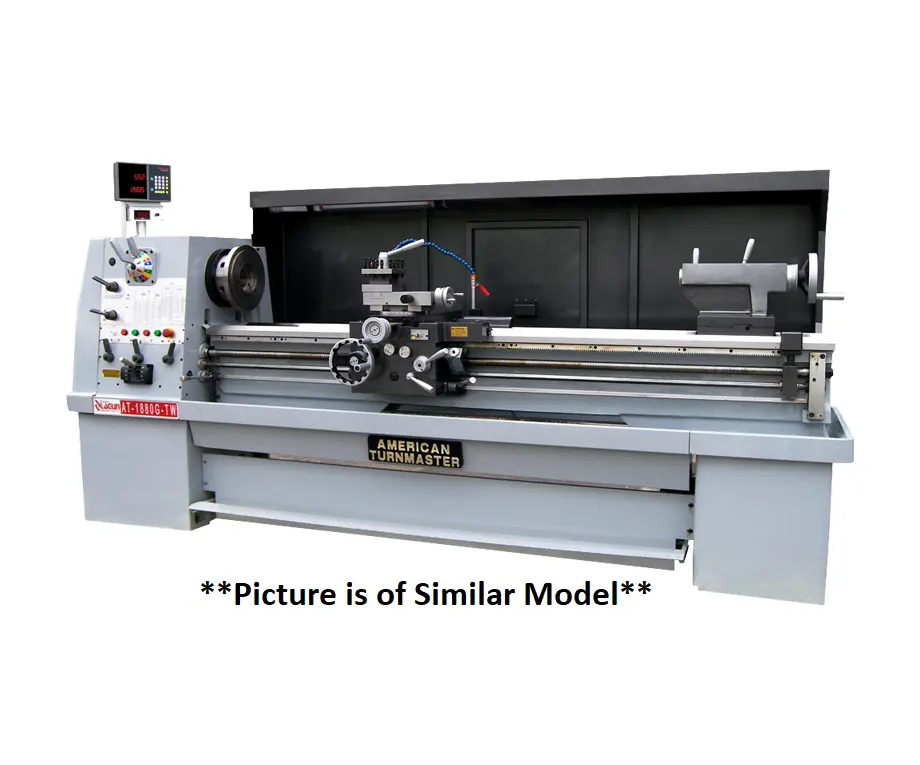

Lagun American Turnmaster 15" x 50" Lathe, Model AT-1550-G Colchester Type - NEW
SKU # 4211007
Capacity
Center height7 1/2"

Swing over bed15 1/4"

Swing over cross slide9 3/8"

Distance between centers50"

Headstock
Spindle noseD1-6

Spindle bore (max. bar dia)2 3/16"

Spindle speed16 steps

Spindle speed range25 -2,000 rpm

Ranges25-33-45-60-80-108-140-190-265-350-470-625-840-1120-1500-2000

Carriage
Length on bed19"

Width of bridge17 1/2"

Cross slide travel9 1/4"

Top Slide travel4 3/4"

Bed
Number of V ways3 each "V" ways

Bed width11"

Swing in gap24"

Gap bed length faceplate7 5/8"

Tailstock
Quill diameter2.8"

Quill centerM.T.4

Quill Travel6 1/8"

Feeds and threads
Range of whitworth threads & No. ()2-72 T.P.I(45)

Range of metric threads & No. ()0.2-14 (39)

Range of D.P. & Number ()8-44(21)

Range of M.P. & number ()0.3-3.5(18)

Longitudinal feed0.0015-0.04"

Cross feeds0.00075-0.02"

Motor
Main motor7.5 hp

Coolant pump1/8 hp
