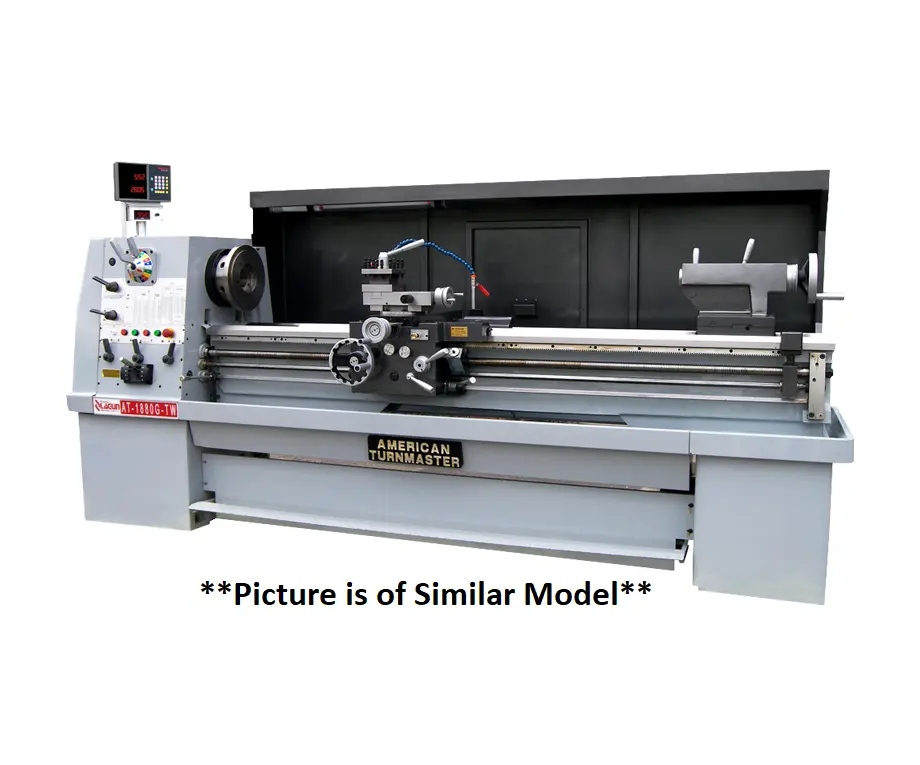

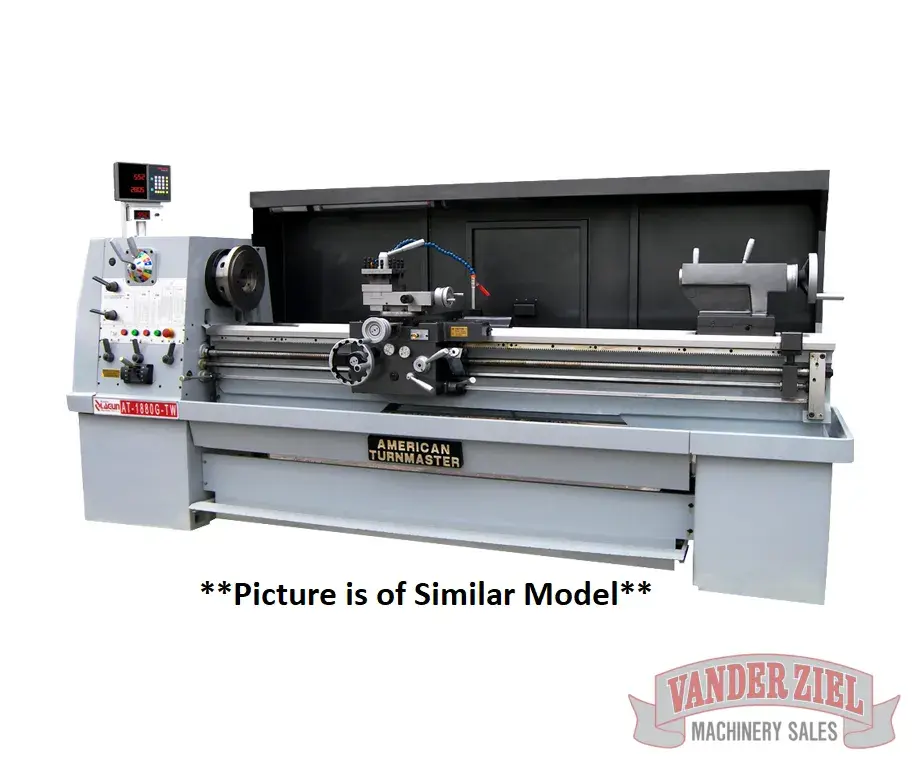

NEW LAGUN AT-1460-G COLCHESTER TYPE

Lagun American Turnmaster 14" x 60" Lathe, Model AT-1460-G Colchester Type - NEW
SKU #4211006
Capacity
Swing over bed14 3/16"

Swing over cross slide8 3/8"

Distance between centers60"

Headstock
Spindle nose, cam-lockD1-6

Spindle bore (max. bar dia.)2 1/16"

Spindle speeds (hi-lo)16 steps

Spindle speed range40-2000 rpm

Low Range40-60-100-165-245-375-625-1000

High Range80-120-200-330-490-750-1250-2000

Carriage
Length on bed20"

Width of bridge16 1/15"

Cross Slide Travel8 11/16"

Top Slide Travel5 1/2"

Bed
Number of V ways2 each "V" Ways (opt. 3 each "V" ways)

Bed width10 1/4"

Swing in gap21"

Tailstock
Quill diameter2.5"

Quill centerM.T.4

Quill Travel6 1/2"

Feeds and threads
Range of whitworth threads & no.()2-72 T.P.I (45)

Range of metric threads & No. ()0.2 - 14(39)

Range of D.P. & number ()8-44(21)

Range of M.P. & number ()0.3-3.5(18)

Longitudinal feeds0.002-0.067"

Cross feeds0.001-0.034"

Motor
Main motor, 2-speed (full hp on first speed, 1/2 hp on second speed)5 / 2.5 hp

Coolant Pump1/8 hp
