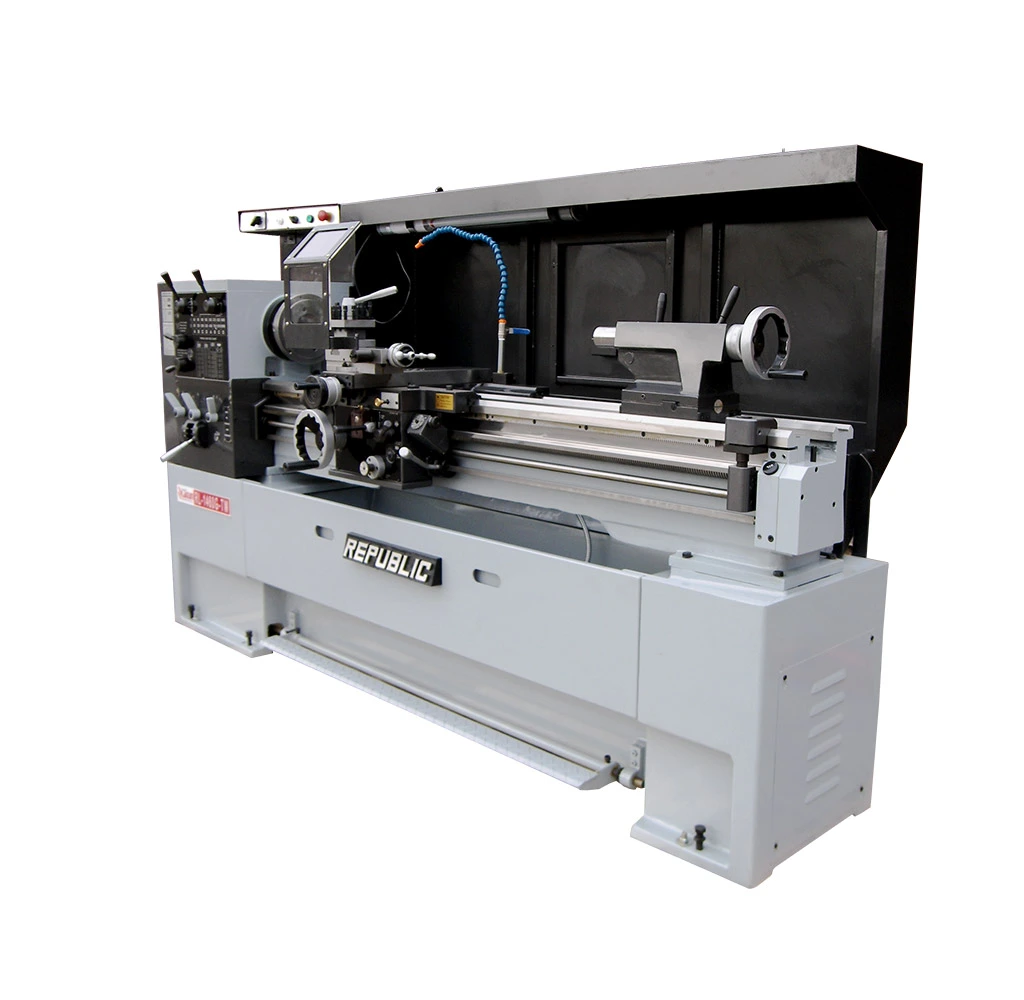

Lagun 17″/20″ x 40″/60″ Gap Bed Lathe, Model ML – NEW
Capacity
Swing Over Bed
17″ or 20″
Swing Over Cross Slide
10.75″ or 13.90″
Distance Between Centers
39.37″ or 59.06″
Swing in Gap
24.5″ to 27.48″
Gap Width from Spindle Nose
7.67″
Headstock
Spindle Nose, Cam-lock
D1-6
Spindle Bore
3.15″
Spindle Speeds
12 Steps (w/ Optional EVS; 3 steps)
Spindle Speed Range
Optional EVS
36 RPM to 1,800 RPM
20 RPM to 2,200 RPM w/ EVS
Carriage
Length on Bed
17.32″
Width of Bridge
18.77″
Cross Slide Travel
9.25″ to 10.71″
Top Slide Travel
6.30″
Bed
Number of V Ways
3
Bed WIdth
12″
Feeds & Threads
Range of Threads
2 TPI to 72 TPI
Number of Threads
45
Longitudinal Feed
0.0015″ to 0.0393″
Cross Feeds
0.0007″ to 0.0196″
Tailstock
Quill Diameter
2.32″
Quill Travel
5″
Quill Center
M.T.4
Motor
Main Motor
(standard)
7.5 Hp
Coolant Pump
0.125 Hp
Measurement
Length Packed
94.48″ to 114.17″
Width Packed
44.09″
Height packed
68.70″
Weight
Gross Weight
3,747 lb to 4,850 lb
