NEW LAGUN ATV-910-FL

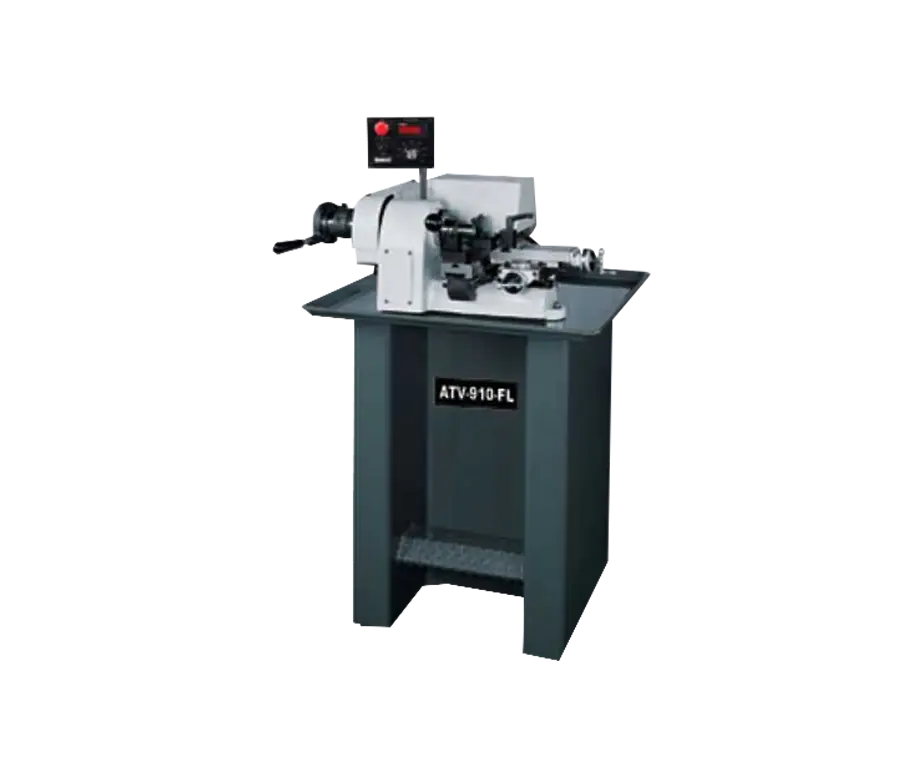

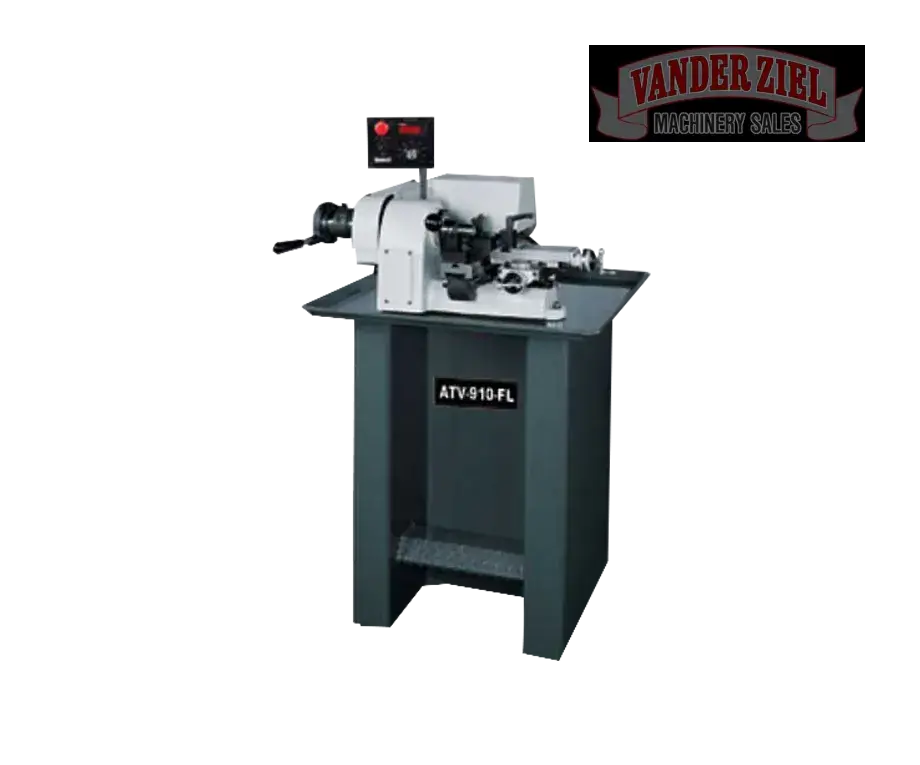

Lagun 9" x 10" High Precision Lathe, Model ATV-910-FL - NEW
SKU # 4211000
Ball bearing lever type 5C collet closer
1 HP EVS drive and complete 3/60/220v
electrics
Floor pedestal with chip tray
Wide chip pan
Comfortable foot rest
Welded steel pedestal
The high accuracy preloaded ball bearing spindle is mounted in the
soild, one-piece totally enclosed headstock housing for maximum
rigidity and sustained accuracy.
The lever control ended of the closer assembly is balanced and rides
on a precision bearing. Movement to the left closes the collet, and to
the right opens the collet.
The bed ways are solid hardened and ground steel. There is no weakness
of a center slot. The bed is easy to keep clean, will resist wear,
and chips cannot fall upon the angular slide ways.
Spindle speeds are provided of 750, 1,800 and 3,000 RPM through an
endless V-belt and three step pullet arrangement. Spindle speeds are
quickly changed. Raise the pulley and belt cover as shown. Move the
lever horizontally to the extreme left. This will slide the motor pulley to
the "belt release" position. Change belt to the pulley step desired and
return the lever to the extreme right or "belt tight" position.
