NEW LAGUN ATV-618-ET

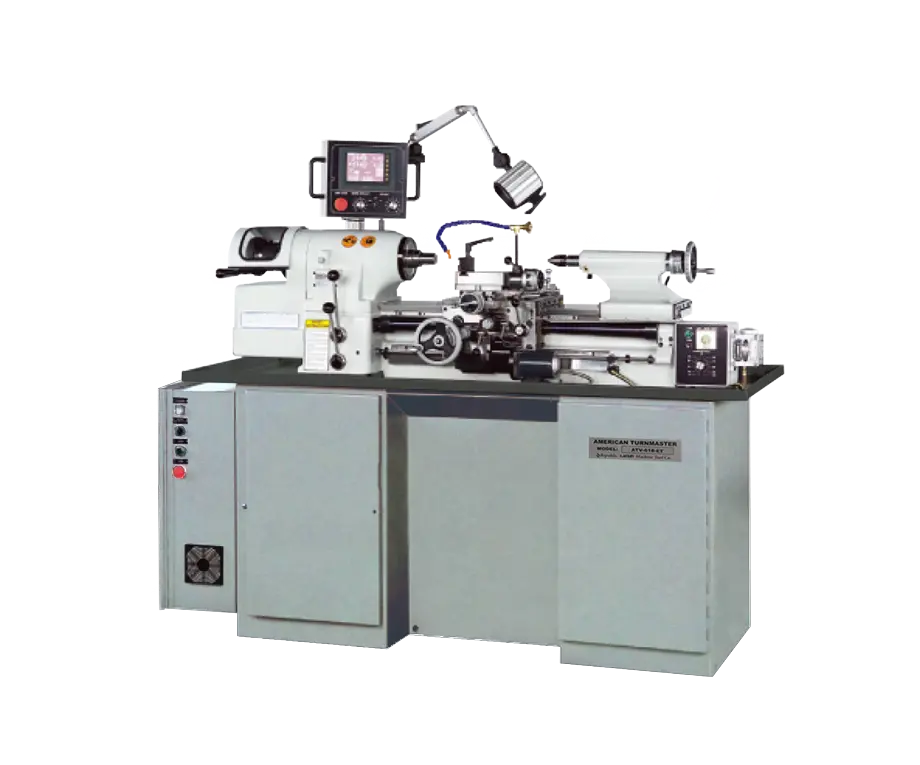

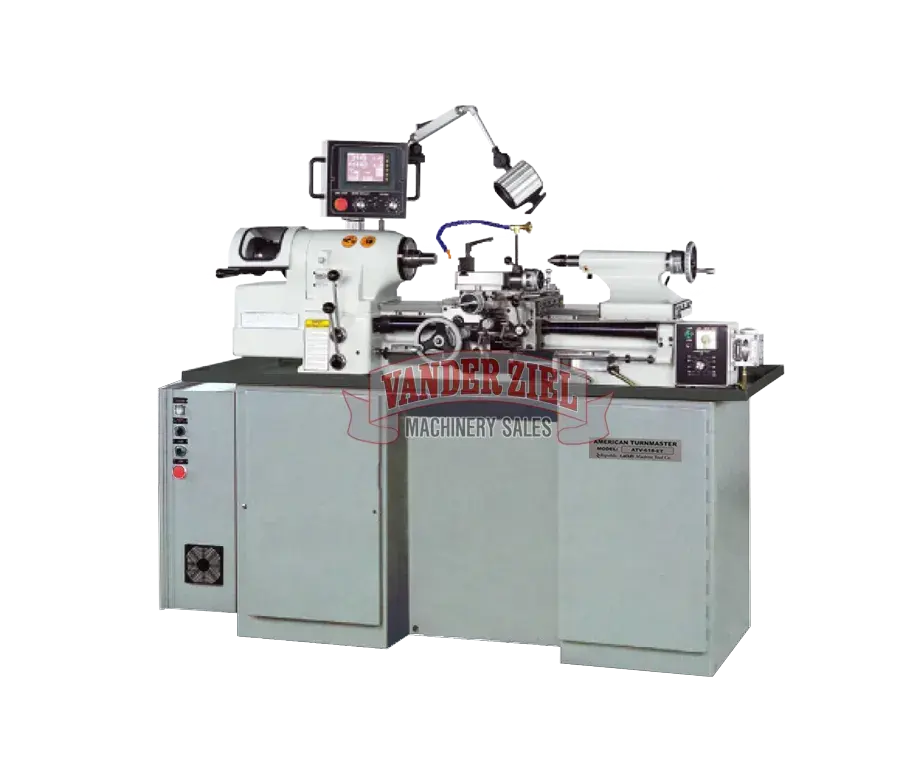

Lagun 11" x 18" Precision Tool Room Lathe, Model ATV-618-ET - NEW
SKU #4211002
Table
Swing Over Bed11"
Swing Over Carriage9"
Swing Over Cross slide6"
Distance Between Centers18"
Length of Bed36"
Headstock
Spindle Nose Diameter2.189"
Spindle SpeedInfinitely variable
Spindle Speed Range0 to 4,000 RPM
Spindle nose, ID / CO, 5C10°/4°
Spindle Nose, Outside Taper4°
Capacity
5C Round collets1 - 1/16"
5C Hex collets7/8"
5C Square collets3/4"
With Expanding Collets3"
With Step Chucks1-1/16" to 6"
With Jaw Chucks6"
Travels, Feeds, and Threads
Cross Slide Travel6"
Compound Slide Travel3"
Quick Action Compound Slide Travel0.1"
Carriage Variable Feed Range3/16 to 4"
Cross Slide Variable Reed Range5/16 to 7"
Leadscrew, Pitch x Diameter8 TPI X 1"
Thread Range3.175 to 500 TPI
Tailstock
Tailstock Spindle Diameter1.358"
Spindle TaperNo. 2 MT
Spindle Travel3.75"
Electronics
Main drive, EVS, 3/60/220 volt3 Hp; Opt. 5HP
Coolant Pump Motor0.25 Hp
Weight
Gross Weight2,640 lbs
