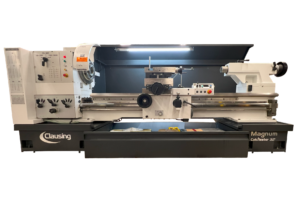

NEW CLAUSING 831

Specifications
CapacityCenter height from floor49.68"
 Swing over bed32.3"
 Swing in gap41.7"
 Width in front of faceplate9.44"
 Swing over cross slide22.8"
 Bedway width18.9"
Headstock
Spindle bore4.09"
 Spindle nose (camlock)D1-11
 Spindle nose taper8MT
 Number of spindle speeds3 infinitely variable
 Spindle Speed Range (rpm)18-1800
   Low range (rpm)18-200
   Mid range (rpm)55-605
   High range (rpm)160-1800
(OPTIONAL) Headstock 6"
Spindle bore6.1"
Spindle noseA2-11
Spindle nose taper7MT
Number of spindle speeds3 infinitely variable
Spindle Speed Range (rpm)15-800
  Low range (rpm)15-102
  Mid range (rpm)45-306
  High range (rpm)118-800
(OPTIONAL) Headstock 9"
Spindle bore9.05"
Spindle noseA2-15
Spindle nose taperN/A
Number of spindle speeds3 infinitely variable
Spindle Speed Range (rpm)8-600
  Low range (rpm)8-63
  Mid range (rpm)21-229
  High range (rpm)56-600
Cross/Top SlideTravel of cross slide16"
 Width of cross slide11"
 Travel of top slide6.5"
Width of top slide7"
TailstockQuill travel12"
 Quill diameter4.125"
 Quill taper6MT

Clausing/Colchester "The Magnum" 32" VS Specifications Cont.
Feeds & Threading
Longitudinal feed range0.002-0.16 in/rev
 Cross feed range0.001-0.08 in/rev
 Number of inch pitches51
 Range of inch pitches2-84 TPI
 Number of metric pitches59
 Range of metric pitches0.2-14mm
 Number of diametral pitches27
 Range of diametral pitches8-72
 Number of module pitches20
 Range of module pitches0.2-3.5
MotorSpindle motor30 hp
Dimensions8315VSJ32" x 60" Gap Bed
 Length x Height x Width151" x 70.8" x 74.8"
 Weight10,340 lbs.
 8316VSJ32" x 80" Gap Bed
 Length x Height x Width171.2" x 70.8" x 74.8"
 Weight11,440 lbs.
 8319VSJ32" x 120" Gap Bed
 Length x Height x Width210" x 70.8" x 74.8"
 Weight14,080 lbs.
 8320VSJ32" x 160" Gap Bed
 Length x Height x Width250" x 70.8" x 74.8"
 Weight16,500 lbs.


  Standard Features


Spindle Center Bushing

Two MT Centers

Splash Guard

Chuck Guard

Leadscrew cover

Coolant System

Inch Threading Dial

Set of Wrenches and Keys

Instruction and Parts Manual

Accuracy Chart

Emergency Stop Button

Lockable Isolator Switch

One Shot Saddle and Cross Slide Lubrication

Forward/Reverse/Stop Switch

Standard 230/3/60 or 460/3/60 Volts (208/3/60 volts Require a Transformer)
