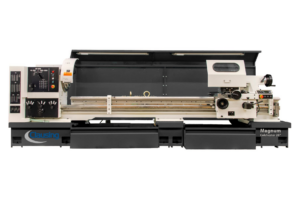

NEW CLAUSING 821
Overview
Clausing 26" Swing Variable Speed Lathes, Model 821 - NEW
Prices subject to change every 10 days due to economic changes please call us to verify the price!
Clausing/Colchester "The Magnum" Lathe Features
AC Inverter Variable Speed Spindle Drive state of the art AC Spindle Drive featuring surface mount technology to give compact size and high reliability....4 years parts and labor warranty on drive
Interlocked End Guard Door with easy access for maintenance and changing end train gears
Leadscrew Reversing Box for faster thread cutting - reversal of the leadscrew with the spindle running at low speed
Easy to read Index Plate makes it simple to select the proper feed rate or threads
Three Headstock Gear Ranges for a wide spread of constant power - 33 to 1 - better than most CNC lathes
Infinitely Variable Spindle Speeds you can get the right spindle speed very quickly with a response like a CNC lathe, displayed on headstock
Electromagnetic Spindle Brake
Forced lubrication system the spindle bearings, gears and shafts are lubricated by a forced lubrication system
Precision Gamet Tapered Roller Spindle Bearings
Chuck Guard with limit switch
Anti-Friction Carriage Ways. Low-friction "Moglice" PTFE material between the saddle and bed for minimal bedwear and longer machine life
Saddle Mounted Chip Guard and Full Rear Splash Guard
Extra Wide Heavy-duty Cast Iron Bed with triangular webs for exceptional torsional stiffness and excellent chip clearance
Heavy Duty Tailstock for excellent rigidity - with extra heavy-duty quill
Covered Leadscrew protects leadscrew from chips
Wheeled Chip Bin has a large capacity for easy chip disposal
Hardened and Ground Bedways - all bedways are induction hardened and precision ground
Cast Iron Base provides the maximum support for the bed combined with sloping top surfaces to prevent the accumulation of coolant
Clausing/Colchester "The Magnum" 26" VS
Specs
Specifications
CapacityCenter height from floor46.65"
Swing over bed26.3"
Swing in gap35.8"
Width in front of faceplate9.44"
Swing over cross slide16.9"
Bedway width18.9"
Headstock
Spindle bore4.09"
Spindle nose (camlock)D1-11
Spindle nose taper8MT
Number of spindle speeds3 infinitely variable
Spindle Speed Range (rpm)18-1800
Low range (rpm)18-200
Mid range (rpm)55-605
High range (rpm)160-1800
(OPTIONAL) Headstock
Spindle bore6.1"
Spindle noseA2-11
Spindle nose taper7MT
Number of spindle speeds3 infinitely variable
Spindle Speed Range (rpm)15-800
Low range (rpm)15-102
Mid range (rpm)45-306
High range (rpm)118-800
Cross/Top SlideTravel of cross slide16"
Width of cross slide11"
Travel of top slide6.5"
Width of top slide7"
TailstockQuill travel12"
Quill diameter4.125"
Quill taper6MT
Feeds & Threading
Longitudinal feed range0.002-0.16in/rev
Cross feed range0.001-0.08in/rev
Number of inch pitches51
Range of inch pitches2-84 TPI
Number of metric pitches59
Range of metric pitches0.2-14mm
Number of diametral pitches27
Range of diametral pitches8-72
Number of module pitches20
Range of module pitches0.2-3.5
MotorSpindle motor30 hp
Clausing/Colchester "The Magnum" 26" VS Specifications Cont.
Dimensions8215VSJ26" x 60" Gap Bed
Length x Height x Width151" x 70.8" x 74.8"
Weight8,800 lbs.
8216VSJ26" x 80" Gap Bed
Length x Height x Width171.2" x 70.8" x 74.8"
Weight9,460 lbs.
8219VSJ26" x 120" Gap Bed
Length x Height x Width210" x 70.8" x 74.8"
Weight11,220 lbs.
Standard Features
Spindle Center Bushing
Two MT Centers
Splash Guard
Chuck Guard
Leadscrew cover
Coolant System
Inch Threading Dial
Set of Wrenches and Keys
Instruction and Parts Manual
Accuracy Chart
Emergency Stop Button
Lockable Isolator Switch
One Shot Saddle and Cross Slide Lubrication
Forward/Reverse/Stop Switch
Standard 230/3/60 or 460/3/60 Volts (208/3/60 volts Require a Transformer)
