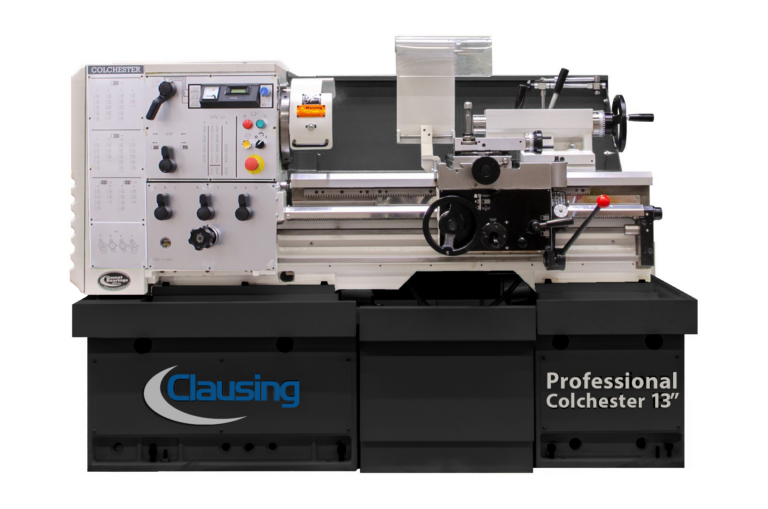

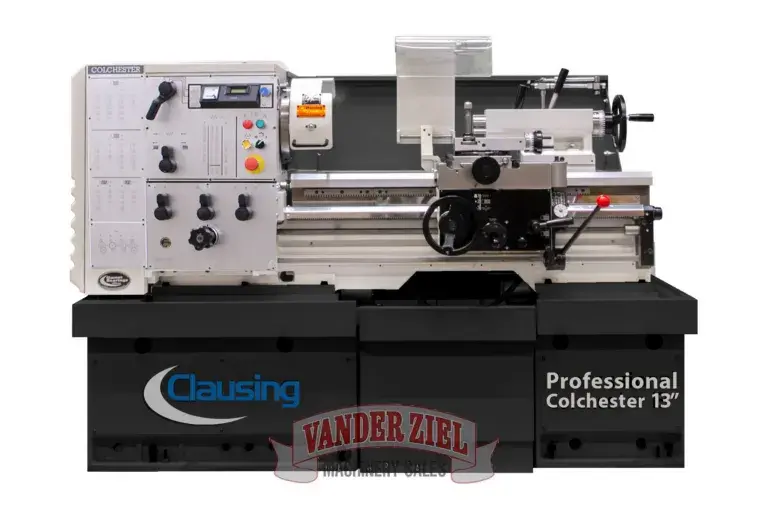

Clausing 13″ Swing Variable Speed Lathe, Model 801 – NEW
Features and Benefits:
Clausing/Colchester Infinitely variable speed lathes are the industry standard for lathes. The quality built into every machine translates into real long term performance for your application. The removable gap plate allows for large face plates to be mounted onto the spindle nose for various turning applications. Rugged construction, consistent quality in design and production, along with human engineering makes the operator more efficient, making this lathe a cost effective investment. You will get unbelievable machine performance and operational longevity with the Clausing/Colchester Geared Head Lathes.
These Variable Speed lathes use a State-of-Art AC Spindle Drive to control the motor. A belt drive system from the motor to gearbox head. Speed changes are then selected by shifting gear levers into one (1) of three (3) locations (Low, Medium, High) then adjusting a pot control knob to adjust the speed output.
Three phase voltage refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Machine Features:
25”/50″ between center distance
13.75” Swing over bed
3 Speed Infinitely Variable Speed headstock with speeds ranging from 15 to 3250 RPM
All headstock gears are hardened and ground
Headstock shafts are splined and turn on anti-friction bearings
Spindle bearings, gears, and shafts are lubricated by a forced lubrication system
A broad range of feed and thread selections are available by using three selector levers and an 8 position rotary dial
Cross slide runs along a dovetail guide
Precision tapered roller spindle bearings
Bed wipers and apron mounted one-shot lubrication pump
Cast Iron Plinths with full length splash guard and traveling chip guard
Dynamic spindle brake via the inverter
Equipped with chuck guard, full splash guard, and leadscrew cover
Able to reverse leadscrew while chuck is turning for faster thread cutting
Extra wide bed provides accuracy and minimal wear
Carriage ways coated with “Moglice” PTFE for minimal bed wear and longer machine life
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
Specifications
Machine Style
Engine Lathe
Spindle Speed Control
Variable Speed
Spindle (Hp)
10
Swing Over Bed (inch)
13.75
Swing Over Cross slide (inch)
7.75
Swing in Gap (inch)
21
Distance Between Centers (inch)
25 / 50
Bed Width (inch)
12.5
Spindle Bore (inch)
1.65
Spindle Nose (camlock)
D1-4
Spindle Nose Taper
3 MT
Number of Spindle Speeds
3 infinitely variable
Spindle Speed RPM Range
15-3250
Cross Slide Travel (inch)
9.8
Width of Cross Slide (inch)
7.09
Top Slide Travel (compound) (inch)
5.5
Tailstock Quill Diameter (inch)
2.48
Tailstock Quill Travel (inch)
5.5
Tailstock Quill Taper
4 MT
Longitudinal Feed Range (in/rev)
0.0014 – 0.048
Cross Feed Range (in/rev)
0.0007 – 0.024
Number of Inch Pitches
56
Range of Inch Pitches
2 – 56
Number of Metric Pitches
20
Range of Metric Pitches
0.2 – 14
Number of Diametral Pitches
20
Range of Diametral Pitches
8 – 56
Number of Module Pitches
51
Range of Module Pitches
0.2 – 3.5
Coolant System
Yes
Voltage Required
230/460
Phase
3
8016VSJ – 13″ x 25″ VS Gap Bed Professional Lathe, 75″ x 51″ x 44″, 2,970 lbs.
8017VSJ – 13″ x 50″ VS Gap Bed Professional Lathe, 95″ x 51″ x 44″, 3,300 lbs.
