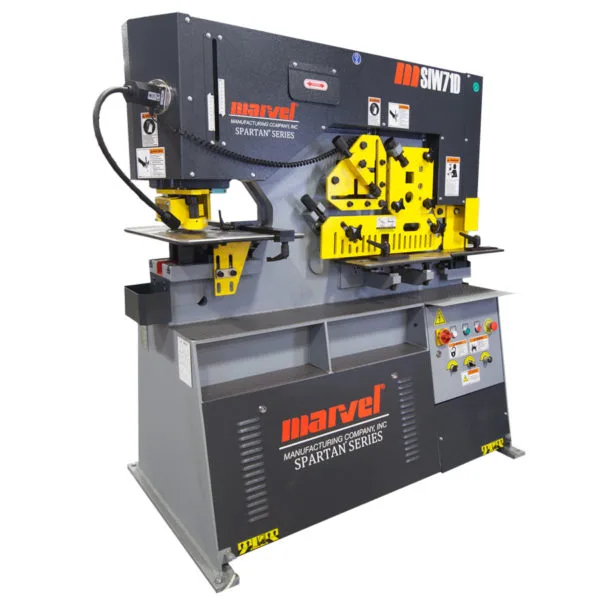

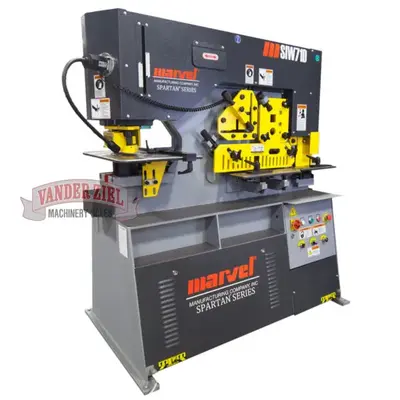

Marvel Spartan 71 Ton Ironworker, Model MSI71D – NEW
STANDARD SPARTAN MSIW71D HEAVY-DUTY, DUAL CYLINDER, COMPLETELY INTEGRATED IRONWORKER WITH 71 TON CAPACITY, 7-1/2 H.P., 12” THROAT, 5 WORK STATIONS, AND SIMULTANEOUS DUAL OPERATION
Capacities & Specifications Rated on 65,000 PSI Tensile
PUNCHING
Punch Pressure: 71 tons.
Punch Holder and Jog Mode
Punch Work Table: Includes back gauge and adjustable stops.
Adjustable See-Through Punch Stripper: For fast and easy setup.
Die Holder: Adjustable in machined T-slots for quick punch and die alignment.
Standard Tooling: 1-1/2” in 9/16”.
CPD Series: 26 punch, 62 die.
Large Tooling: 2” in 7/16″
CPD Series: SP51P punch, SP80D die.
Optional Oversize Tooling: 4-5/16” in 3/16” material.
Throat Depth: 12”
Stroke Length: 2-5/32”.
Cycles per Minute in 3/4”: 25.
Punching Station Work Height: 40-9/16”
FLAT BAR SHEARING
Flat Bar Shear Capacity: 14” in 5/8”.
Maximum Width x Thickness: 12” in 3/4”.
Lower Blade: Four (4) usable edges.
Support Table: Includes guides for accurate positioning and indicator lines at 30 and 45 degrees left and right.
Adjustable Hold-Down: Holds work piece securely in position when shearing.
Upper Shear Blade: Provides for minimum distortion. Two (2) usable edges.
Blade Length: 15”.
Angle Flange Trim: 4”.
Flat Bar Shear Work Height: 35-1/2”
ANGLE SHEARING
Maximum Capacity – 90 degrees: 5” x 5” x 1/2”.
Maximum Capacity – 45 degrees: 2-1/2” x 2-1/2” x 3/8”.
Shearing with no material loss and minimum deformity.
Shear Blades: Four (4) usable edges.
Angle Shear Work Height: 44-7/8”.
BAR SHEARING
Round Bar Max. Capacity: 1-3/4”.
Square Bar Max. Capacity: 1-3/4” x 1-3/4”.
Six Cavity Round and Square Bar Shear Sizes:
Round: , 1/2”, 1”, 1-3/4”
Square: 3/4”, 1-3/4”
Channel Shear Max. (optional): 5”.
I-Beam Shear Max. (optional): 5”.
Bar Shear Work Height: 44-7/8”
NOTCHING
Rectangular Notcher: 1-3/4” x 3-9/16” x 3/8”.
Electrical Interlock Safety Guard
Gauge Table with Stops: For precise positioning.
Notcher Work Height: 35-1/2”.
OTHER STANDARD EQUIPMENT
Five (5) Sets of Punches and Dies:
Punches: 9/16”, 11/16”, 13/16”, 15/16”, 1-1/16”
Dies: 19/32”, 23/32”, 27/32”, 31/32”, 1-3/32”
CPD Series: 26 punch, 62 die.
Magnetic Base Work Light
Adjustable Electric Back Gauge (36”)
24 Volt DC Control Voltage
Scrap Boxes at Punching and Notching Stations
Adjustable Stroke Depth at Punch
Two (2) Full-Control Foot Pedals
Two (2) Hole Die Holders
Two (2) Piece Gauging Table at Punch Station
Keyed Punch Holder for Shaped Tooling
Standard Voltage 230/460 Volt, 3 Phase, 60Hz
Single Phase Machines: Not Available.
Machine Net Weight: 3520 lbs
Machine Dimensions: 70” L x 39” W x 74” H
3’ Electric Back Gauge
