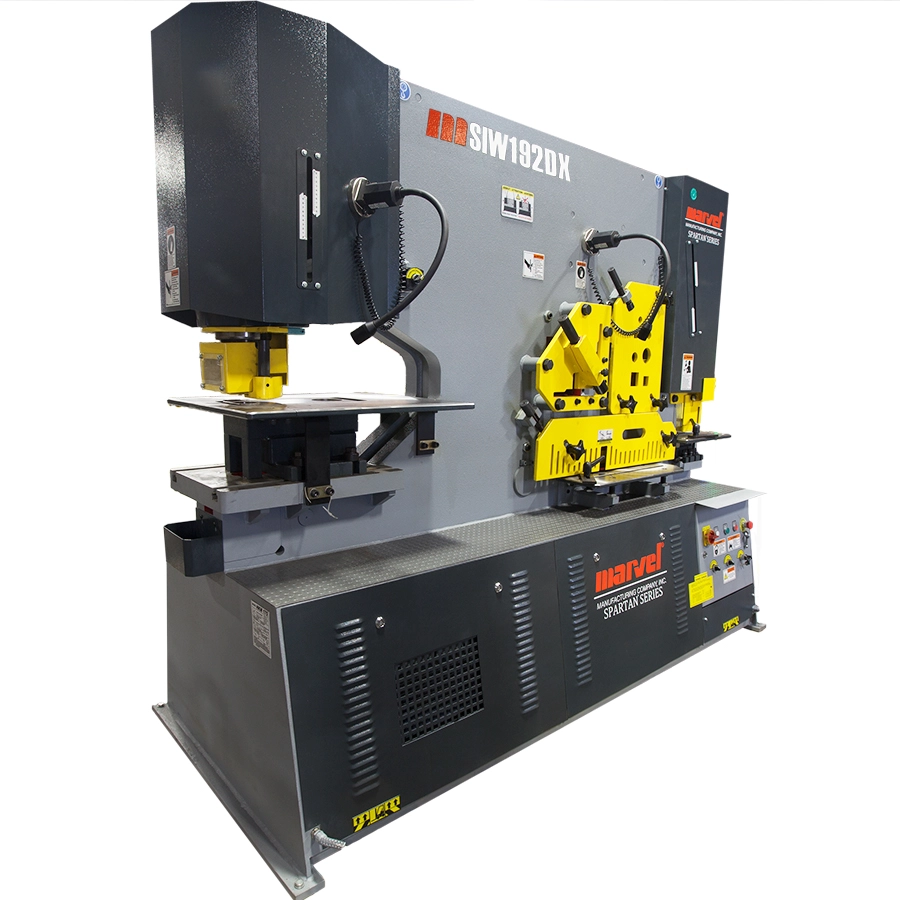

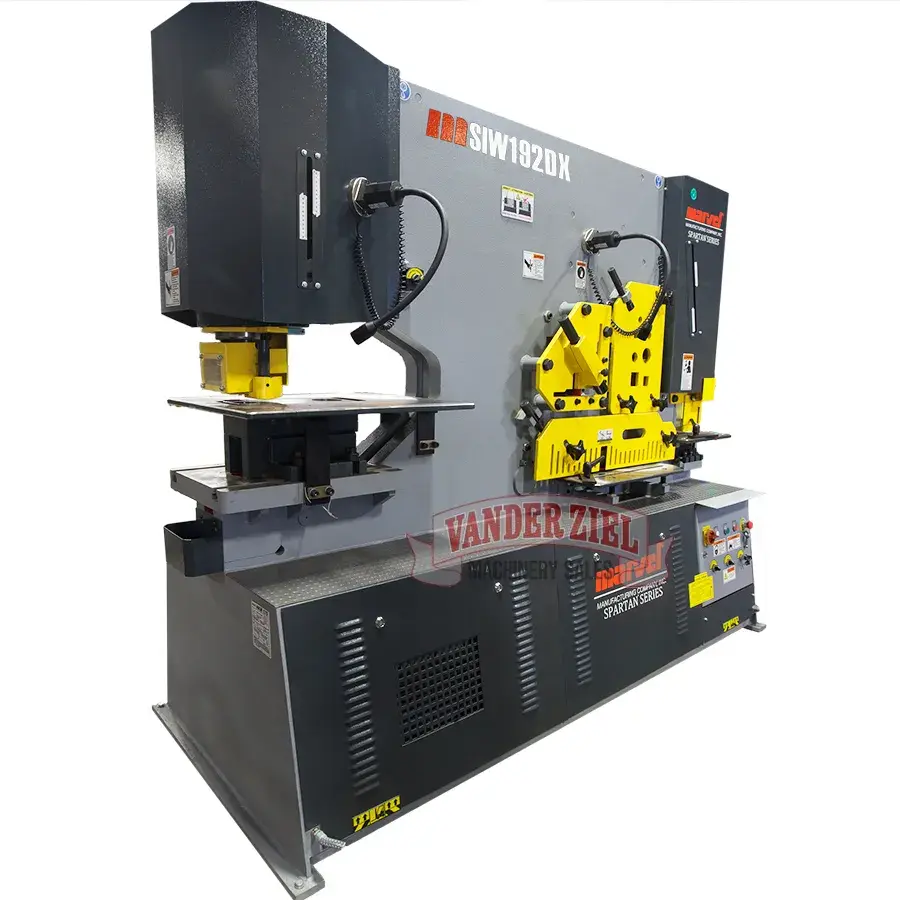

Marvel Spartan 192 Ton Ironworker, Model MSIW192DX – NEW

STANDARD SPARTAN MIW192DX HEAVY-DUTY, DUAL CYLINDER, COMPLETELY INTEGRATED IRONWORKER WITH 192 TON CAPACITY, 15 H.P., 24-9/16” THROAT, 5 WORK STATIONS AND SIMULTANEOUS DUAL OPERATION
Capacities & Specifications Rated on 65,000 PSI Tensile
PUNCHING
Punch Pressure: 192 tons.
Quick Change Punch Holder and Jog Mode
Punch Work Table: Includes back gauge and adjustable stops.
Adjustable See-Through Punch Stripper:  For fast and easy setup.
Die Holder:  Adjustable in machined T-slots for quick punch and die alignment.
Standard Tooling:  1-1/2” in 1-1/2” material.
CPD Series: 26 punch, 62 die.
Large Tooling:  2” in 1-3/16″
CPD Series: SP51P punch, SP80D die
Optional Oversize Tooling:  4-5/16” in 1/2” material.
Throat Depth:  24-9/16”
Stroke Length:  3-1/8”
Cycles per Minute in 3/4”:  22
Punching Station Work Height:  44-1/2”.
FLAT BAR SHEARING
Flat Bar Shear Capacity:  16” in 1”.
Maximum Width x Thickness:  24” in 3/4”.
Lower Blade:  Four (4) usable edges.
Support Table:  Includes guides for accurate positioning and indicator lines at 30 and 45 degrees left and right.
Adjustable Hold-Down:  Holds work piece securely in position when shearing.
Upper Shear Blade:  Provides for minimum distortion.  Two (2) usable edges.
Blade Length:  24”.
Angle Flange Trim:  5” in 5/8”.
Flat Bar Shear Work Height:  37”.
ANGLE SHEARING
Maximum Capacity – 90 degrees:  8” x  8” x 3/4”.
Maximum Capacity – 45 degrees:  3” x 3” x 3/8”.
Shearing with no material loss and minimum deformity.
Shear Blades:  Four (4) usable edges.
Angle Shear Work Height:  44-1/2”.
BAR SHEARING
 Round Bar Capacity:  2-1/4”.
Square Bar Capacity:  2” x 2”.
Six Cavity Round and Square Bar Shear Sizes:   Round   3/4,1″,1-1/8″,1-1/2″,2″
Square  1″, 1-1/2” to 2-1/8”
Channel Shear Max. (optional):  10″.
I-Beam Shear Max. (optional):   10”.
Bar Shear Work Height:  44-1/2”.
NOTCHING
Rectangular Notcher:  2-3/8” x 4” x 5/8”.
Electrical Interlock Safety Guard
Gauge Table with Stops:  For precise positioning.
Notcher Work Height:  36-1/2”.
OTHER STANDARD EQUIPMENT
Five (5) Sets of Punches and Dies:
Punches:  9/16”, 11/16”, 13/16”, 15/16”, 1-1/16”
Dies:  19/32”, 23/32”, 27/32”, 31/32”, 1-3/32”
CPD Series:  26 punch, 62 die
Magnetic Base Work Light
Adjustable Electrical Back Gauge (39”)
24 Volt DC Control Voltage
Scrap Boxes at Punching and Notching
Stations
Adjustable Stroke Depth at Punch
Two (2) Full-Control Foot Pedals
Two (2) Hole Die Holder|
Two (2) Piece Gauging Table at Punch Station
 Table comes with 39” X axis gauge
Keyed Punch Holder for Shaped Tooling
Standard Voltage 230/460 Volt, 3 Phase, 60Hz
Single Phase Machines:  Not Available.
Machine Net Weight:  13,200 lbs.
Machine Dimensions:  93” L x 38” W x 90” H
