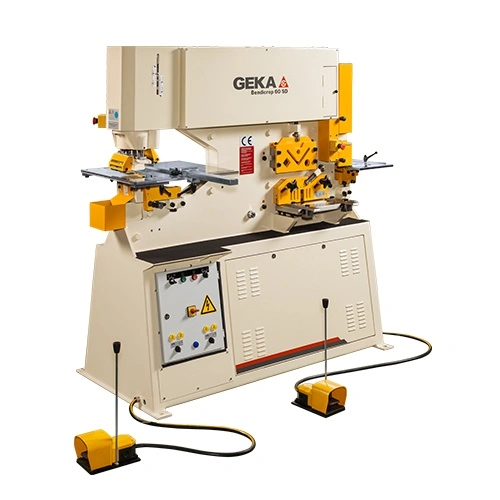

Geka Bendicrop 85 Ton Dual Cylinder Ironworker – NEW

Bendicrop 85 Hydraulic Ironworker
The Geka Bendicrop 85 is the Bendicrop Series model that offers the most punching power (93 US tons). Metal fabricators and construction companies will find the machine useful in performing simple bending operations.
Bendicrop 85 Hydraulic Ironworker Machine with an Integrated Bending Station and an Anti-Twist system
It includes two hydraulic cylinders, allowing it to be used by two operators at once, and a built-in bending station with a capacity of up to 8″ x ½”, making it unique in the market. Other stations include shearing, punching, and notching stations.
The Bendicrop 85 comes in two versions with different throat depths: an S version with a standard throat 12″ deep and an SD version with an extended throat depth of 20″.
Punching station with different throat depths and 93 US tons of Punching Power.
Flat Bars Shearing.
Bending Station.
Triangular Notching Station.
Angles, Round, and Square Bars Shearing Station.
BENDICROP 85 FEATURES AND SPECIFICATIONS
FEATURES
BENDICROP 85 Series
Punching Power
93 US Tons
Punching
Ø1-9/16” x ½”
Flat Bar Shearing
18” x 5/8” @ 2.5º
18” x 7/8” @ 5º
Shear of Angles at 90º
4” x 4” x 1/2”
Bending
8” x ½” with 2 “V” dies of 2” and 3-1/2” Openings
Triangular Notching
5” x 5” x ½”
Round and Square Bar
Ø1-3/4” Round, 1-9/16” Square
Capacities based on a material resistance of 65,000 tensile.
The manufacturer reserves the right to make modifications without prior notice.
The machine includes six workstations that perform different ironworking tasks:

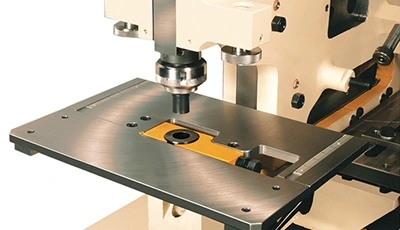

Punching station
Flat bar shearing station

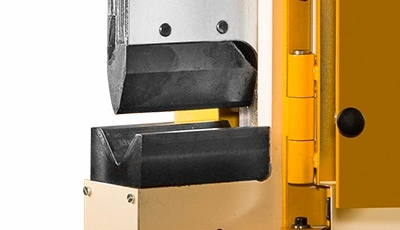

Built-in bending station
Triangular notching station
Angle cutting station
Round and square bar shearing station

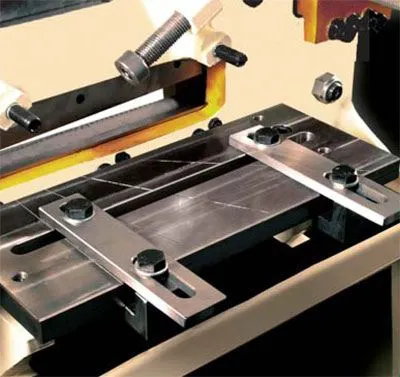

Fitted with an Anti-Torsion System to reduce deformation when shearing flat bars.
Bendicrop 85 model is fitted with a touch and cut length stop and is delivered with two V-shaped Bending Dies of 2” and 3.5”.
2 Punching Throat versions available:
S Version: 12” Standard Throat.
SD Version: 20” Extended Throat.
