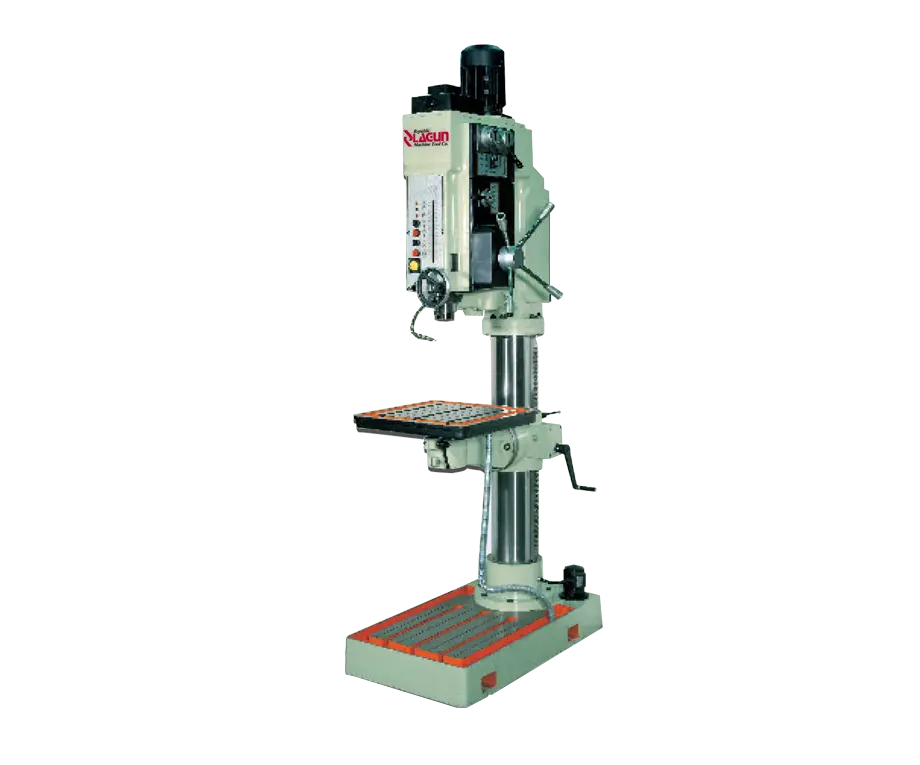

Lagun TCE Floor Drill – NEW

Lagun TCE Floor Drill – NEW

Capacity
Maximum Drilling Capacity in Steel
2.75”
Maximum Drilling Capacity in Cast Iron
2.95”
Maximum Tapping Capacity in Steel
2.36”
Morse taper No.
5
Maximum Drilling Depth
11.81”
Maximum Tapping Depth
11.81”
Motor
Main Motor
7.5 hp
Standard Speed 50 Hz–1,500 RPM
– Optional 1,000 RPM
– Optional 750 RPM
35 – 1,238 RPM
24 – 169 RPM
17 – 620 RPM
Drilling Feed Number
3
Drilling Feed Range
0.0019″ – 0.0039″ – 0.0059″ – 0.0078″ – 0.0137″ – 0.0196″
Motor Pump Cooling
0.20 hp
Weights
Weight Admitted by Worktable
716.50 lb
Approximate Machine Weight
2,535.30 lb
Packaging Data
Gross Weight with Packaging
3,064.40 lb
Volume
124.66 ft3
