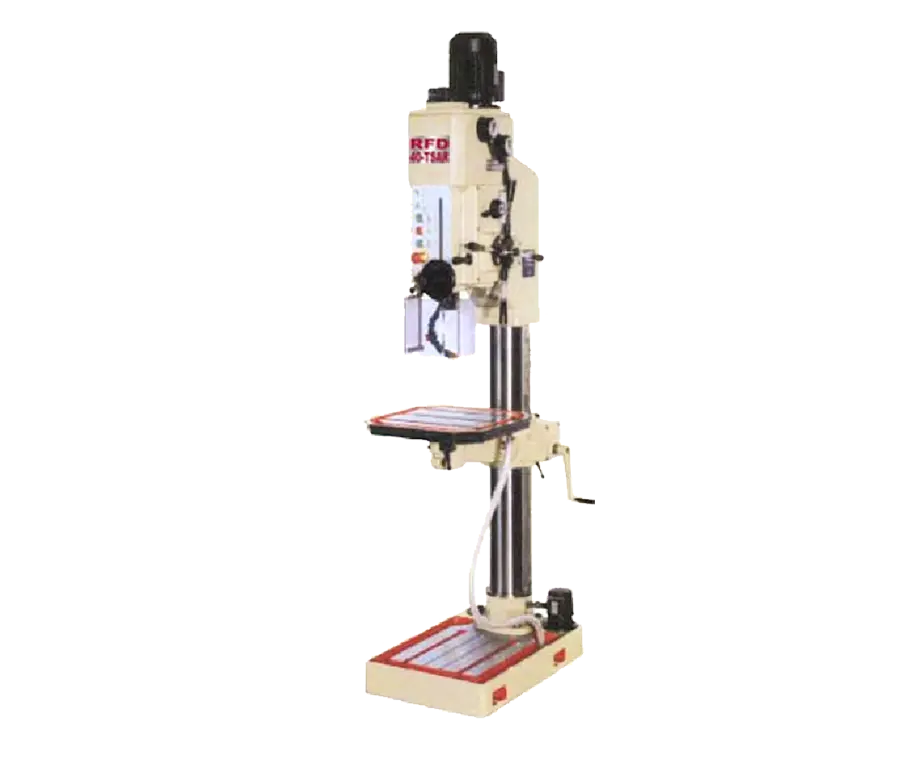

Lagun TSAR Floor Drill – NEW

Lagun TSAR Floor Drill – NEW

Capacity
40
45
Maximum Drilling Capacity in Steel
1.57″
1.77″
Maximum Tapping Capacity in Steel
1.25″
1.37″
Morse Taper No.
4
7”
7”
Maximum Drilling Depth
Maximum Tapping Depth
Motor
40
45
Main Motor
2 hp
3HP
Standard Speeds 50 Hz
93 – 1420 RPM
Standard Speeds 60 Hz
112 – 1704 RPM
Drilling Feed Number
3
Drilling Feed Range
0.0039” – 0.0071” -0.0095”
Motor Pump Cooling
0.10 hp
Weights
40
45
Weight Admitted by Worktable
441 lb
Approximate Machine Weight
881 lb
959 lbs.
Packaging Data
40
45
Gross Weight with Packaging
1,058 lb
1,246 lbs.
Dimensions
35.43” x 23.62” x 94.48”
41.34″ x 26.77″ x 98.43″
Volume
45.76 ft3
63.03 ft3
