Standard Features…
Drilling capacity in steel: 1″ (25mm) maximum
Drilling capacity in cast iron: 1.18″ (30mm) maximum
Tapping capacity in steel: .71″ (18mm) maximum
Tapping capacity in cast iron: .87″ (22mm) maximum
Depth scale and adjustable depth stop
“RS” models are equipped with automatic feed reversing TL25 system for tapping
Thermomagnetic switch
Spindle reversing switch
Automatic tool ejector
Emergency STOP
High/low speed range selector
Drill guard with microswitch
Models

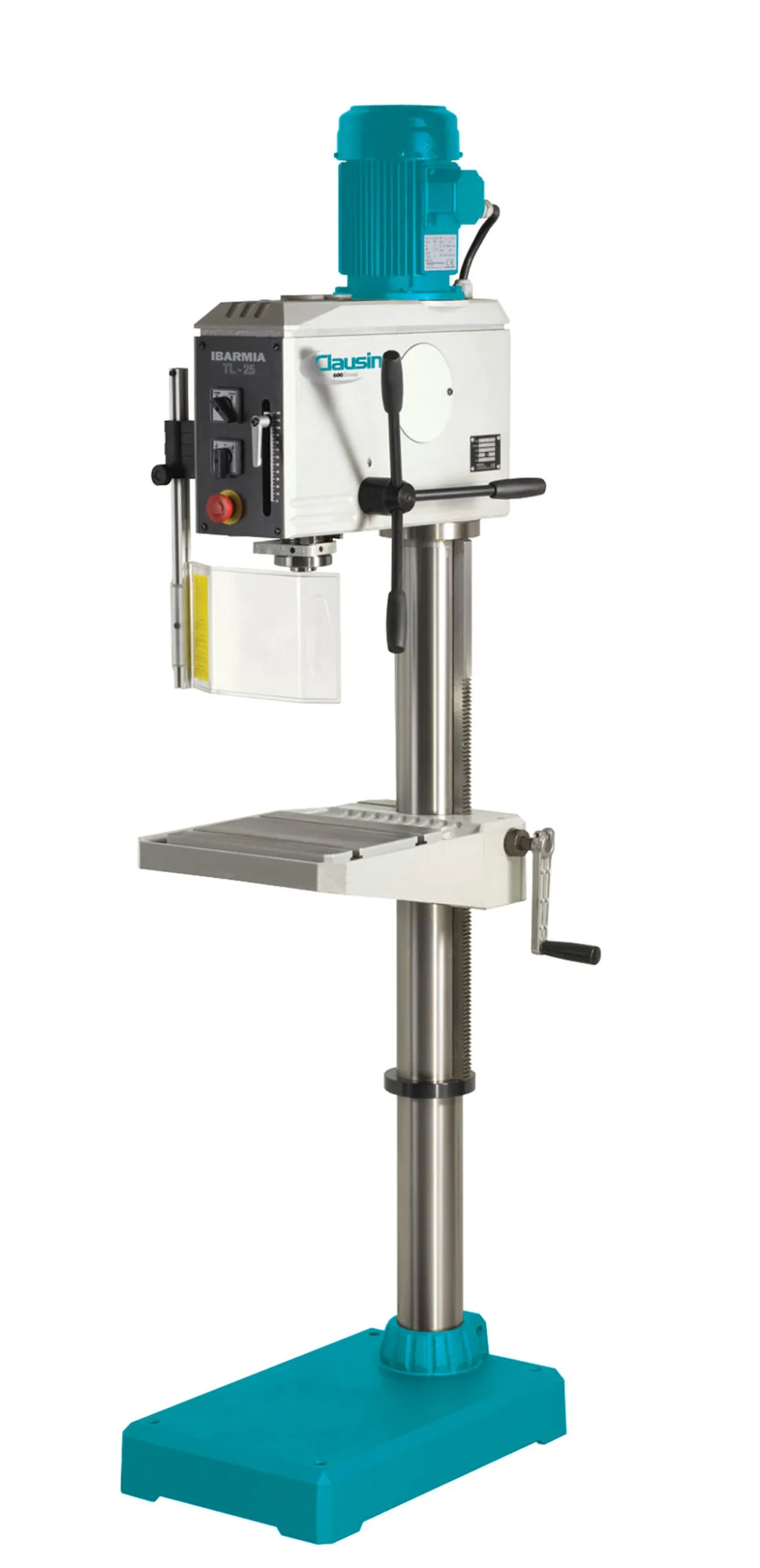

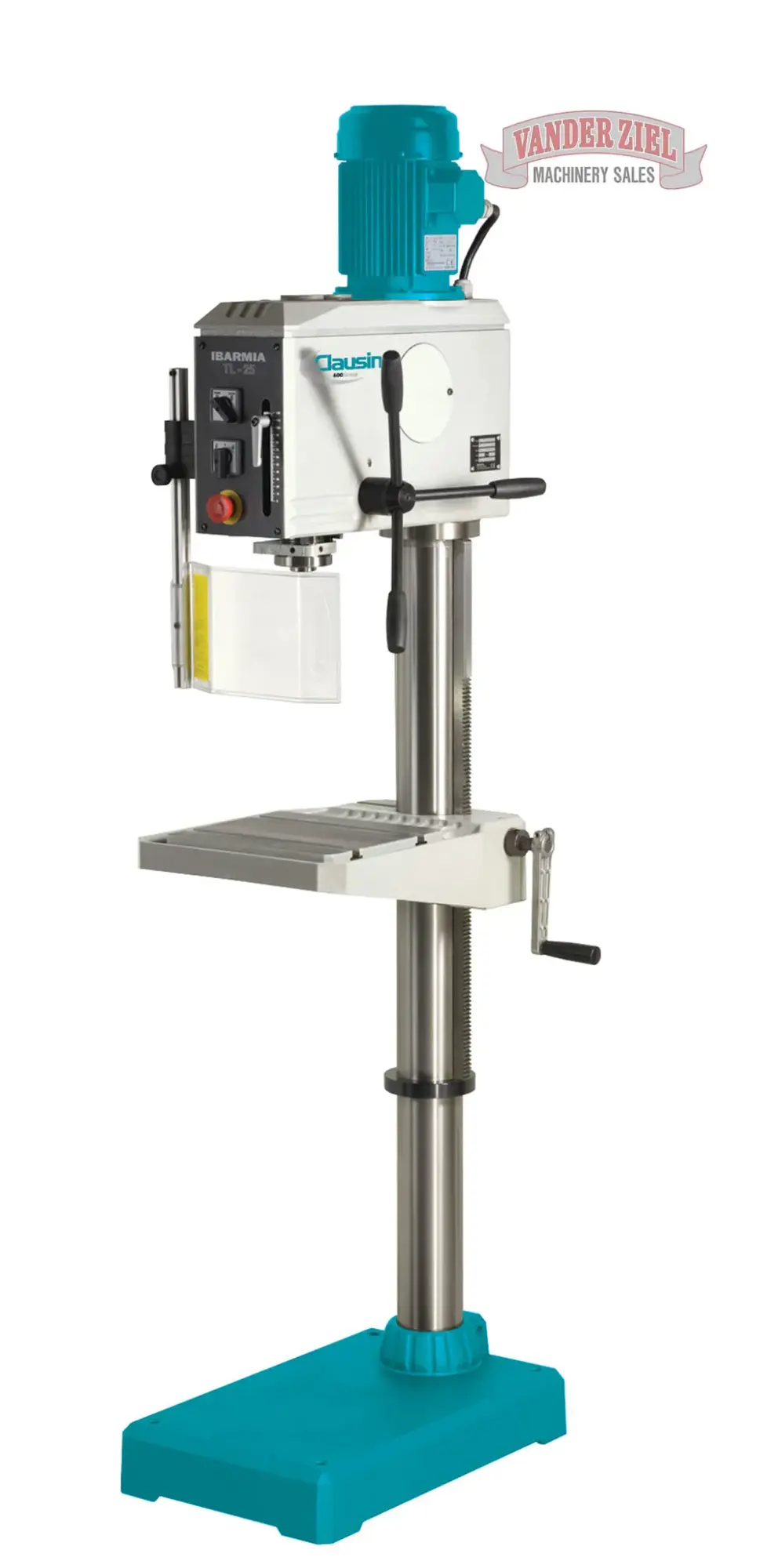

TL25
Auto feed reversing “RS” Models
TL25RS
Capacities
Maximum drilling capacity in steel
1″ (25mm)
Maximum drilling capacity in cast iron
1.18″ (30mm)
Maximum tapping capacity in steel
.71″ (18mm)
Maximum tapping capacity in cast iron
.87″ (22mm)
Specifications
Spindle taper
3MT
Quill diameter
2.44″ (62mm)
Spindle travel (drilling depth)
4.72″ (120mm)
Main motor power
1/1.5 Hp (.73/1.1 Kw)
No. of speeds (see speed charts)
8
Dimensions and Weights
Height (A)
75.8″
(1925mm)
Height (A1)
–
Base: length x width (B)
24″ x 15″ (600x380mm)
Base to spindle (C)
47.6″ (1210mm)
Spindle center to column (D)
9.84″ (250mm)
Spindle to Table (E)
Minimum
4.13″ (105mm)
Maximum
25.2″ (640mm)
Worktable: length x width (F)
Base height (G)
3.7″ (95mm)
Column diameter (H)
3.94″ (100mm)
Floor to top of base (I)
–
Cabinet height (J)
–
Net weight
408 lbs (185kg)
Shipping weight
496 lbs (225kg)
Shipping dimension (length x width x height)
20″ x 36″ x 75″ (.5 x .9 x 2.1m)
