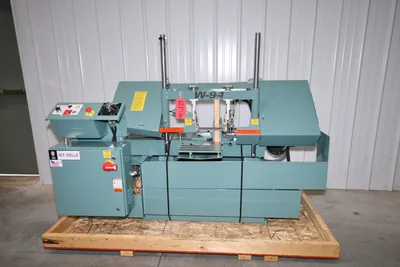

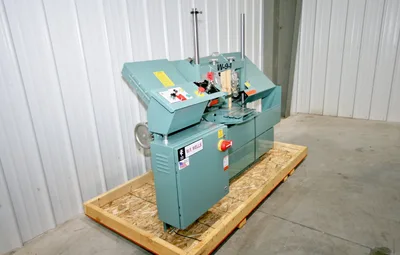

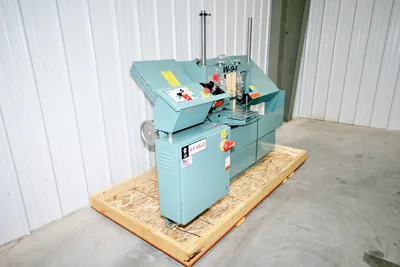

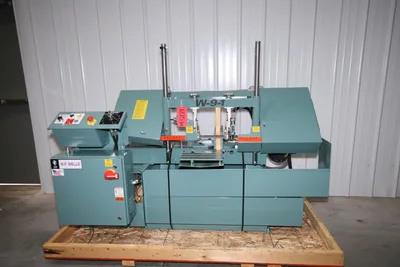

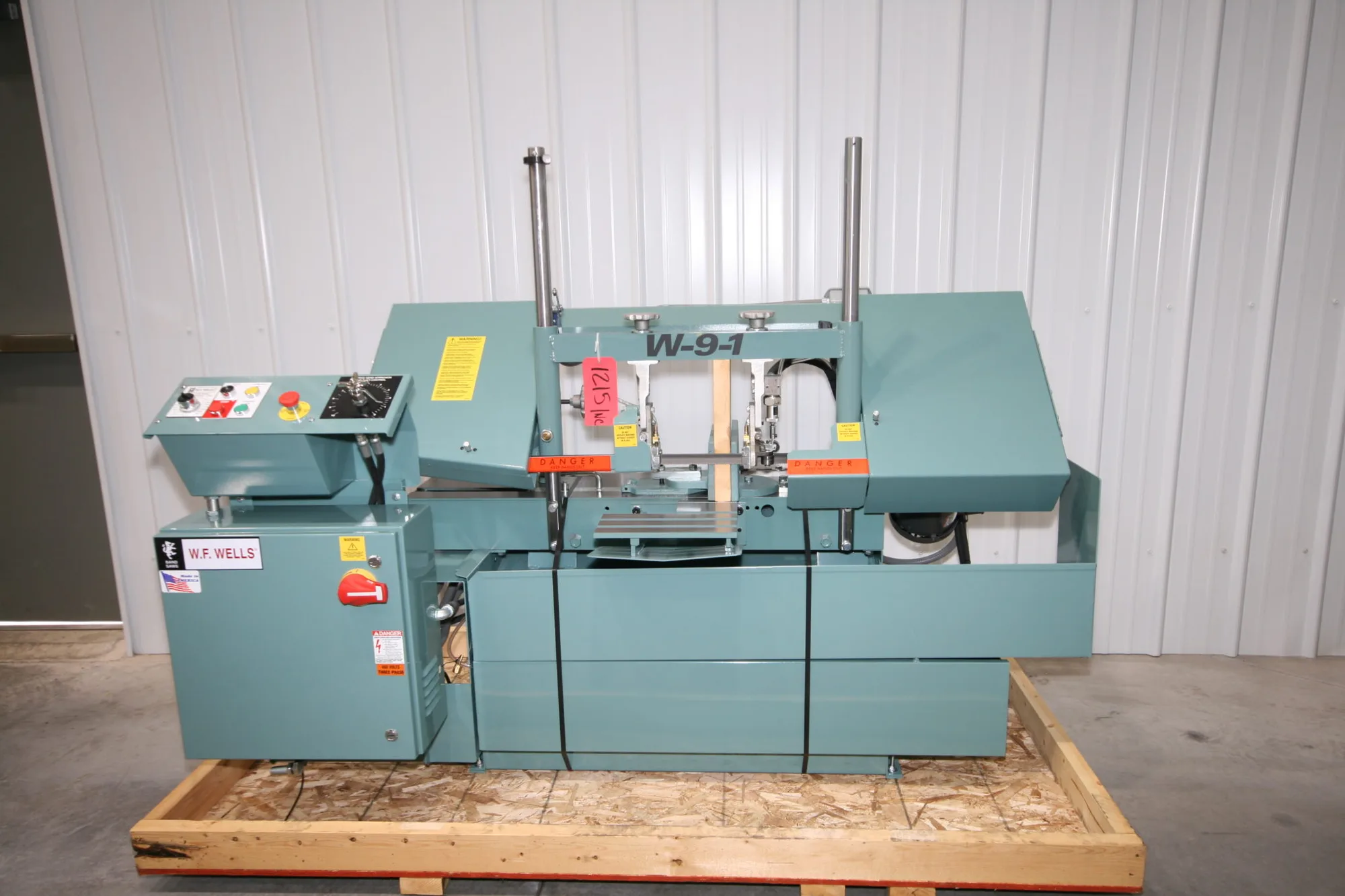

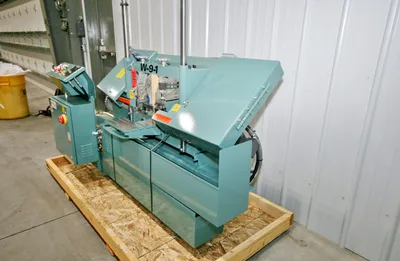

NEW W.F. WELLS W-9-1 HORIZONTAL SAW

Machine Specifications
Capacity: Rectangular at 90deg. 9″ High x 17″ Wide, Round at 90deg. 9″ Dia.
Rectangular at 45deg. 9″ High X 8″ Wide, Round at 45deg. 8″ Dia.
Weight Capacity: 2,000 lbs
Blade Speed: 70-380 SFPM
Blade Size: 1″ X .035″ X 11′-6″
Sawing Feed: Variable, Hydraulic
Blade Guide: Carbide with Backup Rollers
Blade Tension: Manual
Bandwheel Size: 14½”
Vise: Manual
Blade Drive: 3HP, 3ph, 1½ HP, 1ph
Sawing Force: 30-120 lbs
Coolant Capacity: 10 Gallons
Hydraulic Capacity: ¾ Gallon Capacity
Hydraulic Drive: ⅓ HP Motor
Work Height: 26″
Shipping Weight: 990 lbs
Machine Dimensions: 81″ Length x 43″ Width x 63″ Height
Electrics: Wired to NFPA 79 Machine Tool Standards
Preliminary Specifications – Subject to Verification
