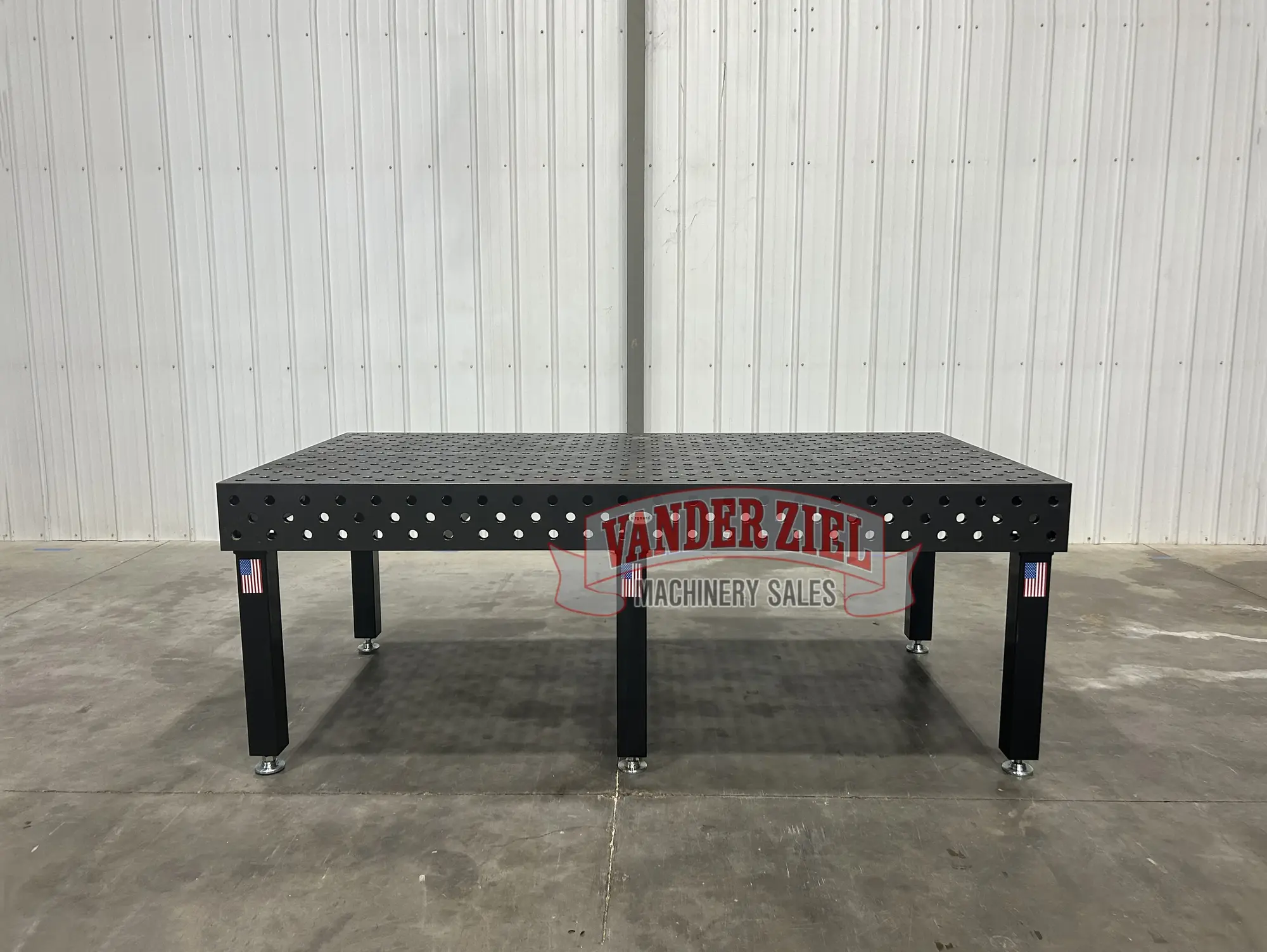

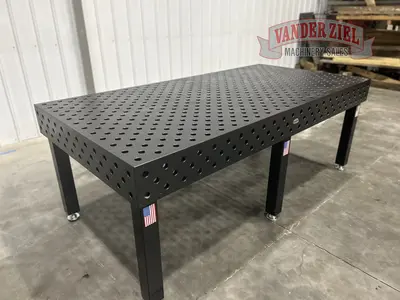

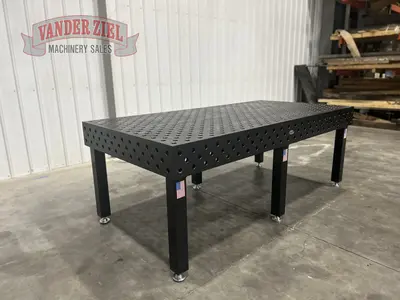

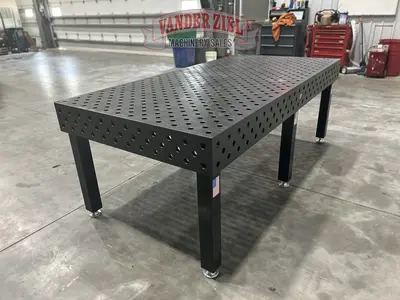

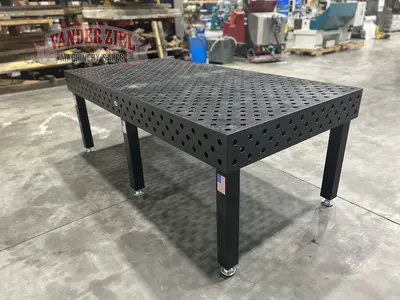

Siegmund Imperial Series System 28 4'x8' (48"x96") Welding Table with Plasma Nitration - NEW, Model US280030.XD7

Siegmund Imperial Series System 28 4'x8' (48"x96") Welding Table with Plasma Nitration - NEW
**Please notice the Imperial Series is a new product line, some of the metric tooling is not compatible with this line**
Asset #15573

Welding Table Specs and Features:

Overall Tabletop Size: 4' x 8' (48" x 96")

Borehole Diameter: Ø 28mm (1-1/10")

Welding Table Series: Professional Extreme 8.7 Series

Welding Table Material Thickness: Approx. 15/16" to 1-1/16"

Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated

Table Surface Hardness: 450-850 Vickers

Official Siegmund Welding Table Part No.: US280030.XD7

Maximum Weight Load: 24,210 lbs. (Based on Even Distribution)

Approximate Table Weight: 2,190 lbs.

Boreholes on the Surface are in a Diagonal Grid Configuration.

Boreholes have a diameter of 28mm (1-1/10"), Boreholes have a 1/10" Radius.

Radius 1/10" on the table edges and 1/4" on the corners.

Height of table side is 7-7/8" - Borehole in Diagonal Grid.

INCH Scale Engraved on the Surface.

Bottom of Structure has Reinforced Ribbing.

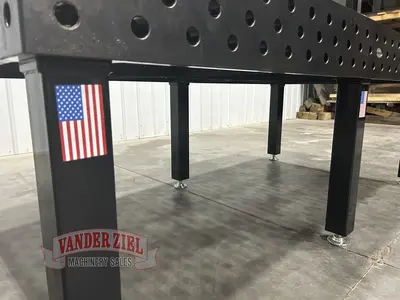

Standard Siegmund Leg(s)

Item No.: US280858.X

Leg Height: 28"

Table Height: 36"

Fine Adjustment: 2"

Capacity Per Table Leg: 4,400 lbs.

Cost Per Leg: $0 (Included with Welding Table as a Standard)

Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)
