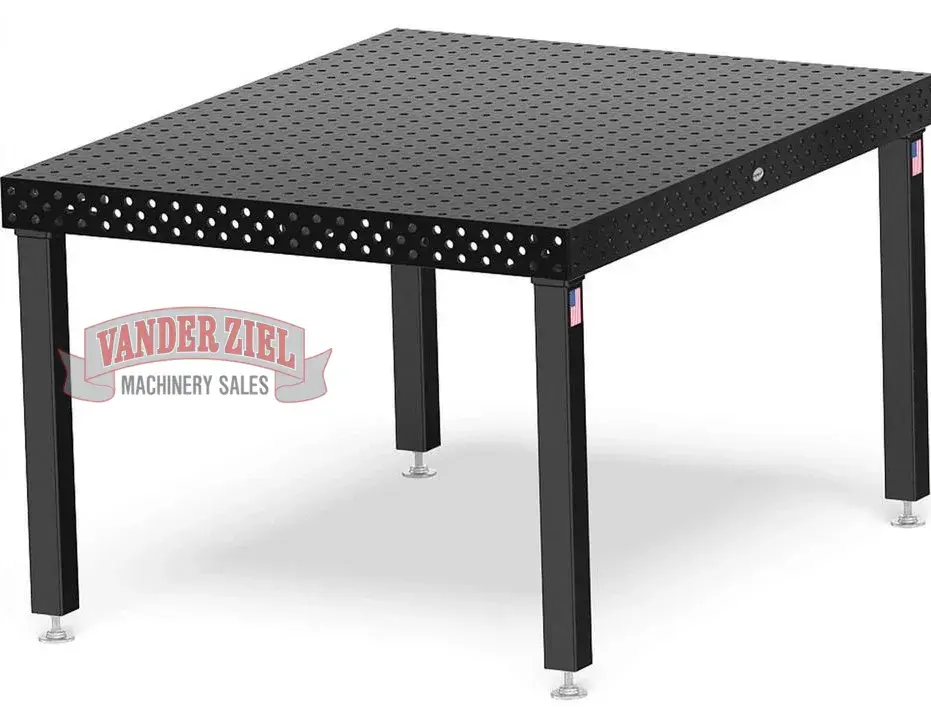

Siegmund Imperial Series System 16 4'x5' (48"x60") Welding Table with Plasma Nitration, Model US160035.X7

Siegmund Imperial Series System 16 4'x5' (48"x60") Welding Table with Plasma Nitration
**Please notice the Imperial Series is a new product line, some of the metric tooling is not compatible with this line**
Asset #15117

Welding Table Specs and Features:

Overall Tabletop Size: 4' x 5' (48" x 60")

Borehole Diameter: Ø 16mm (5/8")

Welding Table Series: Professional Extreme 8.7 Series

Welding Table Material Thickness: Approx. 7/16" to 1/2"

Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated

Table Surface Hardness: 450-850 Vickers

Official Siegmund Welding Table Part No.: US160035.X7

Maximum Weight Load: 8,075 lbs. (Based on Even Distribution)

Approximate Table Weight: 725 lbs.

Boreholes on the Surface are a 2"x2" Inch Grid Configuration.

Boreholes have a diameter of 16mm (5/8"), Boreholes have a 1/16" Radius.

Radius 1/10" on the table edges and 1/4" on the corners.

Height of table side is 3-5/16" - Borehole in Diagonal Grid.

INCH Scale Engraved on the Surface.

Bottom of Structure has Reinforced Ribbing.

1. Standard Siegmund Leg(s)

Item No.: US160858.X

Leg Height: 32"

Table Height: 36"

Fine Adjustment: 1-5/8"

Capacity Per Table Leg: 2,200 lbs.

Cost Per Leg: $0 (Included with Welding Table as a Standard)

Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)
