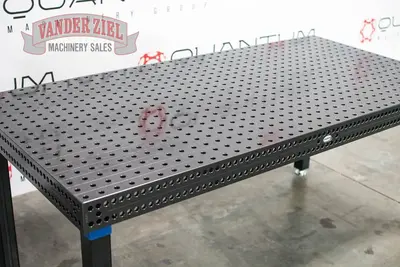

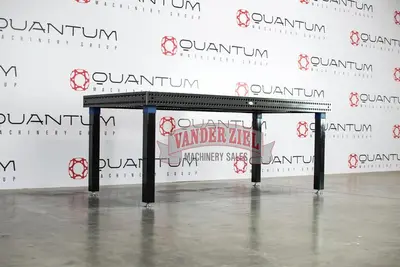

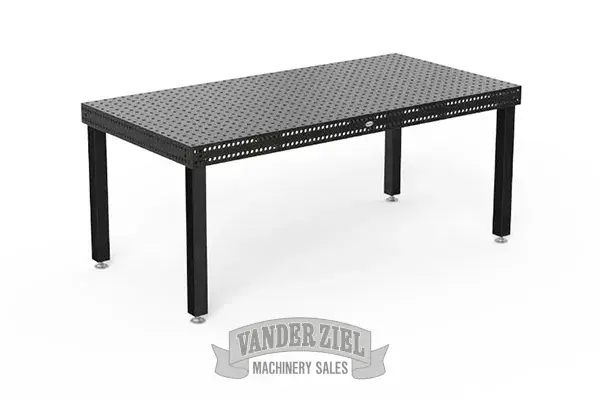

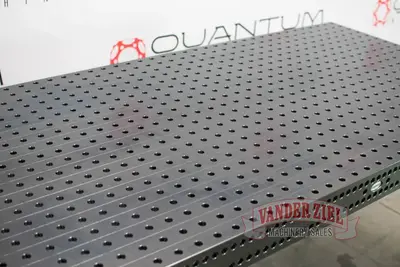

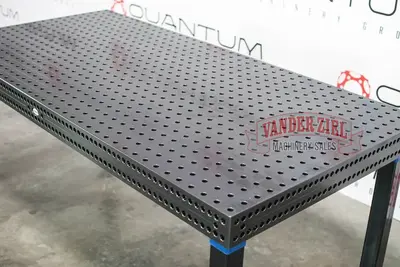

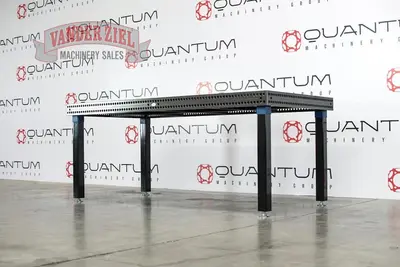

Siegmund 47" x 94" (1200x2400x100mm) Welding Table with Plasma Nitration, 1/2" Series (System 16), Model 4-160030.X7 - NEW

Siegmund 47" x 94" (1200x2400x100mm) Welding Table with Plasma Nitration, 1/2" Series (System 16), Model 4-160030.X7 - NEW
SKU # 13364
The System 16 Welding Table Series is the ideal choice for fine detail applications.

Welding Table Specs and Features:

Overall Tabletop Size: 2400x1200x100mm (94.48" x 47.24" x 3.93")

Welding Table Series: Professional Extreme 8.7 Series

Welding Table Material Thickness: Approx. 11.5 - 13mm (0.45" - 0.51")

Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated

Official Welding Table Part No.: 4-160030.X7

Approximate Table Weight: 1,109 lbs. / 503 kg.

Borehole: Ø 16mm (0.629")

Boreholes on the Surface: 50x50mm Grid (1.96"x1.96").

Boreholes have a radius of 2mm (0.078").

Radius 3mm (0.118") / 6mm (0.236") on table edges and corners.

Height of table side 100mm (3.93") - Borehole spacing of table side 25mm (0.98")

Metric Scaling on the surface.

Construction reinforced with ribbing.

Welding Table Leg Options
Part Numbers, Specs and Pricing:

Standard Siegmund Leg(s)

Item No.: 160858.X

Leg Height: 29.5" / 750mm

Table Height: 33.4" / 850mm

Fine Adjustment: 1.57" / 40mm

Capacity Per Table Leg: 2,200 lbs.

Cost Per Leg: $0 (Included with Welding Table as a Standard)

Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)
