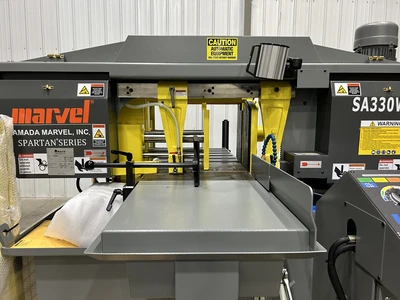

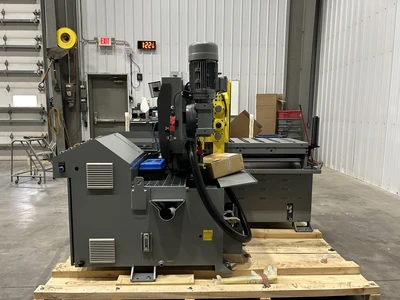

NEW MARVEL MANUFACTURING SA330WPC HORIZONTAL SAW

Serial #DSA330WPC-181
SPECIFICATIONS
Capacity 45 Degrees – Rectangle                                           11” x 13”
Capacity 45 Degrees – Round                                                11”
Capacity 90 Degrees – Rectangle                                           13″ x 16″
Capacity 90 Degrees – Round                                                13”
Minimum Round Remnant                                                     9”
Blade Size                                                                               13” 6-1/2″ x 1″ x .035″
Speed Range                                                                           95 – 295 SFPM
Blade Drive                                                                             5 H.P.
Hydraulic Pump                                                                      1/2 H.P.
Coolant Pump                                                                         1/8 H.P.
Packing Size                                                                           90″ x 86″ x 68″ Machine Weight       2904 lbs.net / 3190 lbs. Gross
Mitering: Manually positioned to 45°right, equipped with degree scale.
Blade Tension: Hydraulically controlled tension provides consistent square cutting accuracy.  The motion detector will shut the machine off should the blade break or stall.
Speed Range:Blade speed is variable through an inverter drive and a heavy-duty worm gear transmission.  Blade speeds are 65 – 330 SFPM.  The broad speed range allows for optimum cutting of a large variety of materials.  An electric tachometer assures accurate speed setting.
Hydraulic Down Feed:  Feed rate and down pressure can be controlled independently for fast, accurate cutting.  Setup is made easy through the color-coded dial allowing the operator to select the optimum setting for the type of material being cut.  Both settings are made at the operator’s station.
Hydraulic Shuttle Feed:  Length settings of 0 – 27.6″ are accomplished with simple programming at the operator’s touch screen.  The shuttle comes to positive stops at both ends of the index, assuring cutoff length accuracy, reducing material loss.  Repeatability is ± .005 per index.
PC Programmable Control: Conveniently located on the operator’s control panel, this touch screen control allows the operator to program and store up to ten jobs.  Inputs include Part Length from 0 to 393.33″ (in inches up to 3 decimal places) and Number of Pieces to be cut.  The Blade Speed is displayed on and set using the touch screen, but is not stored in memory.  The Automatic Piece Counter stops each job when the pre-set number of cuts has been made.  The control provides the option of running up to 10 jobs consecutively.
Out-of-Stock Switch: The machine will shut off automatically when material is no longer present in the rear vise jaws, allowing for truly automatic operation.
Blade Guides: The combination roller bearing and carbide blade guides reduce heat and blade stress providing longer blade life and accuracies of ± .002 per inch of cut material.
Fast Approach:Work height is manually set allowing the head to rise just enough to clear the work piece, reducing cycle time and allowing for faster cutting performance.
Chip Brush:  Powered from the main drive wheel of the saw, the brush changes speed along with the blade to assure that chips are being removed from each gullet of the blade, improving cutting performance and blade life.
Full Stroking Hydraulic Vise Jaws:Holding the work piece on both sides of the blade reduces blade vibration, providing more accurate cuts and longer blade life.  Rear Vise:  The rear vise jaw floats hydraulically to accommodate crooked stock assuring straight, accurate cuts.

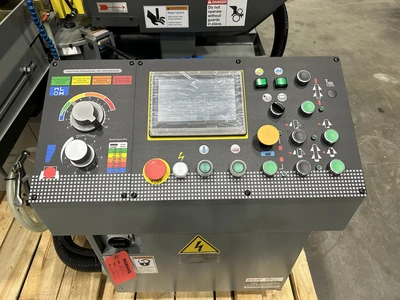

Operators Control Panel:  Conveniently mounted on the right hand side of the machine and offers full control of all machine functions such as; Vises, Blade Speed, Saw Frame, Bundle Clamping, Parts Counter, Shuttle Advance & Retract, Coolant and Work Light.
Work Light:  Positioned directly over the work area to provide better illumination of the cutting area, the work light can be turned on and off independently from the operator’s control panel.
Included Accessories:
PA19111 – Automatic Chip Removal
Model
SA330WPC
Cutting Capacity
Round (Diameter) at 90°
13″
330 mm
Round (Diameter) at 45°
11″
280 mm
Rectangle (W x H) at 90°
16″ x 13″
406 x 330 mm
Square at 90°
13″ X 13″
330 x 330 mm
Rectangle (W x H) at 45°
15″ x 15″
380 x 380 mm
Work Load Capacity
Saw Blade
Blade Size (L x T x W)
13’7″ x 0.035″ x 1″
Blade Speed
95-295 SFPM
29-90 m/min
Tension Control
Hydraulic
Blade Control
Top Limit Setting
Manual Setting
Cutting Control
Hydraulic Flow Control Valve
Vise Operation
Type
Main and Rear Vise
Control
 Hydraulic Full-Stroke Cylinder
Motors
Saw Blade
5 HP
3.7 kW
Hydraulic Pump
1/2 HP
0.37 kW
Cutting Fluid Pump
1/8 HP
0.06 kW
Power Requirement
Power Supply Voltage
AC230V±10% or AC460V±10%, 3 PH, 60 Hz,
Required at Factory Voltage Setting
Power Requirement
Cutting Fluid
Tank Capacity
14.5 gal
55 liters
Hydraulic
Tank Capacity
 4.0 gal
15 liters
Pressure Setting
Chip Disposal
 Chip Conveyor
Material Index
Index Mechanism
Shuttle Vise
Stroke
 15.7″
400 mm
Length
Number of Input Block/Station
Number of Cut-Off Pieces
Remnant Length
Machine Dimensions (W x L x H)
Head-Up Position
110.5″ x 94.3″ x
2807 x 2395 x
Head Down Position
 110.5″ x 94.3″ x 65.5″
2807 x 2395 x 1665 mm
Table Height
27.6″
700 mm
Machine Weight
3,175 lbs
1,440 kg
