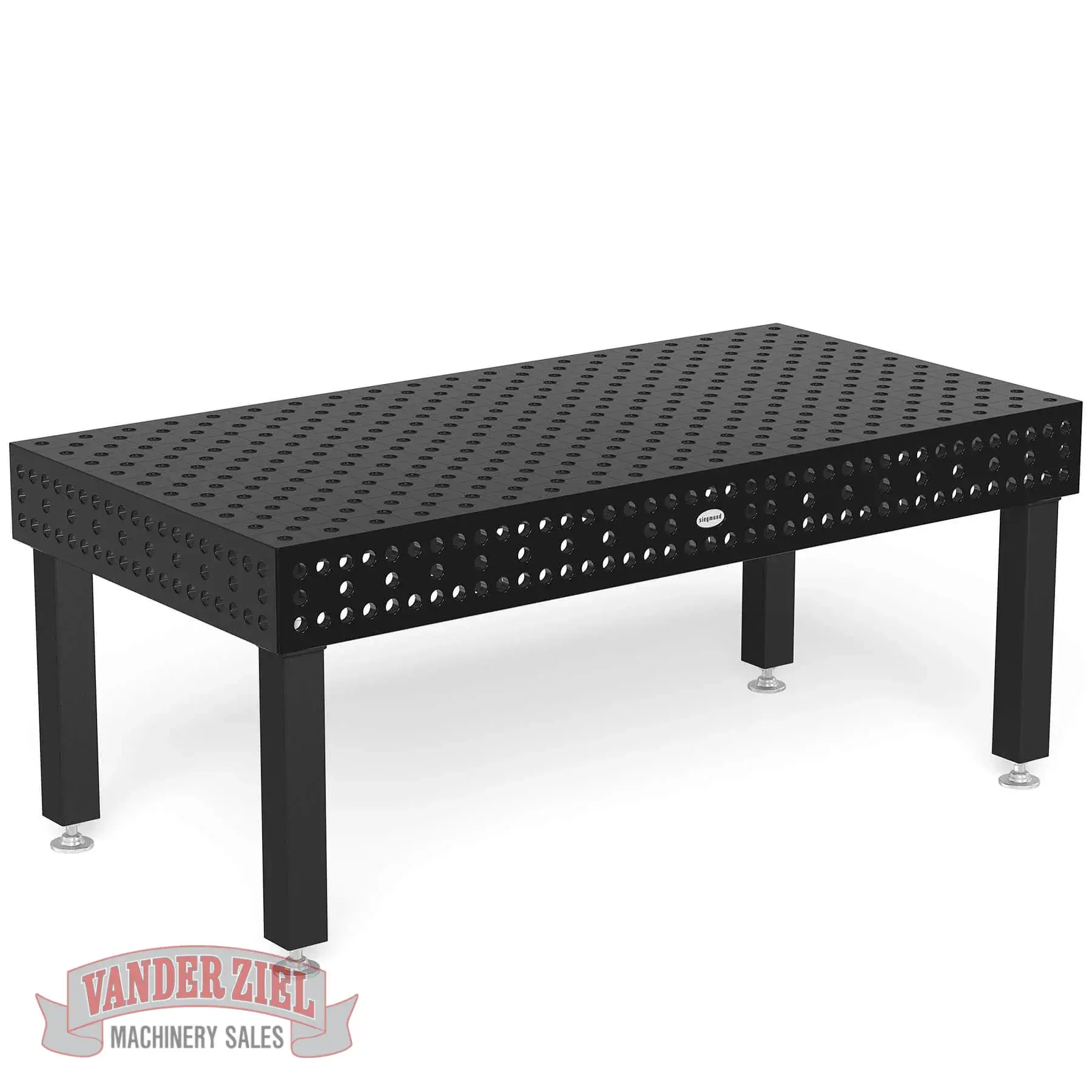

Siegmund 2,000x1,000mm 8.7 Series System 28 Welding Table, Model 4-280020.XD7D - NEW

Siegmund 2,000x1,000mm 8.7 Series System 28 Welding Table - NEW
Asset # 17336N

Welding Table Specs and Features:

Overall Tabletop Size: 2,000 x 1,000 x 200mm (78.74" x 39.37" x 7.87")

Borehole: Ø 28mm (1.10")

Welding Table Series: Professional Extreme 8.7 Series

Welding Table Material Thickness: Approx. 24.5 - 27mm (0.96" - 1.06")

Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated

Table Surface Hardness: 450-850 Vickers

Official Siegmund Welding Table Part No.: 4-280020.XD7D

Maximum Weight Load: 10,192 lbs. (Based on Even Distribution)

Approximate Table Weight: 1,541 lbs. / 699 kg.

Boreholes on the Surface are in a Diagonal Grid Configuration.

Boreholes have a radius of 3mm (0.118").

Radius 3mm (0.118") / 6mm (0.236") on table edges and corners.

Height of table side 200mm (7.87") - Borehole spacing of table side 50mm (1.96")

Metric Scaling on the surface.

Construction reinforced with ribbing.
