OVERVIEW
NOTE: This system was completely rebuilt and never put back into service. Excellent condition with minimal operating hours since rebuild.

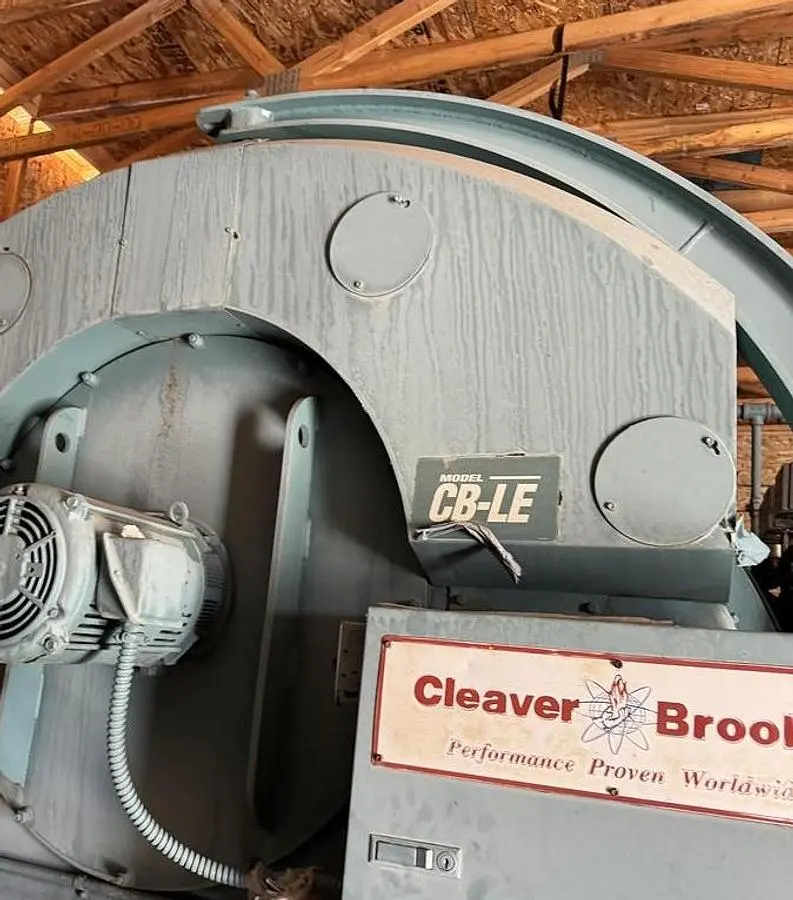

Cleaver Brooks CB Packaged Boiler - Model CB200 (CBLE Configuration), Serial Number L-99065, Date 8/07/02. Professional-grade natural gas/oil dual-fuel capable low pressure packaged steam boiler featuring 12,767,817 BTU/HR input capacity with 250 horsepower rating at 15 PSI maximum allowable working pressure. Complete industrial packaged system with integrated control systems and 460V three-phase electrical package rated at 20 amps. Built to ASME standards with dual-fuel capability for natural gas (4.9 GPH equivalent) or fuel oil operation. Minimum circuit ampacity 23.5 amps with maximum circuit protection rating of 80 amps. Gas/oil fired boiler assembly with emission reduction equipment (Model Number AN52212). Previously rebuilt and never returned to service - excellent condition. Complete boiler assembly with all trim and controls installed, including 10 HP blower motor and oil pump motor systems. Heavy-duty industrial construction ideal for large commercial facilities, industrial plants, institutional applications, manufacturing operations, or any facility requiring high-capacity steam generation with proven Cleaver Brooks reliability and dual-fuel operational flexibility.
EQUIPMENT SPECIFICATIONS

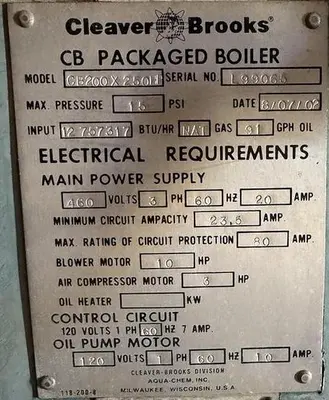

Boiler Model Information:
Manufacturer: Cleaver Brooks Division
Product Line: CB Packaged Boiler
Model Number: CB200 (CBLE Configuration)
Serial Number: L-99065
Date: 8/07/02
Configuration: Packaged low pressure steam boiler
Type: Natural gas/oil dual-fuel capable
Horsepower: 250 HP
Performance Ratings:
BTU Input: 12,767,817 BTU/HR
Horsepower: 250 HP
Maximum Allowable Working Pressure: 15 PSI
Fuel Type: Natural Gas / Oil
Gas Consumption: 4.9 GPH equivalent
Oil Consumption: Per application requirements

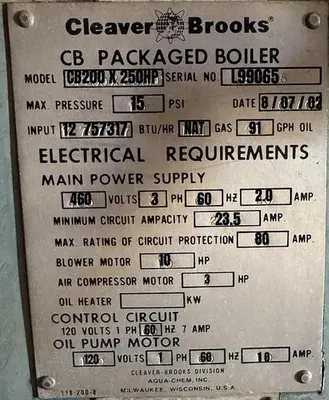

Electrical Specifications:
Main Power Supply: 460V, 3-Phase, 60 Hz, 20 Amps
Minimum Circuit Ampacity: 23.5 Amps
Maximum Rating of Circuit Protection: 80 Amps
Control Circuit: 120V, 1-Phase, 60 Hz, 7 Amps
Blower Motor: 10 HP

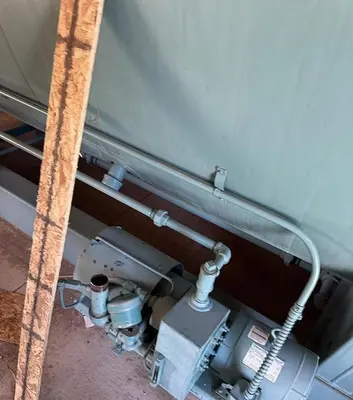

Oil Pump Motor: 120V, 1-Phase, 60 Hz, 10 Amps

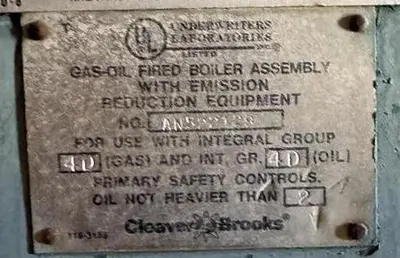

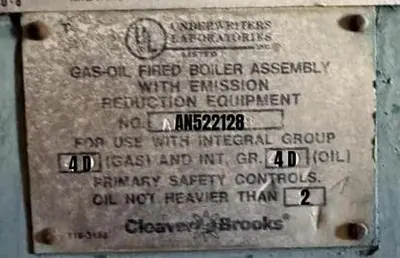

Emission Control:
Gas/Oil Fired Boiler Assembly with Emission Reduction Equipment
Model Number: AN52212
For use with Integral Group 40 (Gas) and Integral Group 40 (Oil)
Primary Safety Controls included
Physical Configuration:
Configuration: Packaged low pressure boiler
Mounting: Skid-mounted for stationary installation
Origin: USA
KEY FEATURES & BENEFITS
Cleaver Brooks Quality Manufacturing:
Premium USA boiler manufacturer
2002 manufacture date
CB Packaged Boiler series
CBLE low pressure configuration
Heavy-duty commercial/industrial construction
Professional engineering and design
Milwaukee, Wisconsin manufacturing
Proven reliability in demanding applications
Rebuilt System - Never Returned to Service:
Complete system rebuild performed
Never put back into service after rebuild
Excellent condition with minimal operating hours
Modern components and systems
Ready for immediate installation
Extended service life
Turnkey solution
Investment-ready equipment
High-Capacity Performance:
250 horsepower rating
12,767,817 BTU/HR input
15 PSI low pressure design
Heavy-duty industrial capacity
Continuous duty rated
Large-scale steam generation
Robust packaged design
Commercial/industrial grade
Dual-Fuel Capability:
Natural gas primary operation
Fuel oil secondary capability
Operational flexibility
Fuel cost optimization
Backup fuel option
Site fuel availability adaptation
4.9 GPH gas equivalent consumption
Professional dual-fuel train
Emission Reduction Equipment:
Integrated emission reduction system
Model AN52212
Environmental compliance
Reduced emissions profile
Modern emission standards
Clean combustion technology
Regulatory compliance ready
Professional engineering
Packaged Boiler Design:
Complete factory-assembled package
Integrated burner and controls
Pre-wired electrical systems
All trim and controls installed
Simplified installation
Reduced field labor requirements
Factory-tested components
Professional assembly quality
Robust Electrical Systems:
460V three-phase power supply
20 amp main power rating
23.5 amp minimum circuit ampacity
80 amp maximum circuit protection
120V control circuit
10 HP blower motor
Oil pump motor included
Professional electrical package
Industrial-Grade Construction:
Heavy-duty pressure vessel design
Proven Cleaver Brooks engineering
Durable steel construction
Professional-grade components
Long service life design
Minimal maintenance requirements
Industrial reliability
Commercial quality throughout
Safety & Compliance:
15 PSI ASME low pressure design
Factory safety controls installed
Low water cutoff protection
Flame safeguard system
Multiple safety interlocks
Emergency shutdown capability
Code-compliant construction
Professional safety engineering
SYSTEM COMPONENTS

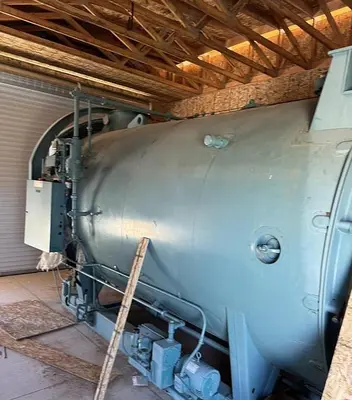

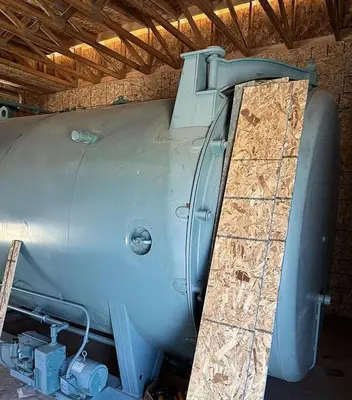

Main Boiler:
Cleaver Brooks Model CB200 (CBLE)
Serial Number L-99065
Date 8/07/02
250 horsepower rating
Packaged boiler design
12,767,817 BTU/HR capacity
15 PSI MAWP
Low pressure configuration
Complete with all trim
Rebuilt condition

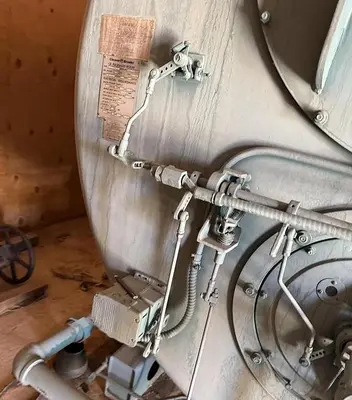

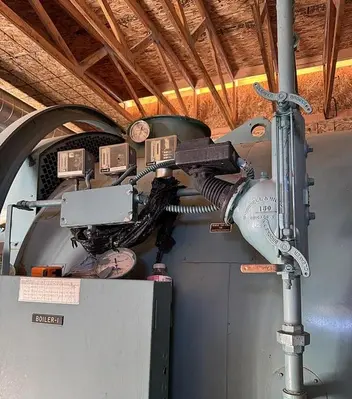

Burner System:
Dual-fuel burner assembly
Natural gas/oil capability
Forced draft combustion
Gas train components
Oil supply system
Safety shut-off valves
Flame safeguard system
Professional burner management
10 HP blower motor
Emission Control System:
Emission reduction equipment
Model AN52212
Integral Group 40 (Gas)
Integral Group 40 (Oil)
Primary safety controls
Environmental compliance
Clean combustion technology

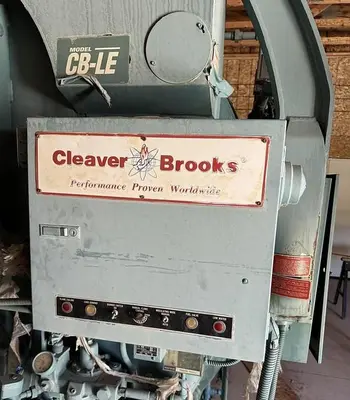

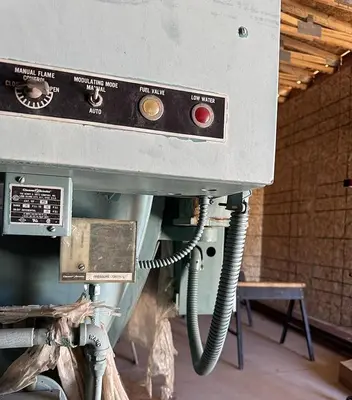

Control Systems:
Integrated control panel
Model CB-LE controls
Burner management system
Flame safeguard controls
Operational diagnostics

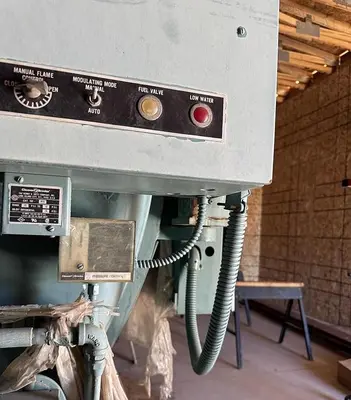

Manual flame control
Modulating mode selector
Fuel valve controls
Low water indicator
Safety interlocks
120V control circuit
Electrical Components:
460V 3-phase power supply (20A)
120V control circuit (7A)
Blower motor (10 HP)
Oil pump motor (120V, 10A)
All wiring and connections
Disconnect provisions
Circuit protection
Professional installation
Safety & Instrumentation:
Low water cutoff protection
Safety relief valve
Pressure gauge
Temperature sensors
Water level controls
Fuel pressure monitoring
Flame supervision
Emergency shutdown capability
Manual flame control
Water System:
Feedwater connections
Water level controls
Feedwater valves
Piping connections
Blowdown valve
Drain connections
Level indication
Low water protection

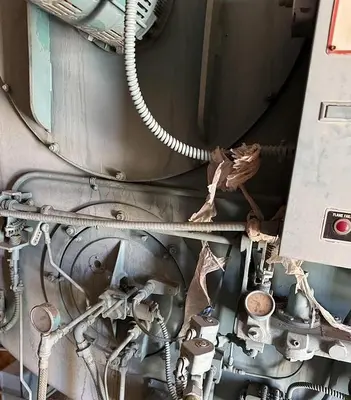

Fuel System:
Gas pressure regulator
Manual gas valve
Safety shut-off valves
Gas pressure switches
Oil supply system
Dual-fuel train
Safety interlocks
Professional fuel components
4.9 GPH gas consumption rating
Mounting System:
Heavy-duty boiler skid
Skid-mounted configuration
Structural steel base
Foundation mounting provisions
Professional assembly
Ready for installation
SPECIFICATIONS SUMMARY
Boiler:
Manufacturer: Cleaver Brooks Division, Aqua-Chem, Inc.
Location: Milwaukee, Wisconsin, USA
Model: CB200 (CBLE Configuration)
Serial No: L-99065
Date: 8/07/02
Type: CB Packaged low pressure steam boiler
Fuel: Natural Gas / Oil
Input: 12,767,817 BTU/HR
Horsepower: 250 HP
Max Pressure: 15 PSI
Gas Consumption: 4.9 GPH equivalent
Origin: USA
Fuel Supply:
Primary: Natural Gas
Secondary: Fuel Oil
Gas Rating: 4.9 GPH equivalent
Dual-Fuel Capable: Yes
Electrical:
Main Supply: 460V, 3-Ph, 60 Hz, 20A
Min Circuit: 23.5 Amps
Max Protection: 80 Amps
Control: 120V, 1-Ph, 60 Hz, 7A
Blower Motor: 10 HP
Oil Pump: 120V, 1-Ph, 60 Hz, 10A
Emission Control:
Model: AN52212
Type: Gas/Oil fired with emission reduction
Integral Group: 40 (Gas) / 40 (Oil)
Configuration:
Type: Packaged low pressure
Model: CB-LE
Mounting: Skid-mounted
Condition: Rebuilt, never returned to service
ADDITIONAL INFORMATION
Condition: Rebuilt - Never Returned to Service, Excellent Condition
Manufacturer: Cleaver Brooks Division, Aqua-Chem, Inc.
Manufacturing Location: Milwaukee, Wisconsin, USA
Product Line: CB Packaged Boiler
Model: CB200 (CBLE Low Pressure Configuration)
Serial Number: L-99065
Date Built: 8/07/02
Fuel Type: Natural Gas / Oil (Dual-Fuel Capable)
BTU Input: 12,767,817 BTU/HR
Horsepower Rating: 250 HP
Maximum Allowable Working Pressure: 15 PSI (Low Pressure Design)
Gas Consumption: 4.9 GPH equivalent
Electrical Requirements:
Main Power Supply: 460V, 3-Phase, 60 Hz, 20 Amps
Minimum Circuit Ampacity: 23.5 Amps
Maximum Rating of Circuit Protection: 80 Amps
Control Circuit: 120V, 1-Phase, 60 Hz, 7 Amps
Blower Motor: 10 HP
Oil Pump Motor: 120V, 1-Phase, 60 Hz, 10 Amps
Emission Control: Gas/Oil Fired Boiler Assembly with Emission Reduction Equipment (Model AN52212)
Control System: CB-LE integrated control panel with burner management
Burner System: Dual-fuel burner assembly with 10 HP blower motor
Rebuild Status:
System completely rebuilt
Never put back into service after rebuild
Excellent condition with minimal operating hours since rebuild
All components refurbished or replaced
Ready for immediate installation
Extended service life remaining
Investment-ready turnkey solution
Safety Features:
Low water cutoff protection
Safety relief valve
Flame supervision system
Multiple safety interlocks
Emergency shutdown capability
Pressure relief protection
Fuel pressure monitoring
Professional safety controls
Emission reduction equipment
Installation Notes:
Skid-mounted for easy installation
All boiler components intact and rebuilt
Ready for permanent installation
Requires site preparation and foundation
Professional rigging recommended for installation
Electrical hookup by licensed electrician
Fuel connections by licensed professional
Professional commissioning recommended
Features:
Cleaver Brooks CB Packaged Boiler design
2002 year of manufacture
CBLE low pressure configuration (15 PSI)
250 horsepower industrial capacity
12,767,817 BTU/HR input rating
Dual-fuel capability (natural gas/oil)
Natural gas consumption rated 4.9 GPH equivalent
Complete system rebuild performed
Never returned to service after rebuild
Excellent condition with minimal operating hours
Emission reduction equipment included (Model AN52212)
Integral Group 40 for gas and oil
Primary safety controls integrated
Heavy-duty industrial-grade construction
Complete factory-packaged assembly
Integrated burner and control systems
Professional electrical package (460V 3-phase)
20 amp main power rating
23.5 amp minimum circuit ampacity
80 amp maximum circuit protection
120V control circuit (7 amps)
10 HP blower motor
Oil pump motor included (120V, 10A)
CB-LE control panel with manual flame control
Modulating mode operation
Low water indicator and protection
Flame safeguard system
Safety relief valve
All safety trim and controls installed
Skid-mounted for permanent installation
Foundation mounting ready
Proven Cleaver Brooks reliability
Milwaukee, Wisconsin USA manufacturing
Ready for natural gas or oil connection
System completely rebuilt - never returned to service
Excellent investment-ready condition
Professional-grade commercial/industrial construction
* Manufacturer: Cleaver Brooks Division
* Product Line: CB Packaged Boiler
* Model Number: CB200 (CBLE Configuration)
* Serial Number: L-99065
* Date: 8/07/02
* Horsepower: 250 HP
* Type: Natural gas/oil dual-fuel capable
