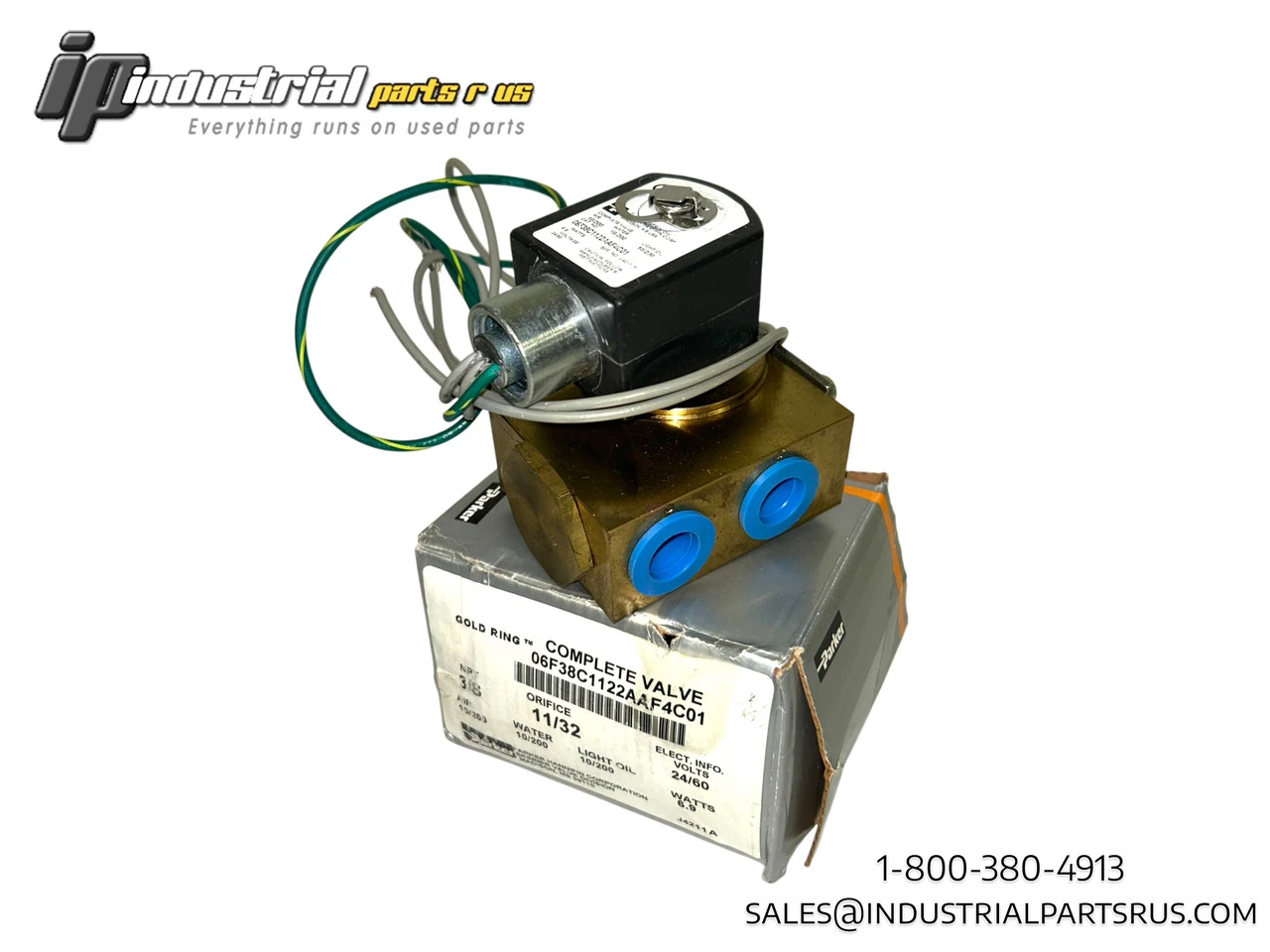

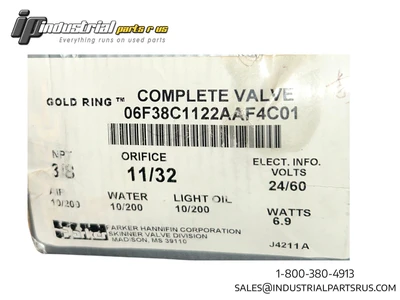

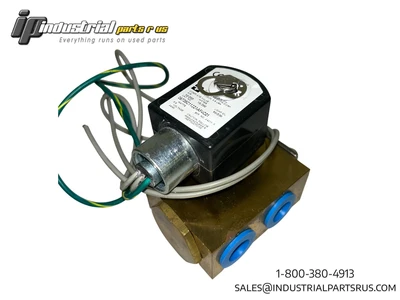

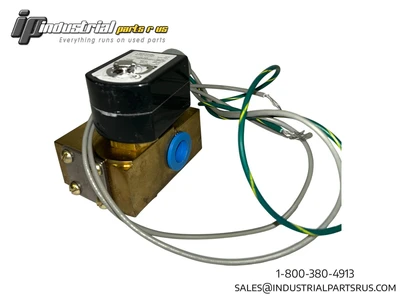

USED PARKER 06F38C1122AAF4C01

The Parker 06F38C1122AAF4C01 is a high-performance 3-way piston piloted solenoid valve from the Gold Ring series, designed for reliable fluid control in industrial applications. This normally closed valve features a brass body with NBR seals and 3/8 inch NPT threaded ports. Ideal for general purpose applications including air, water, light oil, and gases in automation systems, process control, and industrial equipment.
Specifications
3-Way 2-Position Normally Closed
3/8 Inch NPT Threaded Ports
Piston Piloted Operation
Brass Body Construction
NBR (Nitrile) Seal Material
Operating Pressure: Up to 600 PSI
Maximum Media Temperature: 180°F (82°C)
Voltage: 120V AC 60Hz / 110V AC 50Hz
Power: 11W
DIN 43650A / ISO4400 Connector
Suitable for Air, Water, Light Oil, and Inert Gases

SKU: IP16215
UPC: 721814247800
Condition: Used
Availability: In Stock
Weight: 5.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814247800
Manufacturer: Parker
Shelf: A-7 Tub 2
Model: 06F38C1122AAF4C01
MPN: 06F38C1122AAF4C01
Type: Solenoid Valve
