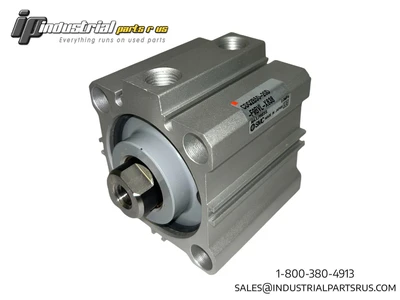

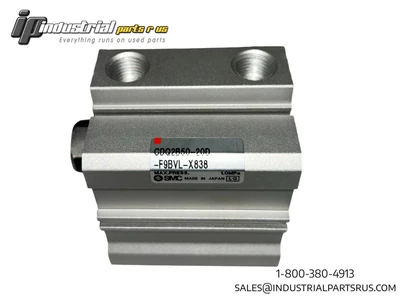

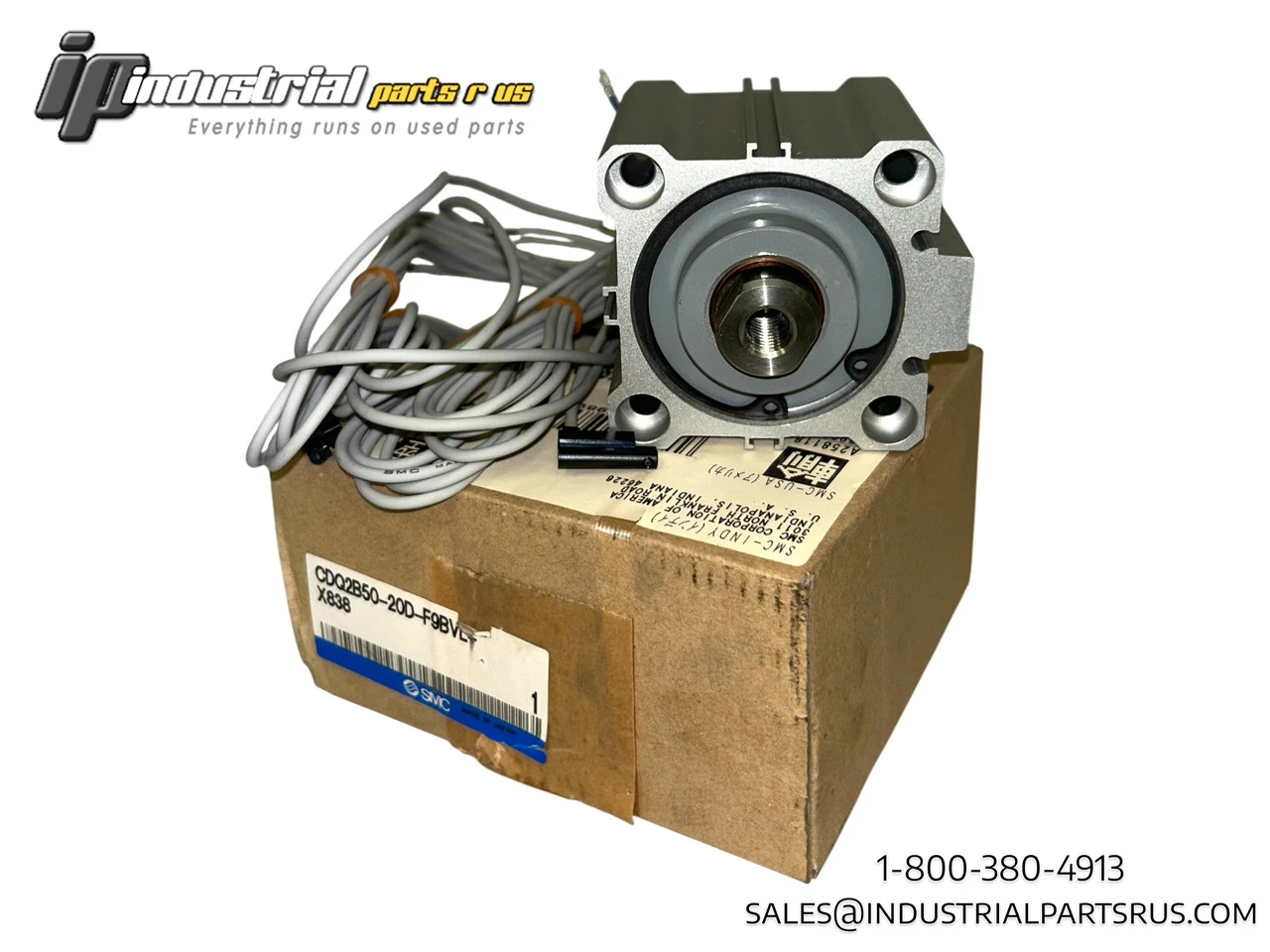

USED SMC CDQ2B50-20D-F9BVL-X838

The SMC CDQ2B50-20D-F9BVL-X838 is a double-acting, single rod compact pneumatic cylinder from the world-renowned CQ2 series. This space-saving cylinder features a 50mm bore diameter with 20mm stroke length, built-in magnet, and includes an F9BVL solid state auto switch with indicator light for precise position detection. Designed with through-hole mounting and auto switch mounting grooves, it delivers reliable performance in industrial automation applications requiring accurate position sensing and compact installation.
Specifications
Series: SMC CQ2 Compact Cylinder
Bore Size: 50mm
Stroke Length: 20mm
Action: Double Acting, Single Rod
Mounting Style: Through-hole (Standard) Type B
Built-in Magnet: Yes (D designation)
Port Thread Type: Rc/M Thread
Operating Pressure: 0.1 MPa to 1.0 MPa (19-145 psi)
Proof Pressure: 1.5 MPa
Ambient Temperature: -10°C to +60°C
Piston Speed: 50-500 mm/s
Auto Switch: F9BVL Solid State Type with Indicator Light
Auto Switch Mounting Groove: 4 surfaces (32-100mm bore sizes)
Cylinder Type: Pneumatic, Non-lube

SKU: IP16229
UPC: 721814247879
Condition: Used
Availability: In Stock
Weight: 4.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814247879
Useraction: Double Acting
Manufacturer: SMC
Part Number: CDQ2B50-20D-F9BVL-X838
Shelf: B-10
Stroke: 20mm
Bore Diameter: 50mm
Model: CDQ2B50-20D-F9BVL-X838
MPN: CDQ2B50-20D-F9BVL-X838
Type: Compact Pneumatic Cylinder
