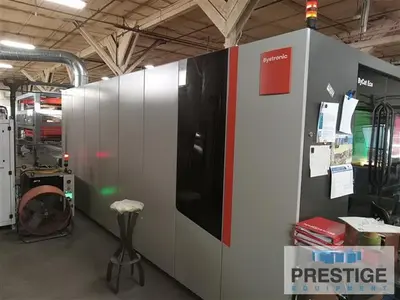

USED 2024 BYSTRONIC BYCUT ECO 3015

CAPACITY:
Maximum Laser Output: 6000 Watts
Maximum Cutting Thickness (Steel): 0.75"
Maximum Cutting Thickness (Stainless).. 0.75": 0.75"
Maximum Cutting Thickness (Aluminum): 0.75"
X-Axis Cutting Area.................... 122": 122"
Y-Axis Cutting Area: 62"
Z-Axis Cutting Area: 4"
Nominal Sheet Size (X): 118.11"
Nominal Sheet Size (Y): 59.06"
Maximum Workpiece Weight: 1,984 Lbs.
Positioning Accuracy: +/- .004"
Max. Pos. Speed Parallel Axis X,Y: 3,937 IPM
Max. Positioning Speed Simultaneous.... 5,511 IPM: 5,511 IPM

Equipped With:

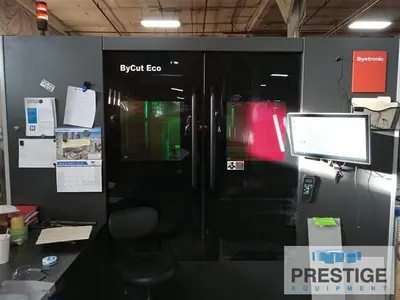

ByVision Control with 21.5" Touchscreen

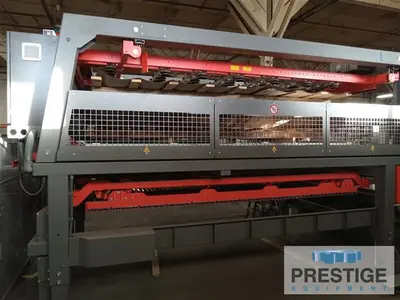

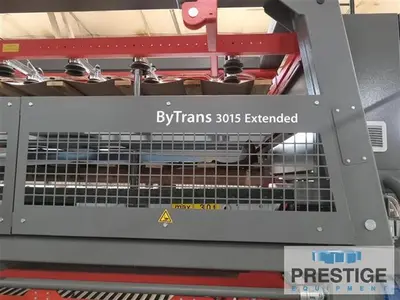

ByTrans 3015 Extended with 2 Cassettes
Fanning Magnet for Sheet Separation for ByTrans Extended
2nd High Pressure Cutting Gas Channel
Donaldson Torit Dust Collector
Fiber 6000 Laser Source

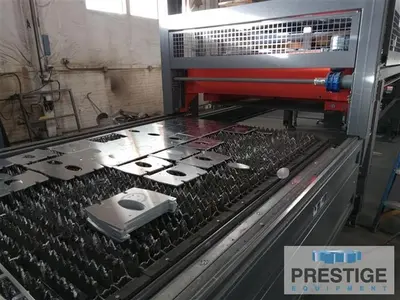

Automatic Pallet Shuttle Table
Chiller
Dust Collector

NOTE:
Inspect In Plant Under Power

HOURS:
ONLY 630 CUTTING HOURS

Features:
ByVision Control with Touchscreen
Fiber 6000 Laser Source
Automatic 40 Position Nozzle Changer
Automatic Pallet Shuttle Table
Chiller
Dust Collector
