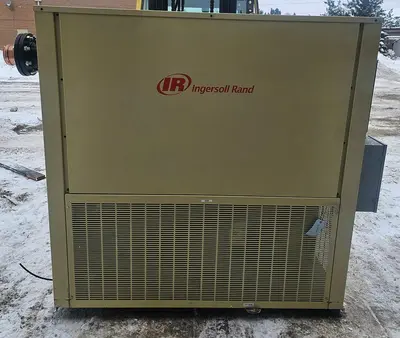

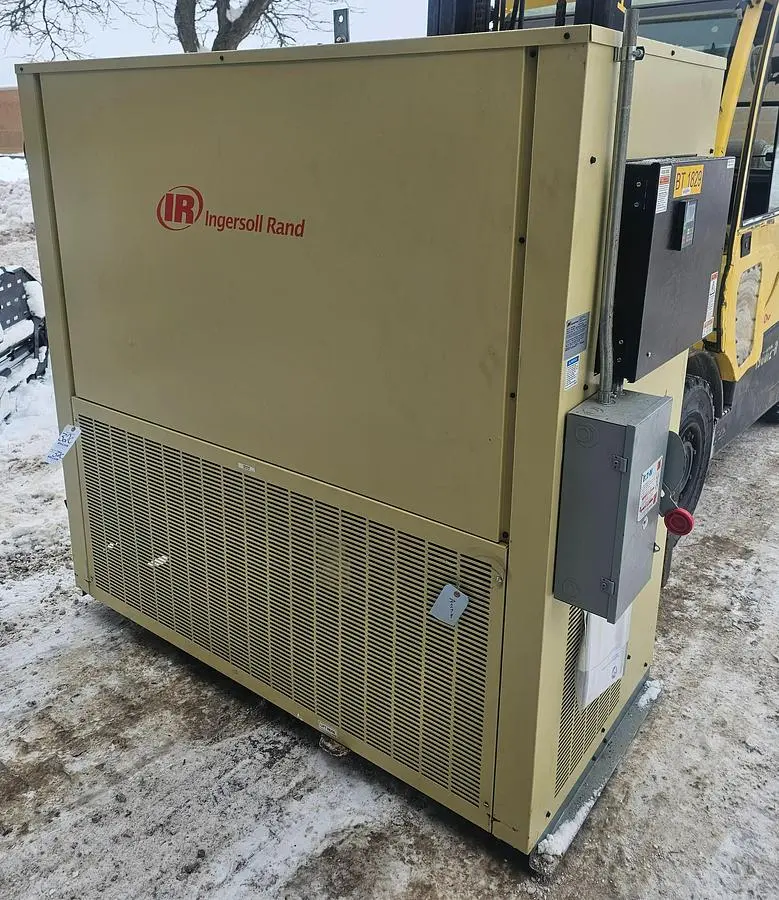

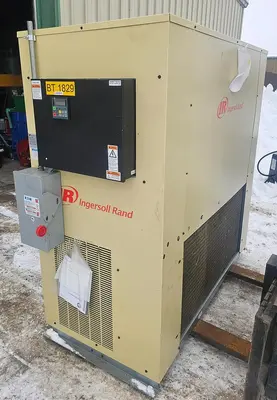

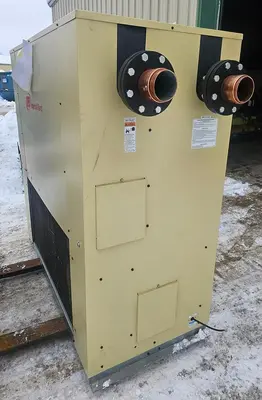

USED 2015 INGERSOLL RAND NVC1200A40N

2015 Ingersoll Rand Nirvana NVC1200A40N | 1200 SCFM Cycling DryerEnergy-Saving Thermal Mass | 460V 3-Phase | S/N: WCH1061829Available for sale is a professional-grade Ingersoll Rand Nirvana NVC1200 refrigerated air dryer. As a premium Cycling model, this unit is engineered for high-volume industrial facilities that demand both superior air quality and low operating costs. Unlike traditional dryers that run continuously, the Nirvana series utilizes a thermal mass (glycol-water) to store "cold energy," allowing the refrigeration compressor to cycle off during low-demand periods.Technical SpecificationsModel: NVC1200A40NSerial Number: WCH1061829 (2015)Capacity: 1200 SCFM @ 100 PSIGElectrical: 460V / 3-Phase / 60HzRefrigerant: R-404A (15 lbs Charge)Max Operating Pressure: 220 PSIGDew Point: Consistent ISO Class 4 (+38°F / +3°C)Cooling: Air-Cooled High-Efficiency CondenserKey Features & PerformanceAdvanced Cycling Technology: Automatically matches energy consumption to actual air load, reducing electricity costs by up to 80% compared to non-cycling dryers.Corrosion-Resistant Heat Exchangers: Features 100% stainless steel heat exchangers for maximum durability and optimal heat transfer without the risk of dissimilar metal corrosion.Intellisys™ Microprocessor Controller: Provides a user-friendly interface with digital dew point display, status indicators, and advanced diagnostic alarms.Centrifugal Moisture Separation: Utilizes high-velocity separation to remove bulk liquids at the coldest point in the system for maximum efficiency.Self-Cleaning Design: The patented heat exchanger geometry is designed to be self-cleaning, significantly reducing maintenance and fouling over time.Physical Dimensions & WeightDimensions: 83" L x 33" W x 84" HWeight: Approx. 2,100 lbsConnections: Large NPT Inlet/Outlet for low pressure drop.Condition Note: This unit was removed from a high-capacity industrial air system and is in excellent physical condition. At 1200 SCFM, this dryer is the ideal companion for 250 HP to 300 HP air compressors. With a new replacement value exceeding $40,000, this Nirvana unit represents a major opportunity for a facility to upgrade their air treatment while slashing energy overhead.

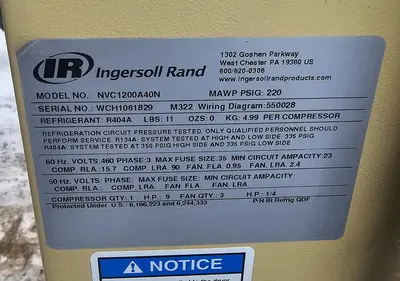

S/N: WCH1061829
Refrigerant Type: R-404A
Max Working Pressure: 220 PSIG
Capacity: 1200 SCFM
