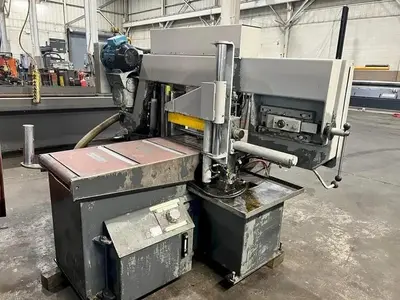

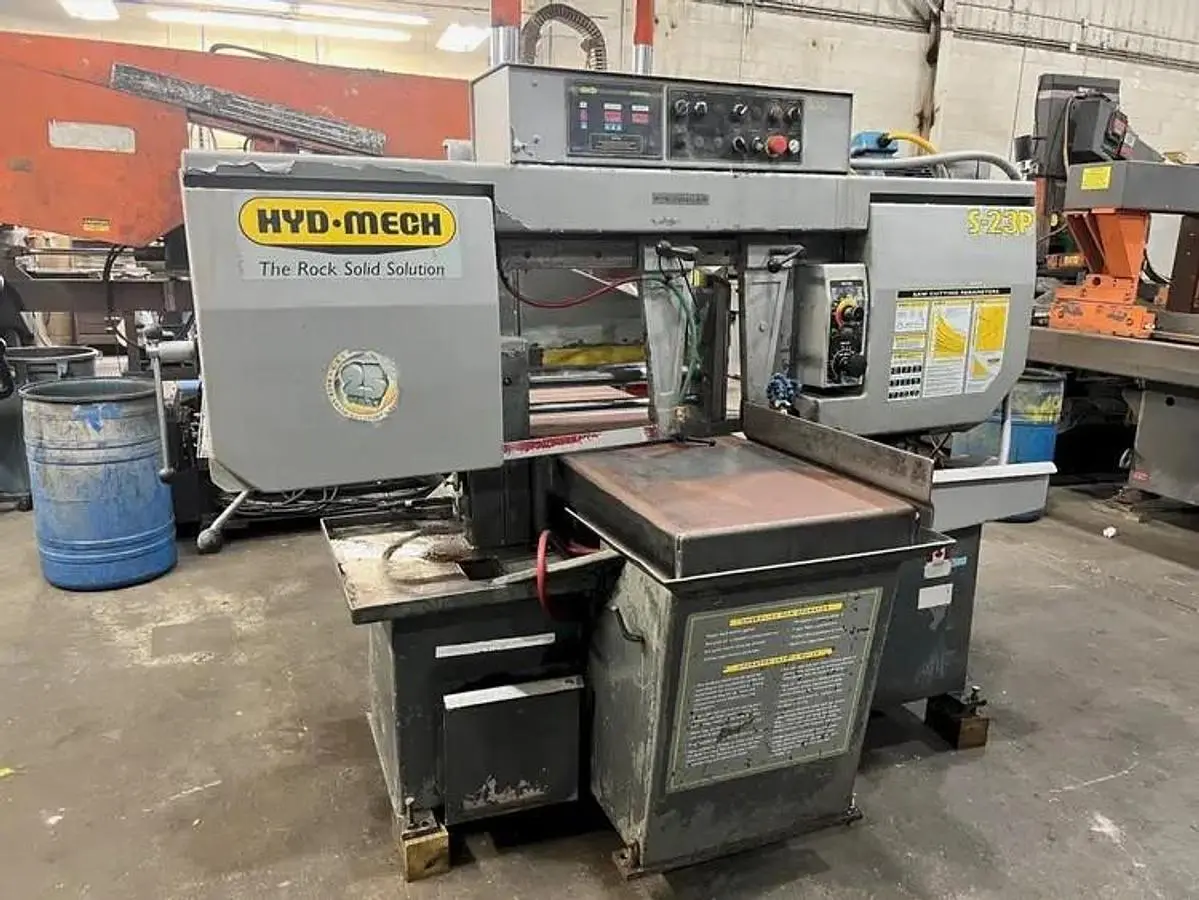

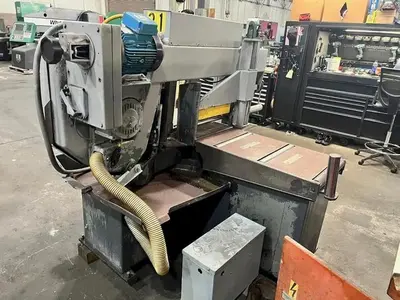

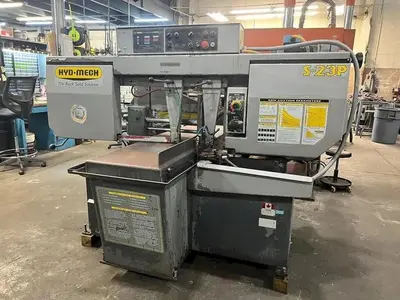

USED HYD-MECH S-23P

Year: 2003
Max Cutting Capacity: 18"W x 16"H (90 degrees), 13"W x 16"H (45 degrees)
Blade Size: 15'6" x 1-1/4" x .042"
Blade Speed: 75-400 FMP (infinitely variable)
Blade Guides: Carbide
Blade Wheel Diameter: 19"
Blade Drive: 5 HP
Table Height: 31"
Coolant Capacity: 6 gallons
Max Work Load: 5,000 lbs.
Electrical: 600V, 3 Phase (includes transformer for 220V, 3PH)
Dimensions (approx): 81" x 71" x 66"
Weight (approx): 2,300 lbs.

Equipped with:
Overhead bundling clamp
Variable vise pressure
Hydraulic clamping
Positive hydraulic down-feed

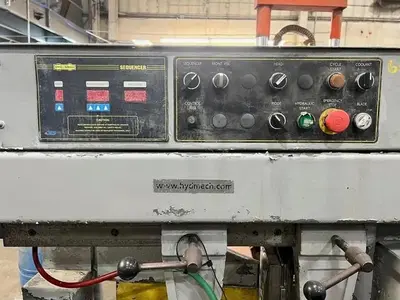

Sequencer control (cut quantity, blade speed readout)
