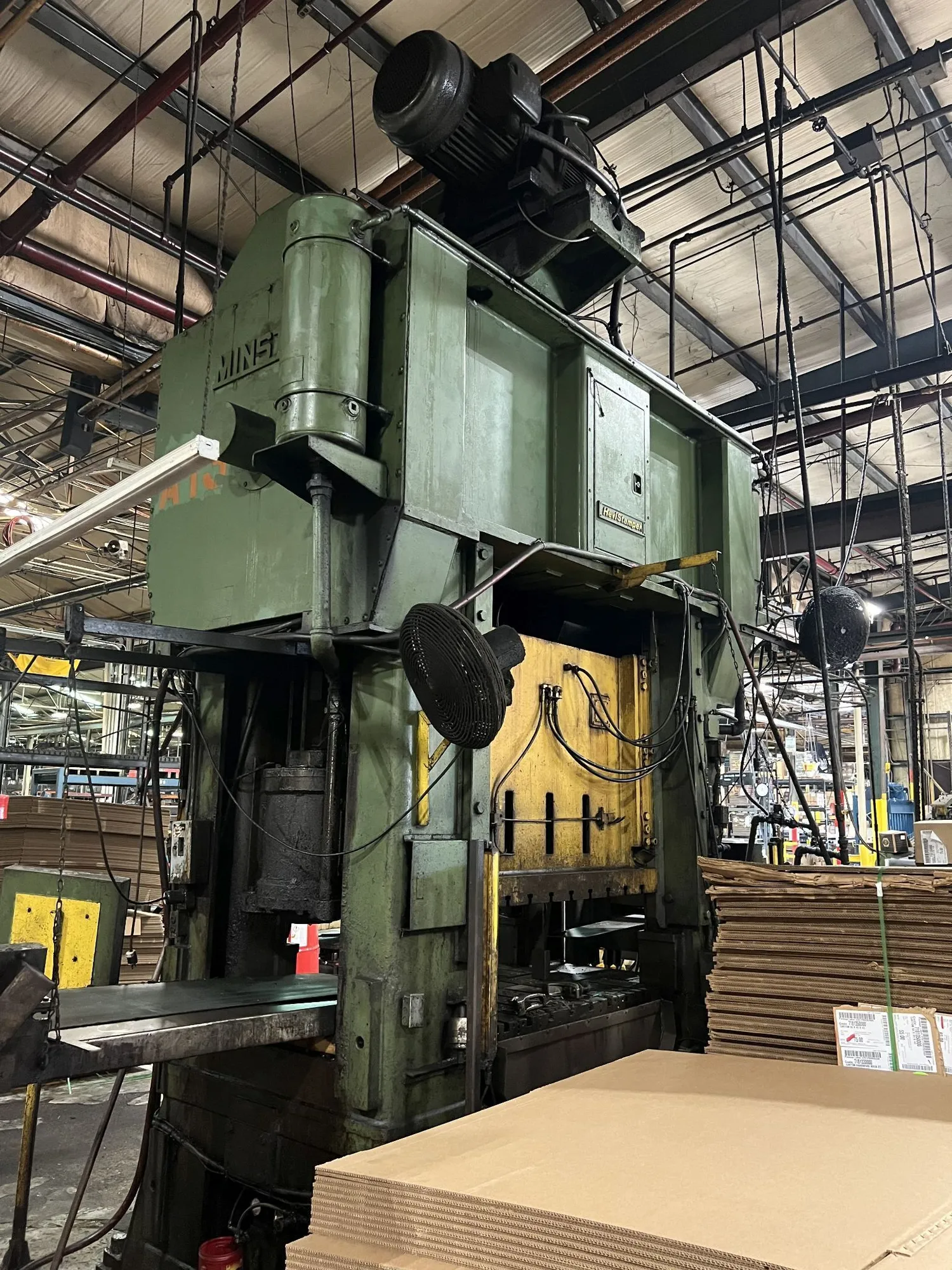

MINSTER E2-300 SSDC Press, 1973 model, with a 300-ton capacity, 8" stroke, and 60" x 42" bed. Features new press controls, air clutch & brake, and 40 HP motor. Ideal for heavy-duty operations. S/N: 20259, stock #14397T, weighs approx. 82,000 lbs.
| Tonnage | 300 T | 272.156 t |
| Tonnage | 300 T | 272.156 t |
MINSTER E2-300 SSDC PRESS, S/N 20259, STOCK# 14397T
MDL# E2-300
S/N# 20259
NEW 1973
CAPACITY: 300 TON
STROKE: 8"
RAM ADJUSTMENT: 6"
SHUT HEIGHT: 26"
BED AREA: 60" L-R X 42" F-B
SLIDE AREA: 60" L-R X 42 " F-B T-SLOTTED
T-SLOTED BOLSTER
SPEED: 36-72 SPM
FLOOR TO TOP OF BED 35.5"
WINDOWS 32"
AIR CUSHION 4" STROKE
EQUIPPED WITH:
NEW PRESS CONTROLS
NEW WITCHATA AIR CLUTCH & BRAKE
AIR COUNTERBALANCES
VIBRATION PADS
RECIRCULATING LUBE
40 HP MOTOR
APPROX WEIGHT 82,000LBS
TEMPORARY SPECIFICATION SUBJECT TO REVISIONS.
PHYSICAL INSPECTION TO VERIFY SPECIFICATIONS IS RECOMMENDED.
RECONDITIONING WILL TAKE 4-6 WEEKS
