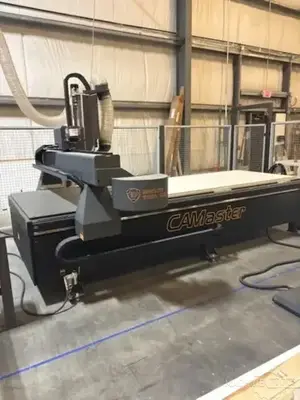

CNC Router
| Table-W | 60" | 1,524 mm |
| Table-L | 120" | 3,048 mm |
| Power | 12 hp | 8.9 kW |
| # Axis | 3 | 3 |
Request a Quote
Add to Cart
Number of Axis: 3
Table Width: 60"
Table Length: 120"
Table Hold Down: Vacuum Hold Down
Number of Vacuum Zones: (6) Zones
Spindle Mfg: HSD Spindle
Spindle Horsepower: 12 HP Spindle
Clearance Under The Bridge: 10"
Z-Axis Travel: 13"
Spindle Speed: 24,000 RPM
Tool Changer: (10) Position ATC
Locator Pins: (3) Pop up location Pins
Drive: Brushless AC Servo Drive System

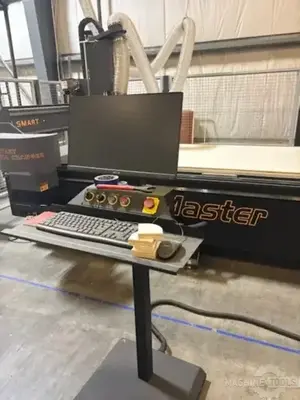

Control: Smartcore Ethercat Multi-Axis PLC Controller
Power Requirement: 480v - 3 ph - 50/60 hz
17 HP Klein Regenerative Blower: Very Low Hours
