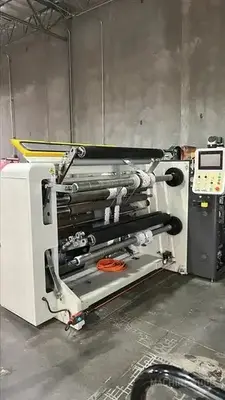

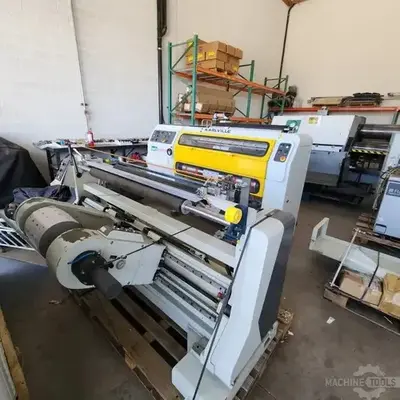

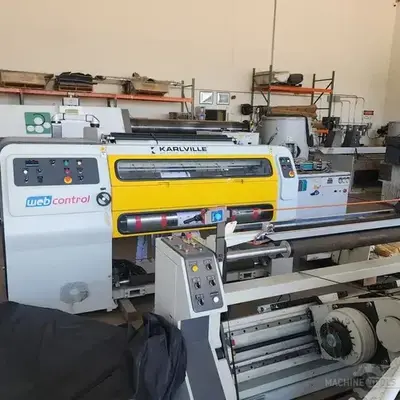

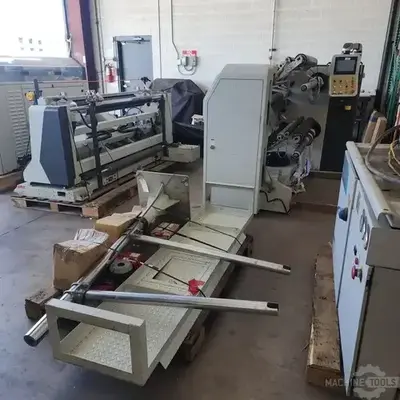

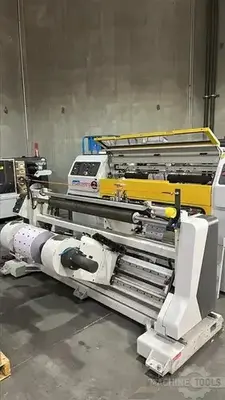

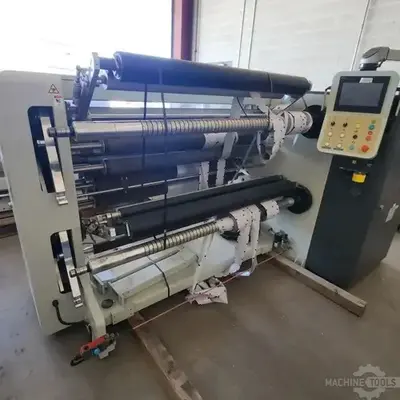

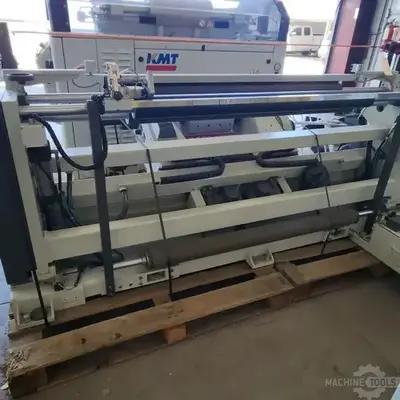

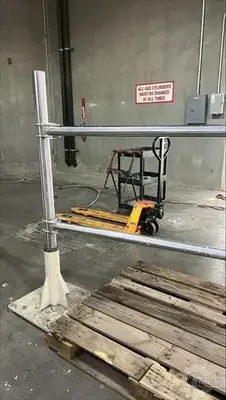

USED 2021 KARLVILLE HS-PRO-1300

Slitter

Request a Quote
Add to Cart
Web Width: Max 1300 mm
Unwind Roll Diameter: 1000mm Independent
Unwind Roll Weight: Max 1,200 kg (2,645 Lbs)
Unwind Roll Cores: 3” I.D. / 6” I.D. (option)
Finished Roll Diameter: Max 610mm
Finished Roll Cores: 3” I.D. / 6” I.D. (option)
Slit Width: 50mm and Up (Lower Upon Request)
Knifes: Shear, Razor & Pneumatic Shear with Tangential Web Path
Winding Tension: 0.5 pli to 2.5 pli Standard
Machine Speed (Max): 500 m/min (Depending on Material Type/Quality)
Shrink Sleeve Materials: Plastic Films Made from PE, PP, PET, PVC, Papers and Laminates (Depending on Material Type and Thickness)
Rigid Films: 10~200 micron / Soft Films: 12~300 micron
