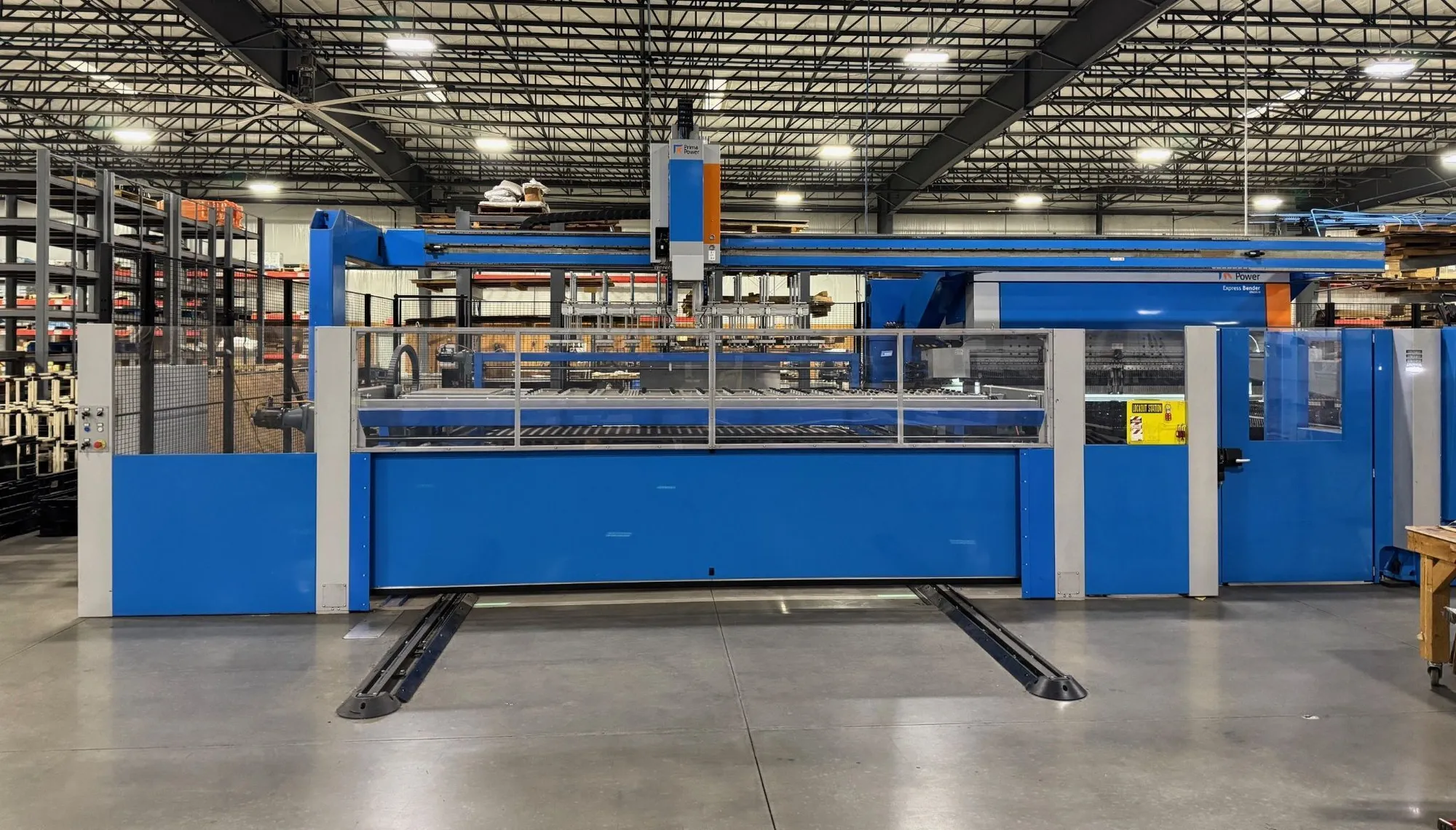

USED 2019 PRIMA POWER EBe3820 EXPRESS BENDER
Overview
PRIMA POWER EBe3820 EXPRESS BENDER, PANEL BENDING SYSTEM WITH LOAD/UNLOAD, NEW: 2019
Specs
MAX. BENDING LENGTH: 149.6"
MAX. SHEET LENGTH: 157.5"
MAX. SHEET WIDTH: 67"
MAX. PANEL DIAGONAL: 157.5"
MAX. BEND HEIGHT: 8.03"
MAX. RE-ENTERING BEND: 2.165"
MAX. BENDING FORCE: 45 TONS
CLAMPING FORCE: 121 TONS
MAX. MATERIAL THICKNESS:
- STEEL: 0.0787"
- STAINLESS STEEL 0.0591"
- ALUMINUM: 0.1181"
MIN. MATERIAL THICKNESS: 0.002"
AVERAGE ABSORBED POWER: 7kWh
Equipped With
ATC AUTOMATIC TOOL CHANGE TCS VERSION
EBe 3820 EXPRESS BENDER
LOADING AND UNLOADING SYSTEM
RIGID WELDED FRAME
LOWER TOOL MOUNTED ON THE FRAME
SERVO DRIVEN UPPER TOOL WITH VERTICAL MOVEMENT
HTC HYDRAULIC UPPER TOOL CLAMPING
PROGRAMMABLE CROWNING SYSTEM OF THE UPPER TOOL AND BENDING BLADE
PROGRAMMABLE POSITIONING PINS
SERVO MOTOR COOLING UNIT
HIGH SPEED SERVO MOTORS
BRUSH TABLE-TOPS
CONTROL CABINET COOLER
UPS CONTROL BATTERY BACK UP
1) SET OF UPPER TOOLING WHICH INCLUDES:
- 2) 3.78" MOBILE END TOOLS
- 2) .79" FIXED TOOLS
- 1) 4.3" CENTRAL WEDGE
- 10) 0.158" SPACING SEGMENTS
- 142) 0.95 STANDARD SEGMENTS
ASP ADDITIONAL SHORT BLADES
ASP CARRIAGES PAIR 35.4" SBL (STANDARD BLADE LOCKING)
CLL FOR ATC REVERSED BENDING SEQUENCE
UBC UPPER BRIDGE CLAMP
LBN LAST NEGATIVE BEND
PCD8 - PART CENTERING DEVICE (INCLUDES FOLDING DOORS WITH SAFETY LOCK)
BTD8 - BENDING TURNING DEVICE
PCD8W SINGLE WAGON
LIFTING DOOR FOR CONTINUOUS PRODUCTION
