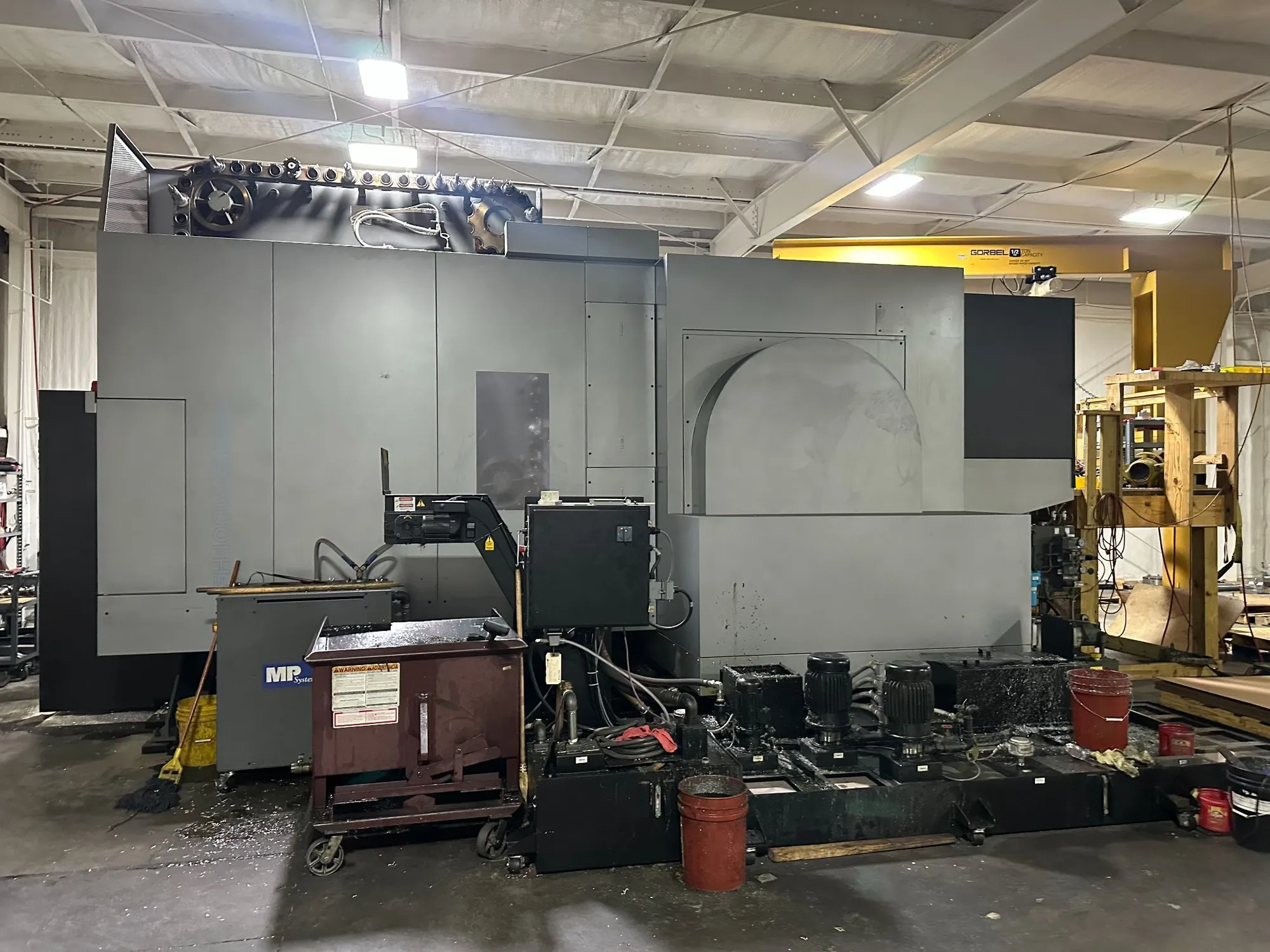

Used 2015 TOYODA FA 100M 5X CNC 5-axis trunnion style 2 PALLET horizontal machining center. FANUC 31-MB5, 5 AXIS color control, 41.3" x 41.3" pallet, 6,000 RPM spindle, 59.1" x 55.1" x 55.1" travel, and a 121 ATC. Renishaw probing with in machine inspection software Ideal for precision complex engineering demands.
| Number Of Tables / Pallets | 2 | 2 |
| Table Size - L | 41.3" | 1,049 mm |
| Table Size - W | 41.3" | 1,049 mm |
| Weight On Table | 4,400 lb | 1,995.8 kg |
| Main Spindle Horse Power | 60 hp | 44.7 kW |
| Main Spindle Speeds | 6,000 RPM | 6,000 RPM |
| Max Workpiece Diameter and Height | 52.2 X 42.5 | 52.2 X 42.5 |
| Main Spindle Taper | 50 | 50 |
| X - Axis Travel | 59.1" | 1,501.1 mm |
| Y - Axis Travel | 55.1" | 1,399.5 mm |
| Z - Axis Travel | 45.2" | 1,148.1 mm |
| A - Axis Travel | + - 120 DEGREES | + - 120 DEGREES |
| C - Axis Travel Table Indexing | 360 | 360 |
| Rapid Traverse Rate - X | 590 in/min. | 15 m/min. |
| Rapid Traverse Rate - Y | 944 in/min. | 24 m/min. |
| Rapid Traverse Rate - Z | 944 in/min. | 24 m/min. |
| Automatic Tool Changer | 120 | 120 |
| Tool Diameter | 5.72 | 5.72 |
| Tool Length | 26.59" | 675.39 mm |
| Tool Weight | 55 lb | 24.9 kg |
| Machine Weight | 112,435 lb | 50,999.7 kg |
| Control | CNC (FANUC 31 - MB5 CNC COLOR CONTROL) | CNC (FANUC 31 - MB5 CNC COLOR CONTROL) |
| Weight | 0.00 | 0.00 |
FANUC 31-MB5 CNC 5 AXIS COLOR CONTROL
EXTENDED MEMORY
RENISHAW OMP 60 OPTICAL WITH INSPECTION PLUS SOFTWARE AND EASYSET SOFTWARE
CORE COOLED DOUBLE LEAD BALL SCREWS
BIG PLUS SPINDLE
120 AUTO TOOL CHANGER
99 TOOL OFFSETS
THRU SPINDLE COOLANT 1000 PSI
LOADING STATION SPLASH GUN
OVERHEAD SHOWER COOLANT
SCRAPPER TYPE CHIP CONVEYOR WITH DRUM COOLANT FILTER
ALL AVAILABLE MANUALS
