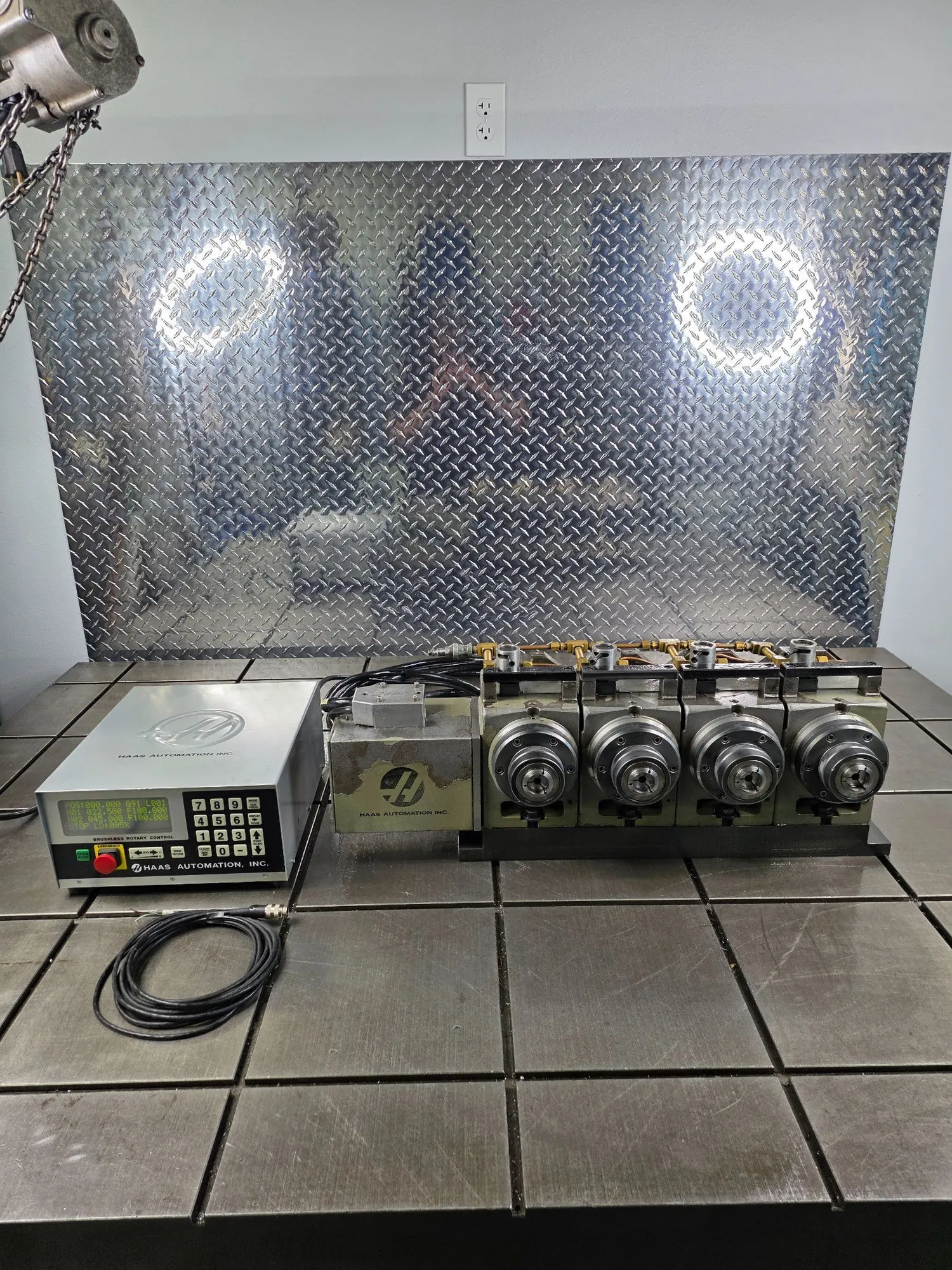

HAAS SHA5C4HD CNC Indexer Single-Axis Rotary Unit 4-Head 5C With Control USA #8122
| Dimensions | 29" x 9" x 11" H | 29" x 9" x 11" H |
| Weight | 320lbs | 320lbs |
HAAS SHA5C4HD CNC Indexer Single-Axis Rotary Unit 4-Head 5C USA #8122
Reference #8122
Model # SHA5C4HD
Serial # 700604D
Max weight on platter supported- 10 Lbs.
Max weight on platter unsupported- 5 Lbs.
Max spindle speed- 200°/sec
Torque- 25 ft-lbf
Nose Thread- 2 3/16 in - 10
Runout max- 0.0004 in
Center height- 5.875 in
Collet Size- 5C
Backlash- 50 arc/sec
Gear ratio- 60:1
Accuracy- +/- 60 arc-sec
Repeatability- 10 arc-sec
Resolution- 0.001°
Worm gear diameter- 2.8”
Max rotation / step- 999.999°
Control Box SN: 803338
Machine weight- 320 Lbs.
Machine dimensions- 29” x 9” x 11” H
Machine location- F.O.B. Sarasota, Florida
