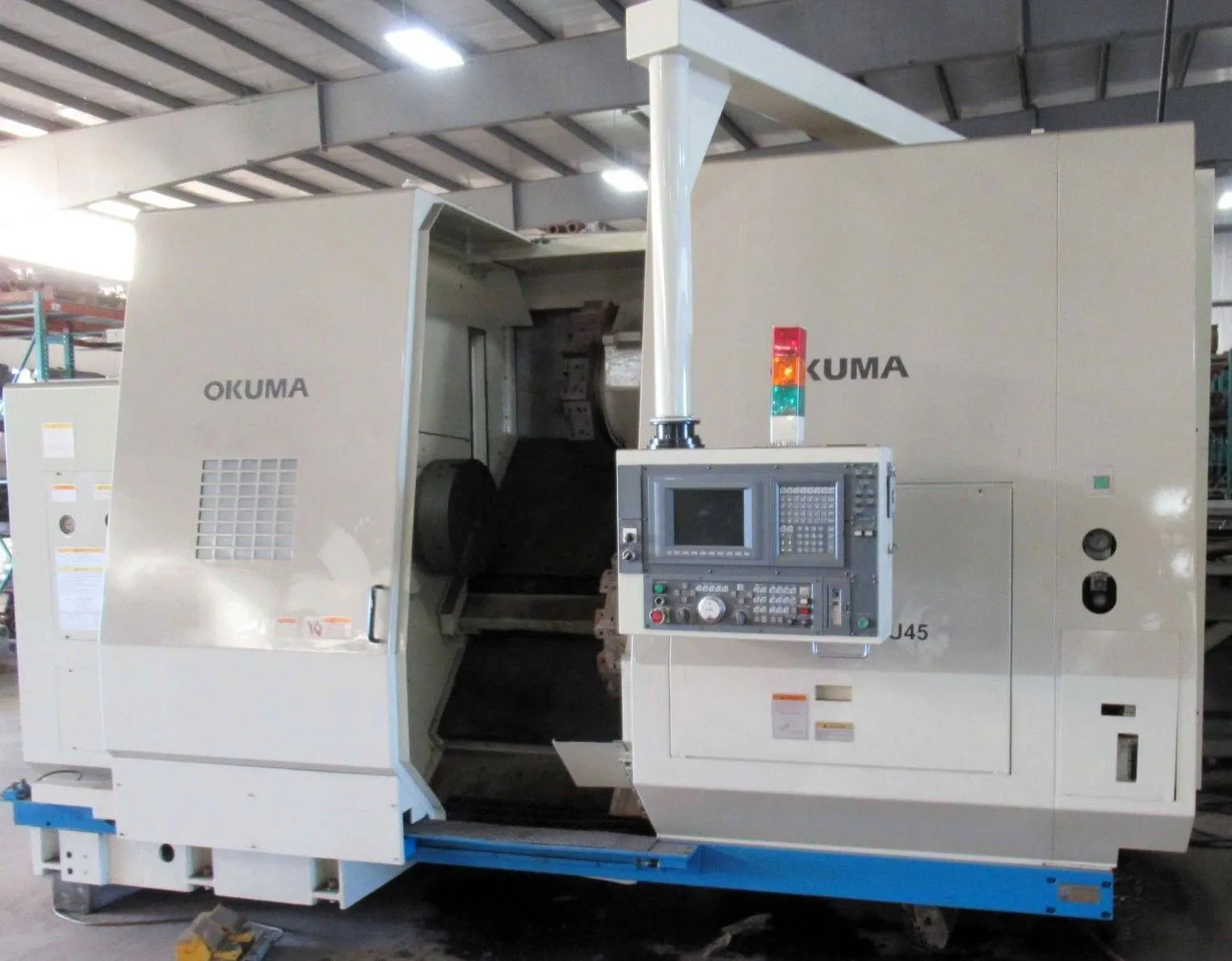

OKUMA IMPACT LU45 CNC Turning Center, New in 1998.
OSP 7000L CNC Control.
19.5" Hydraulic Chuck.
12-Position Upper Turret.
10-Position Lower Turret.
Tailstock.
Chip Conveyor.
| Swing | 33.07" | 839.98 mm |
| Machining Length | 78.74" | 2,000 mm |
| # Axis | 4 | 4 |
| Chuck Size | 19.5" | 495.3 mm |
| Bar Capacity | 5.12" | 130.05 mm |
| Power | 60 hp | 44.7 kW |
| Max RPM | 2,400 RPM | 2,400 RPM |
| Turning Dia | 25.98" | 659.89 mm |
| Tailstock | Yes | Yes |
| Control | CNC (OSP7000L) | CNC (OSP7000L) |
General Specifications:
Spindle Bore: 4 1/8"
Hydraulic Power Chuck: 19 1/2"
Swing Over Bed: 33.07"
Swing Over Cross Slide: 21.85"
Distance Between Centers: 78.74"
Turret Positions (Upper/Lower): 10 / 12
OSP7000L CNC Control
Tailstock
Chip Conveyor
