USED 1989 GALLMEYER & LIVINGSTON 670

Specifications:
Chuck Size 12" x 40"
Max. Grinding Width 19"
Max. Grinding Length 48"
Work Height - Full Wheel 18"
Height Floor to Work Surface 38"
Spindle Wheel Diameter 14"
Spindle Wheel Width 1 1/2"
Spindle Wheel Bore Size 5"
Throat Depth 19 1/8"
Housing Radius 3"
Spindle Speed 1750 RPM
Spindle Drive Motor 7 1/2 HP
Vertical Adjustment Speed per Minute 9.33"
Table Work Surface 16" x 49"
Maximum Longitudinal Travel 59 1/2"
Maximum Longitudinal Speed 100 ft/min
Maximum Cross Travel 17 3/4"
Continuous Cross Speed - Max. per Minute 120 per minute
Step Cross Travel - Maximum 3/4"
Hydraulic Motor 3 HP
Floor Space 217" x 111"
Machine Height 103"
Approximate Weight 11,000 lbs.

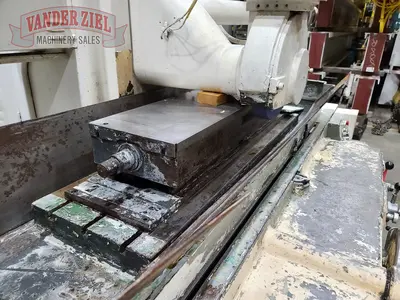

Grinder is equipped with incremental downfeed and a electromagnetic chuck control.
Preliminary Specifications - Subject to Verification
