Specifications:
Longitudinal Travel 12 3/4”
Cross Feed Travel 6 ¾”
Vertical Working Height 12”
Platen Work Area 6” x 18”
Chuck Size 6″ x 12″
Grinding Wheel Furnished 7” x ½” x 1 ¼” ID
Grinding Wheel Maximum Capacity 8” x 1 ¼” x 1 ¼”
Elevating Handwheel Graduation 0.0001”
Cross Feed Handwheel Graduation 0.001”

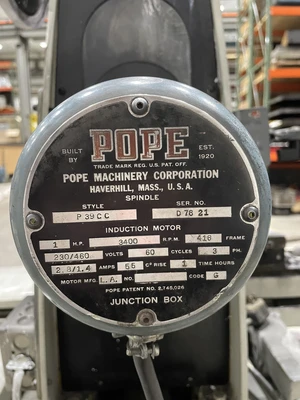

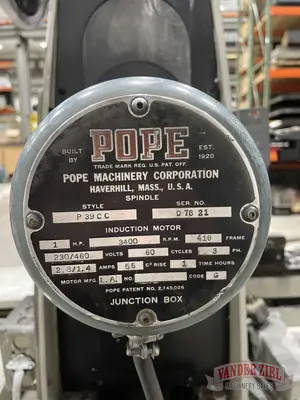

Spindle Motor 1 ½ HP
Spindle Speed 3450 RPM @ 1 ½ HP
Floor Cabinet Area 29” x 29”
Operating Area 48” x 45”
Weight 1450 lbs.

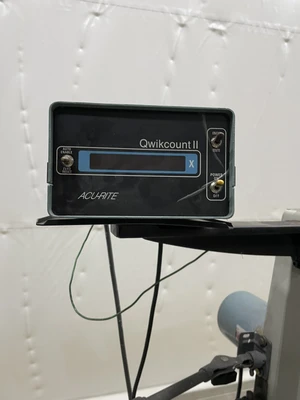

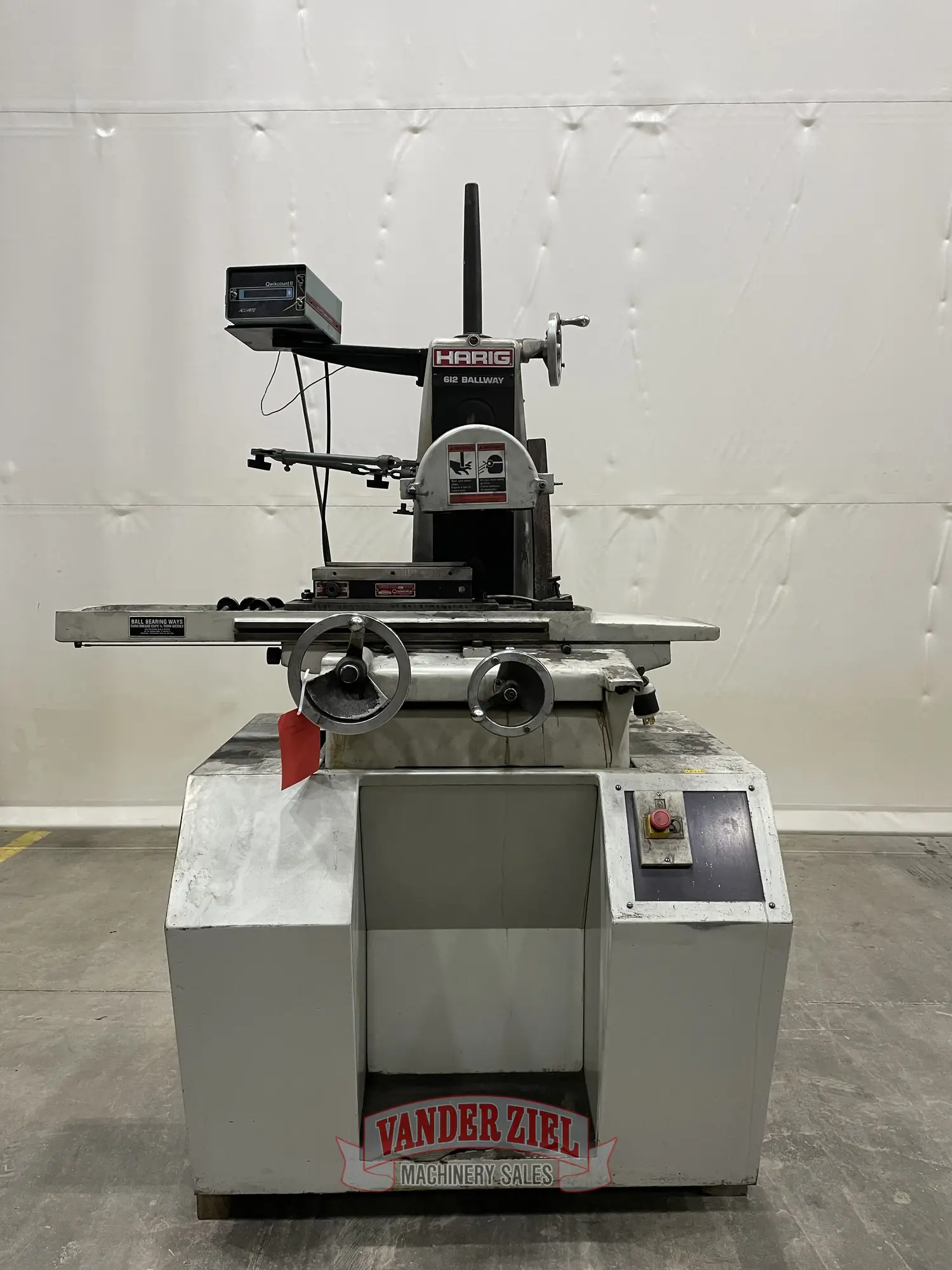

Grinder is equipped with an Acu-Rite DRO.
Preliminary Specifications – Subject to Verification
