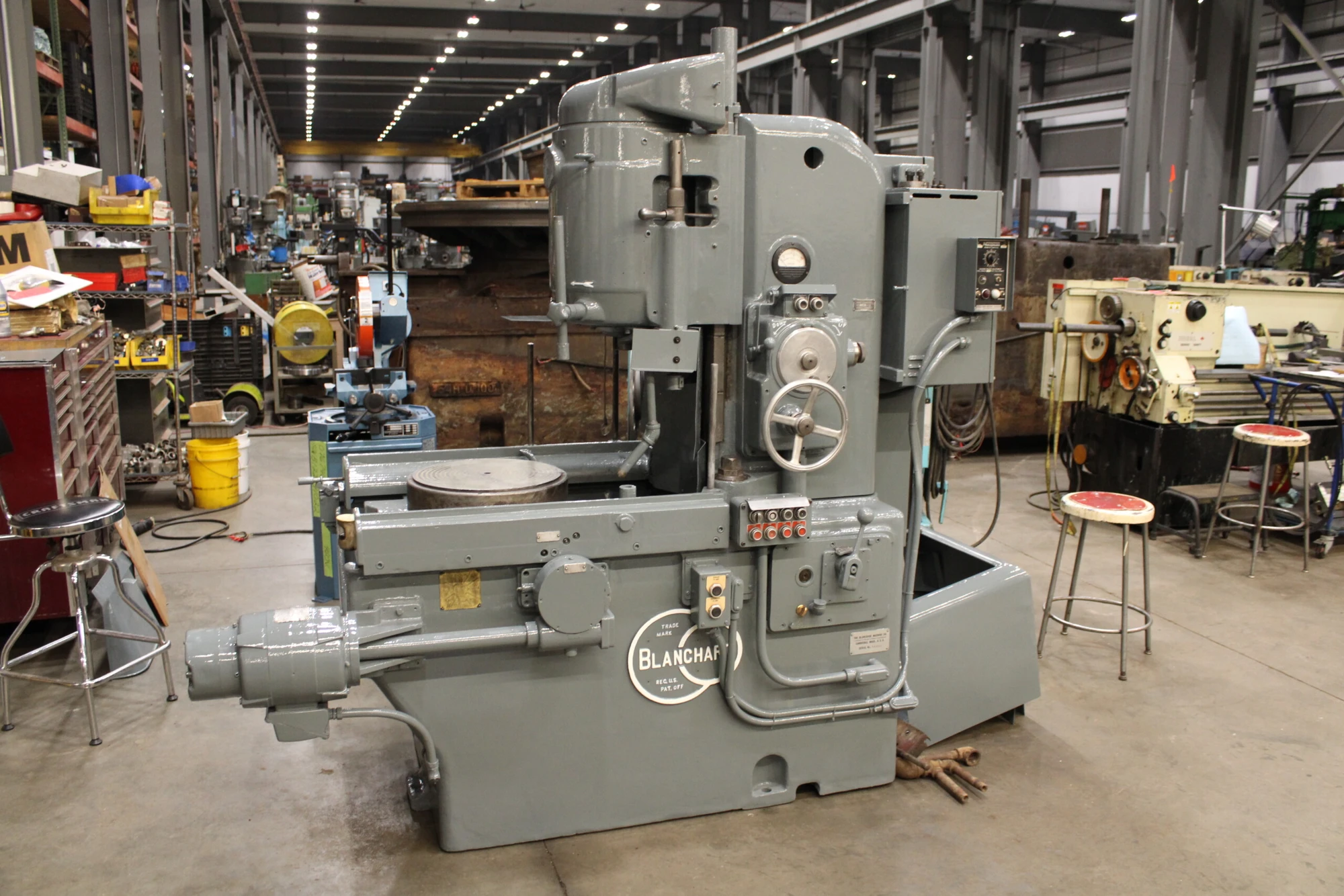

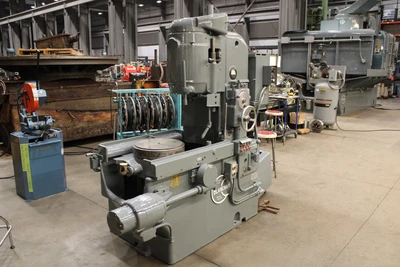

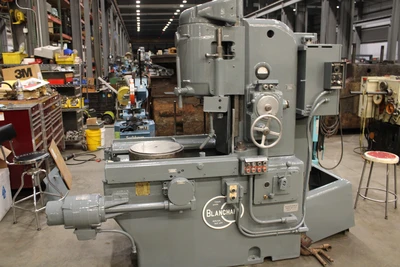

USED BLANCHARD 11

Serial # 11968Asset # 9742Specifications:Grinding Wheel Diameter 11″Magnetic Chuck Diameter 16″Swing Clearance 20 1/2″Wheel Motor 15 HPRange 20″ (diameter) x 7″Work Table: 16″ Dia. w/ 1/2″ Pole Spacing Center Hole 3/4″ Maximum Weight 500

Specifications:
Grinding Wheel Diameter 11″
Magnetic Chuck Diameter 16″
Swing Clearance 20 1/2″
Wheel Motor 15 HP
Range 20″ (diameter) x 7″

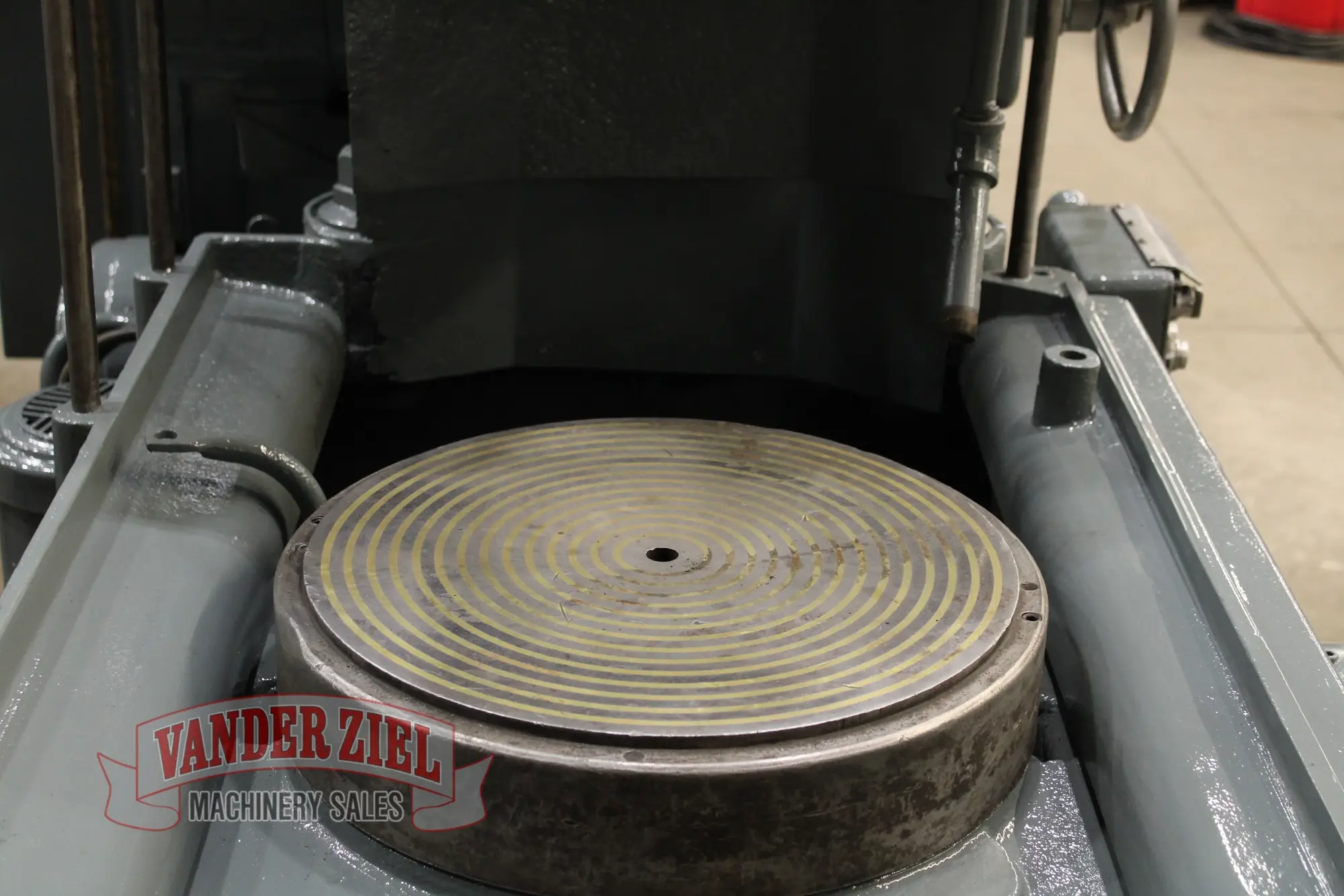

Work Table:
16″ Dia. w/ 1/2″ Pole Spacing
Center Hole 3/4″
Maximum Weight 500 lbs.
Wheel:
Diameter 11″
Thickness 1″
Speeds:
Wheel 1,200 RPM
Chuck 15, 24, 41, 60
Feed:
Vertical Downfeed Dial Graduated by 0.005″
Increments
Floor Space 6′ x 3′ 8″
Height 6′ 9″
Weight 7,000 lbs.
Preliminary Specifications – Subject to Verification
