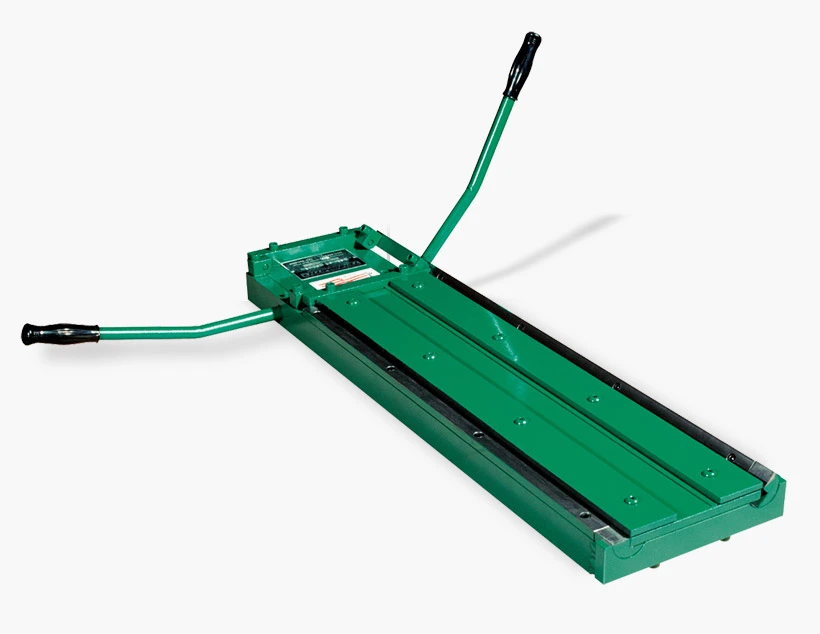

NEW TENNSMITH DS24-20

Specifications:
TENNSMITH’s Model DS24-20 cheek bender is a rugged tool built for increased productivity while getting the most consistent bends quickly. This model’s two-way trunnion design holds the bending apron steady at the base of the bend ensuring accuracy throughout the length of the sheet.
This machine can be bench-mounted and adjusts for bends of 1/4 to 7/8 inches, 24 inches long. Tennsmith’s cheek bender handles mild steel to 20-gauge.

Cheek Bender
DS24-20
Capacity, mild steel
20 gauge/1.0 mm
Maximum bending
24 in./610 mm
Bend depth
1/4 in. – 7/8 in.
6.35 mm – 22.2 mm
Dimensions, handles removed, LxWxH
31 x 8-1/4 x 2-3/4 in.
788 x 216 x 70 mm
Shipping weight
80 lbs./37 kg
