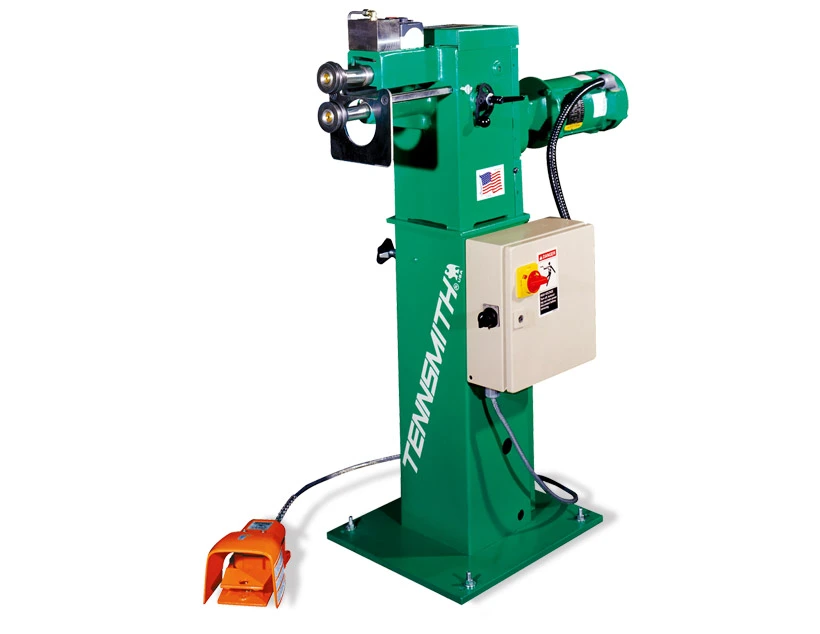

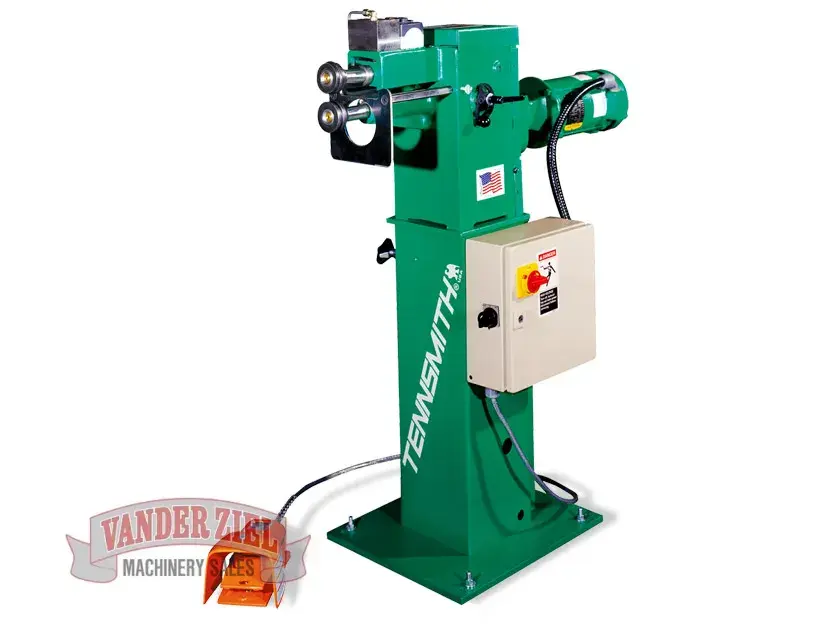

NEW TENNSMITH PR16

Specifications:
The PR-16 power rotary is a versatile machine capable of forming numerous applications up to 16-gauge mild steel material. Standard features include variable speed control, heavy cast body with steel body stand.
A 3/4-hp gear motor provides smooth operation. The forming pressure is controlled by a crank on the top of the frame on the standard unit; an optional hydraulic powered forming pressure unit is available. Rolls are ordered separately for this unit.
Crimping, single beading, ogee beading, elbow edging, flattening, wiring, burring and turning rolls are available.
Please contact TENNSMITH for special application forming.

Roll Chart PR16
Roll Diagram
Type
Elbow Edging
Flange
Flattening
Offset
Turning
Burring
Wiring
Crimping
Ogee Beading
Single Beading
Power Rotary Machine
PR16
Capacity, mild steel
16 gauge/1.6 mm
Capacity, stainless steel
20 gauge/1.0 mm
Throat
10 in./254 mm
Distance, shaft center to center
2.5 in./63.5 mm
Gear ratio
3 : 1
Working speed variable
3 to 45 rpm
Motor
3/4 hp, 1PH
Shipping weight
350 Ibs./159 kg
