NEW DOALL 3613-V3

DoAll 36″ Vertical Contour Saw, Model 3613-V3 – NEW

Machine Capacity: 36″ x 13″ (915x330mm)
Production Level: Low
The DoALL 3613-V3 vertical contour band saw features variable frequency 3 hp (2.23kW) AC inverter drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life, plus a dynamic braking function that rapidly stops motion when power is shut-off. The 3613-V3 upright metal cutting band saw, with a 36″ (915mm) cutting capacity, is widely used in machine shops, maintenance departments, schools and other areas where cutting a wide variety of materials is required.

Band Speed: 30-5,500 fpm (9-1,680mpm)
AC Motor Drive: 3-hp (2.25kW)
Machine Weight (net): 1,5500 lbs (703kg)
Throat, Band to Column: 36″ (915mm)
Maximum Work Height: 13″ (330mm)
Band Width Capacity: 1/8″-1″ (3.2-25.4mm)
Band Length: 199″ (5,055mm)

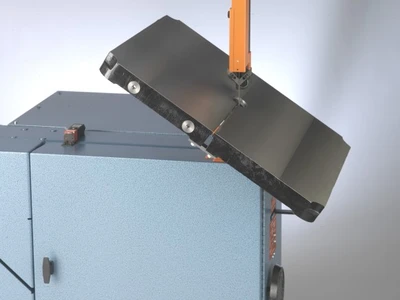

Table: 26″ x 26″ (660 x 660mm) Tilts 45R, 10L
Table to Floor Height: 39″ (990mm)
Table Capacity: 500 lbs (227kg)
Upper Wheel Adjustment: 3″ (76mm)

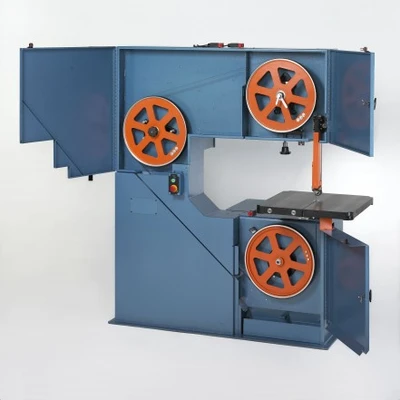

Wheels: Aluminum with crowned rubber tires
Floor area required: 74″ x 45″ x 81-1/2″ (1,880×1,145×2,070 mm)
Standard Equipment:
Set of high-speed, insert-type guide blocks for bands 1/8″-1″ (3.2-25.4mm)
Set of steel guide inserts for bands 1/4″, 3/8″ and 1/2″
Band door interlocks
Job selector
Wrench for saw guides
Chip pan
Band tension indicator
Transmission oil
Wrench for table trunnion
Band speed indicator reading in fpm/mpm
Variable frequency AC drive dual-range transmission
One DoALL bi-metal saw blade
Instruction and parts manuals on CD
