NEW DOALL 3612-VH

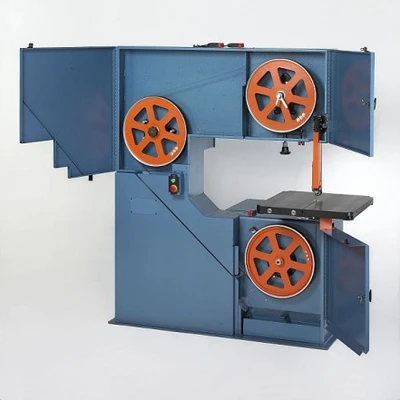

DoAll 36″ Vertical Contour Saw, Model 3612-VH – NEW

Machine Capacity: 36″ x 12″ (915x305mm)
Production Level: Low
Vertical contour saws are among the most versatile sawing machines on the market today and the DoALL 3612-VH vertical metal cutting band saw leads the pack in versatility. The 3612-VH saws are widely used in machine shops, mold shops, maintenance departments, schools and in other areas where cutting a wide variety of materials is required. Machines are available in sizes to fit your needs and feature band speeds that permit contouring, cut-off, and machining of almost any material.

Band Speed: 30-5,500 fpm (9-1,680mpm)
AC Motor Drive: 3 hp (2.25kW)
Machine Weight (net): 2,200 lbs (990kg)
Throat, Band to Column: 36″ (914mm)
Maximum Work Height: 12″ (305mm)
Band Width Capacity: 1/8″ – 1″ (3.2-2.7mm)
Band Length: 199″ (5,055mm)
Table: 26-1/2″ x 33-1/2″ (675 x 850mm) Tilts 45°R, 10°L
Table to Floor Height: 40″ (1,020mm)
Table Stroke: 12″ (305mm)
Table Feed: 0-6 fpm (0-1.8 mpm)
Table Feed Force: 0-175 lbs (0-79kg)
Table Capacity: 500 lbs (227kg)
Upper Wheel Adjustment: 3″ (75mm)
Wheels: Flanged with steel backed rubber tires
Hydraulic reservoir: 5 gal
Floor area required: 74″ x 45″ x 81-1/2″ (1,880×1,145×2,070 mm)
Standard Equipment:
Post elevating hand wheel
One set of 3/4″ (19mm), and 1″ (25mm) carbide-faced inserts
Dual-range transmission
Band speed indicator
Set of saw guide blocks with carbide backup for bands 1/8″ to 1″
Set of metal saw guide inserts for bands 1/4″, 3/8″ and 1/2″
Job selector
Wrench for saw guides
Table trunnion wrench
Removable chip drawer
Mist coolant—plant air
Variable frequency AC drive
Complimentary coolant package
Transmission oil
Band tension indicator
One DoALL bi-metal saw blade
Instruction and parts manuals on CD
