NEW DOALL 3613-V5

DoAll 36″ High Speed Vertical Contour Saw, Model 3613-V5 – NEW

Machine Capacity: 36″ x 13″ (915x330mm)
Production Level: High Speed Low Production
The DoALL 3613-V5 high speed, vertical contour band saw features a variable frequency 5 hp (3.75 kW) AC inverter drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life, plus a dynamic braking function that rapidly stops motion when power is shut-off. The 3613-V5 medium production, upright metal cutting band saw is widely used in locations that cut a large variety of materials.

Cutting Capacity at 90° Rectangle: 36″ x 13″ (915x330mm)
Cutting Capacity at 90° Round: 13″ (330mm)
Throat band to column: 36″ (915 mm)
Band width capacity: 1/8″ – 1″ (3.2-25.4mm)
Saw band length: 199″ (5,055 mm)
Variable band speed: 550-5,500 fpm (170-1,680 mpm)

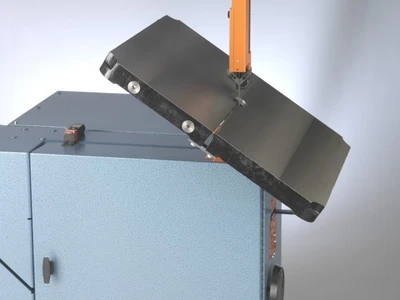

Table Tilt: 45° right and 10° left
Material Pass Line Height: 39″ (990 mm)
AC drive motor: 5 hp (3.75 kW)
Table Size: 26″ x 26″ (660x660mm)
Table capacity: 500 lbs (227 kg)

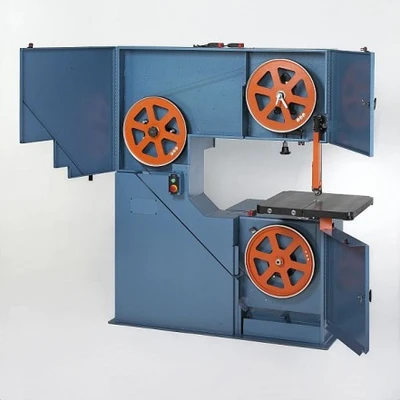

Wheels: 20″ (508mm) Aluminum with crowned rubber tires
Upper wheel adjustment: 3″ (76 mm)
Floor Space Required: 74″ x 45″ x 81-1/2″ (1,880×1,145×2,070mm)
Weight: 1550 lbs (703 kg)
Standard Equipment:
One set of high-speed, insert-type guide blocks for bands 1/8″ through 1/2″
One set of steel guide inserts for bands 1/4″, 3/8″ and 1/2″
Job selector
Band speed indicator reading in fpm/mpm
Band tension indicator
Manual post elevating
Variable frequency AC drive
Chip pan
Wrench for saw guides
Wrench for table trunnion
One DoALL bi-metal saw blade
Instruction and parts manuals on CD
