NEW DOALL 2013-V2

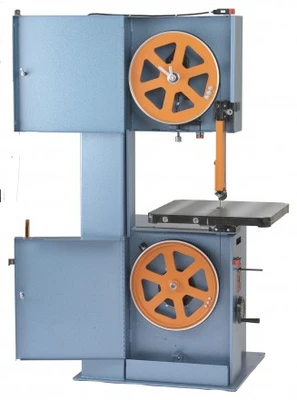

DoAll 20″ Vertical Contour Saw, Model 2013-V2 – NEW

Machine Capacity: 20″ x 13″ (508x330mm)
Production Level: Low
The DoALL 2013-V2 vertical contour band saw features variable pulley drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life, plus a dynamic braking function that rapidly stops motion when power is shut-off. The 2013-V2 metal cutting, upright band saw is among the most versatile sawing machines on the market today and replaces the DoALL 2013-V.

Band Speed: 55-5200 fpm (17-1585mpm)
AC Motor Drive: 2-hp (1.5kW)
Machine Weight (net): 1,250 lbs (567kg)
Throat, Band to Column: 20″ (508mm)
Maximum Work Height: 13″ (330mm)
Band Width Capacity: 1/8″ – 1″ (3.2-25.4mm)
Band Length: 154″ (3,910mm)

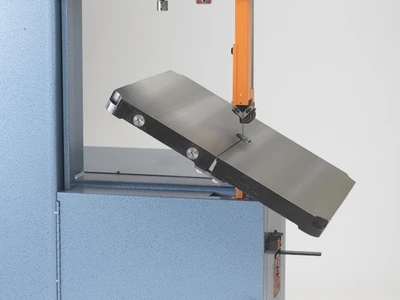

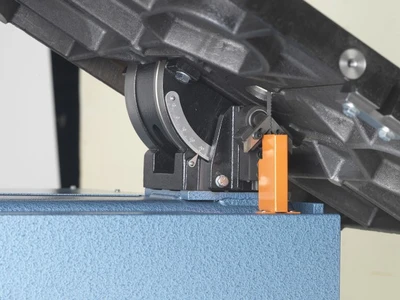

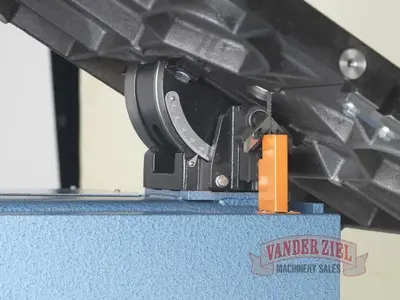

Table: 26″ x 26″ (660 x 660mm) Tilts 45°R, 10°L
Table to Floor Height: 39″ (990mm)
Table Capacity: 500 lbs (227kg)
Upper Wheel Adjustment: 3″ (75mm)
Wheels: Aluminum with crowned rubber tires
Height, Max: 81-1/4″ (2,064mm)
Floor Area Req.: 44.39″ x 55.08″ x 80.17″ (1128x1399x2036mm)

Standard Equipment:
Wrench for saw guides
Dual range transmission
Variable pulley drive
Band speed indicator
Band door interlocks
Band tension indicator
Job selector
One set of high-speed, insert-type guide blocks for bands 1/8″ – 1/2″
Chip pan
One set of steel guide inserts for bands 1/4″, 3/8″ and 1/2″
Wrench for table trunnion
Transmission oil
One DoALL bi-metal saw blade
Instruction and parts manuals on CD
