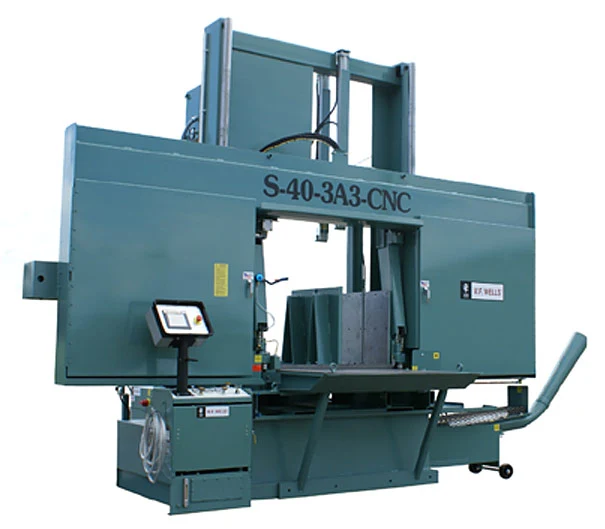

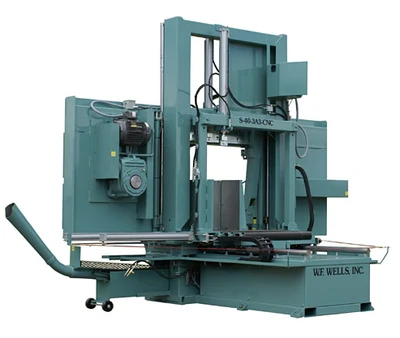

NEW W.F. WELLS S-40-3A3 CNC

W.F. Wells 40″ x 40″ CNC Fully Auotmatic Horizontal Saw, Model S-40-3A3 CNC – NEW

Machine Specifications
Capacity: 40″ High x 40″ Wide
Weight Capacity: 14,000 lbs
Blade Speed: 60 – 500 SFPM
Blade Size: 2″ X .063″ X 29′
Blade Guide: Spring Tensioned Carbide Blocks with Idle Roller Backup
Blade Tension: Hydraulic
Bandwheel Size: 42″
Vise: Hydraulic
Blade Drive: 15 HP, AC Vector Drive
Sawing Force: 0-1000 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 5 HP Motor
Work Height: 34″
Outfeed Table: 12″ X 41″
Vise Jaw Height: 24″
Barfeed Projection: 0-36″ CNC Controlled
Projection Accuracy: +/- .002″
Shuttle Indexes: Unlimited
Remnant End: 14″
Electrics: Wired to NFPA 79 Machine Tool Standards
Hydraulic Positioned Guide Arm, Powered Blade Brush, Blade Break/Stall Switch
CNC Programmable Controlled with Color Touch Screen
500+ Job Selection
Automatic Kerf Compensation
Shipping Weight: 12,200
Shipping Dimensions: 175’L x 102”W x 135”H
