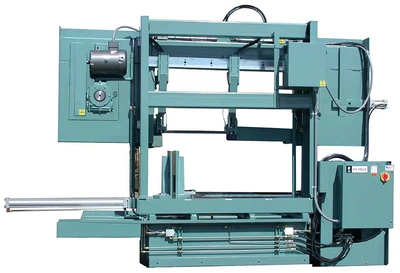

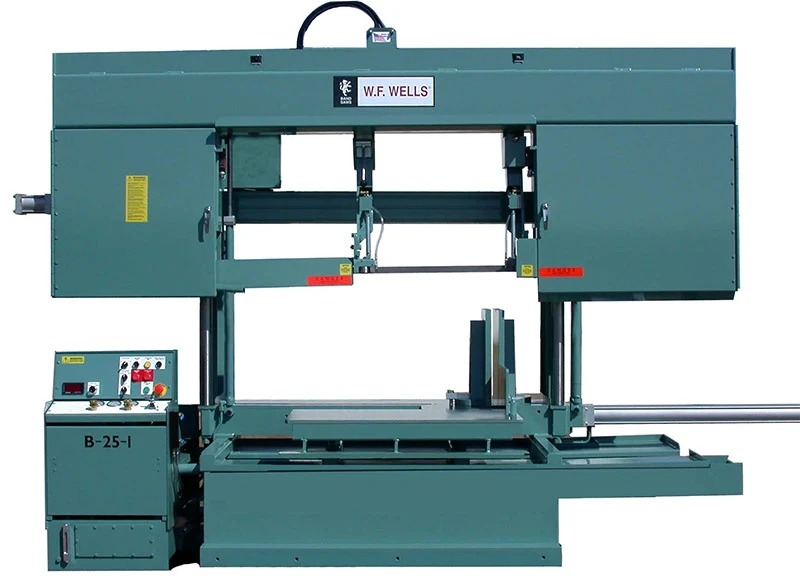

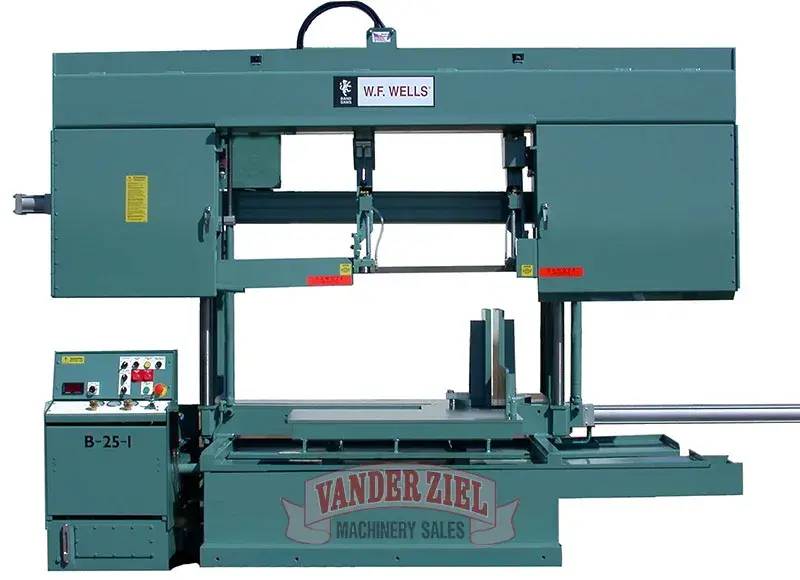

NEW W.F. WELLS B-25-1

W.F. Wells 25″ x 40″ Semi Automatic Horizontal Saw, Model B-25-1 – NEW

Machine Specifications
Capacity: Rectangular at 90° 25″ High X 40″ Wide, Round 25.5″ Diameter
Rectangular at 45° 25″ High X 24″ Wide, Round at 45° 24″ Diameter
Weight Capacity: 15,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 1¼” X .042″ X 22′-6″
Blade Guide: Carbide Blocks with Roller Backup
Blade Tension: Hydraulic
Bandwheel Size: 26″
Vise: Hydraulic
Blade Drive: 7½ HP, AC Vector Drive
Sawing Force: 0-750 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor
Work Height: 28″
Outfeed Table: 24’ X 40”
Blade Tension Indicator
Electronic Door Interlocks
Shipping Weight: 5,800 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 161″ Length x 52″ Width x 100″ Height
